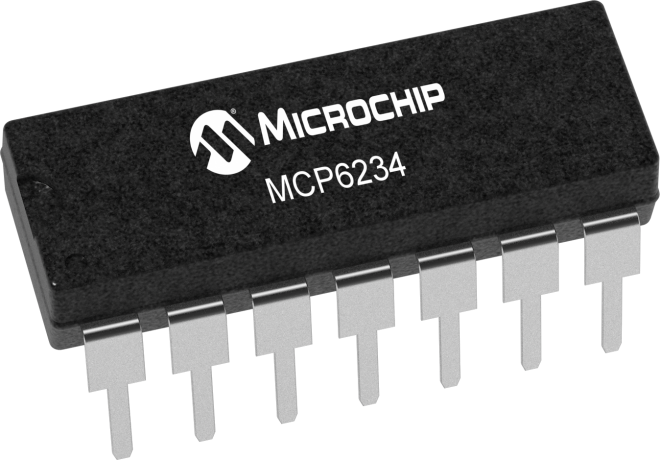

product primary image

MCP6234

Status: In Production

Features:

Gain Bandwidth Product: 300 kHz (typical)
Supply Current: IQ = 20 µA (typical)
Supply Voltage: 1.8V to 6.0V
Rail-to-Rail Input/Output
Extended Temperature Range: -40°C to +125°C

View More

Overview

Documents

Development Environment

RoHS Information

Buy Now

Device Overview

Summary

The Microchip Technology Inc. MCP6231/1R/1U/2/4 operational amplifiers (op amps) family has a 300 kHz gain bandwidth product and 65° (typical) phase margin. This family operates from a single supply voltage as low as 1.8V, while drawing 20 µA (typical) quiescent current. In addition, the MCP6231/1R/1U/2/4 family supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300mV to VSS – 300mV. These op amps are designed in one of Microchip’s advanced CMOS processes

Additional Features

Gain Bandwidth Product: 300 kHz (typical)
Supply Current: IQ = 20 µA (typical)
Supply Voltage: 1.8V to 6.0V
Rail-to-Rail Input/Output
Extended Temperature Range: -40°C to +125°C

Parametrics

Temp. Range (°C)

-40°C to +125°C

Vos Max (µV)

5000

# per Package

4

Iq Typical (µA)

20

Iq Max (µA)

30

GBWP (kHz)

300

Operating Voltage Range (V)

1.8 to 6.0

Device Description

Linear Op Amps

Input Voltage Noise Density (nV/rt(Hz))

52

PSRR Min (dB)

83

CMRR Min (dB)

61

Vos/Ta (uV/°C)

3

Ib (pA)

1

Aol (dB)

110

PM (deg)

65

Isc (mA)

23

Rail-to-Rail

In/Out

Unity Gain Stable

Yes

Slew Rate V/uS

0.15

Documents

Jump to:

×

Data Sheet

MCP6231/1R/1U/2/4 Data Sheet (English)

08/26/2009

822KB

Application Notes

Download All

AN1016 - Detecting Small Capacitive Sensors Using the MCP6291 and PIC16F690 Devices

04/13/2006

630KB

AN1177 - Op Amp Precision Design: DC Errors

03/12/2008

269KB

AN1228 - Op Amp Precision Design: Random Noise

09/02/2008

588KB

AN1297 - Microchip's Op Amp SPICE Macro Models

09/25/2009

280KB

AN1316 - Using Digital Potentiometers for Programmable Amplifier Gain

04/14/2010

441KB

AN679 - Temperature Sensing Technologies

08/10/1999

177KB

AN682 - Using Single Supply Operational Amplifiers in Embedded Systems

07/07/2011

169KB

AN684 - Single Supply Temperature Sensing with Thermocouples

08/10/1999

301KB

AN685 - Thermistors in Single Supply Temperature Sensing Circuits

07/27/2004

163KB

AN695 - Interfacing Pressure Sensors to Microchip's Analog Peripherals

04/13/2000

230KB

AN699 - Anti-Aliasing, Analog Filters for Data Acquisition Systems

07/26/1999

171KB

AN717 - Building a 10-Bit Bridge Sensing Circuit Using the PIC16C6XX and MCP601Operational Amplifier

04/03/2001

181KB

AN722 - Operational Amplifier Topologies and DC Specifications

04/03/2001

223KB

AN723 - Operational Amplifier AC Specifications and Applications

04/03/2001

341KB

AN737 - Using Digital Potentiometers to Design Low Pass Adjustable Filters

02/24/2004

277KB

AN792 - A Method to Determine How Much Power a SOT23 Can Dissipate in an Application

07/18/2001

523KB

AN844 - Simplified Thermocouple Interfaces and PICmicro® MCUs

07/21/2002

273KB

AN866 - Designing Operational Amplifier Oscillator Circuits For Sensor Applications

06/18/2003

358KB

AN895 - Oscillator Circuits for RTD Temperature Sensors

05/17/2004

418KB

AN897 - Thermistor Temperature Sensing with MCP6SX2 PGAs

05/31/2006

452KB

AN929 - Temperature Measurement Circuits for Embedded Applications

05/06/2004

448KB

AN951 - Amplifying High-Impedence Sensors ? Photodiode Example

07/25/2006

290KB

AN990 - Analog Sensor Conditioning Circuits - An Overview

03/28/2010

262KB

Driving Capacitive Loads With Op Amps - Driving Capacitive Loads With Op Amps

03/31/2009

493KB

TB077 - Advantage's of Microchip's Cascaded Op Amps

07/25/2006

85KB

Brochures

Analog & Interface Guide (Volume 2)

10/11/2005

1067KB

Automotive Recommended Product Selector Guide

09/16/2014

7598KB

PGA, Operational Amplifiers and Comparators Design Guide

12/08/2009

640KB

Quick Guide to Microchip Development Tools

07/12/2019

6019KB

Signal Chain Design Guide

11/10/2012

3229KB

Product Line Card

Analog & Interface Product Selector Guide

06/06/2019

4519KB

Spice Model

SPICE Model for MCP6231/1U/1R/2/4 Devices

02/05/2013

2KB

Video

MCP6XXX Amplifier Eval Board - 4 as an Integrator Demo Video

07/20/2010

37460KB

MCP6XXX as an Inverting Amplifier 1 Eval board Video

07/20/2010

37546KB

MCP6XXX Eval Board 1- Voltage Follower Video

07/20/2010

35976KB

MCP6XXX Eval board 2 as a Summing Amplifier Video

07/20/2010

35562KB

MCP6XXX Eval board 3 as a Difference Amplifier Video

07/22/2010

36624KB

Development Environment

Demo & Evaluation Boards

Demo & Evaluation Boards

MCP6S22 PGA Thermistor PICtail Demo Board

MCP6S22 PGA Thermistor PICtail Demo Board ( MCP6SX2DM-PCTLTH )

The MCP6SX2 PGA Thermistor PICtail Demo Board features the MCP6S22 and MCP6S92 Programmable Gain Amplifiers (PGA). These devices help:

Overcome the non-linear response of the on-board NTC thermistor
Provide multiplexing between two inputs; the other input can be any desired source. This opens the possibilities of temperature correcting another sensor,

...

Humidity Sensor PICtail Demo Bd

Humidity Sensor PICtail Demo Bd ( PIC16F690DM-PCTLHS )

This board supports the capacitive humidity sensor application note AN1016. It measures the capacitance of a relative humidity sensor plugged into the board. The on-board microcontroller sends the measured and calculated relative humidity (RH) to a PC for display.

The board can also measure small capacitors in different ranges of values using a dual slope integration method. The...

SOIC14 Eval Board

SOIC14 Eval Board ( SOIC14EV )

The 14-Lead SOIC/TSSOP/DIP Evaluation Board allows the system designer to quickly evaluate the operation of Microchip Technology’s devices in either SOIC, DIP, or TSSOP packages.

RoHS Information

MCP6234-E/P

0.953300

1.833333

14

PDIP

.300in

Matte Tin

e3

MCP6234-E/ST

0.060000

0.125000

14

TSSOP

4.4mm

Matte Tin

e3

MCP6234-E/STVAO

0.060000

0.125000

14

TSSOP

4.4mm

Matte Tin

e3

MCP6234T-E/ST

0.060000

0.246800

14

TSSOP

4.4mm

Matte Tin

e3

MCP6234T-E/STVAO

0.060000

0.246800

14

TSSOP

4.4mm

Matte Tin

e3

MCP6234-E/SL

0.143200

0.280702

14

SOIC

.150In(3.90mm)

Matte Tin

e3

MCP6234T-E/SL

0.143200

0.325000

14

SOIC

.150In(3.90mm)

Matte Tin

e3

To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
