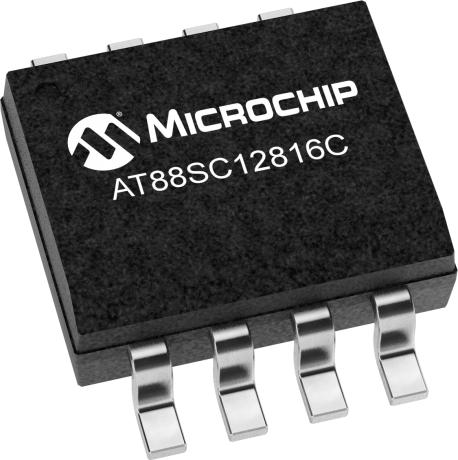

product primary image

AT88SC12816C

Status: Not Recommended for new designs

Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

High-performance secure memory providing 128Kbit of user memory with advanced security and cryptographic features built-in. The user memory is divided into sixteen 1-KByte zones, each of which may be individually assigned different security access rights or which can be effectively combined together to provide space for one to sixteen data files.

Parametrics
Name
Value
Key Size
64
Density Kb
128
Operating Voltage (Vcc)
2.7 - 5.5
Algorithm Type
Proprietary
Zones
16
Interface Type
2-WIRE; ISO7816 T=0

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT88SC12816C-WI
0.000000
1000.000
0
Wafer
Varies
-
-
AT88SC12816C-SU
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
AT88SC12816C-SU-T
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
AT88SC12816C-MJTG
0.104400
2250.000
0
SCC
12.6x11.4x0.58mm
NiAu
e4
AT88SC12816C-MJ
0.104400
2250.000
0
SCC
12.6x11.4x0.58mm
NiAu
e4
AT88SC12816C-PU
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
