Advanced Sensor Interfacing Digital Signal Controllers (DSCs)
dsPIC33 Digital Signal Controllers (DSCs) for Real-Time Sensor Interfacing and Control
Video
Advanced Sensor Interfacing Using dsPIC33 DSCs
Learn how our dsPIC33 Digital Signal Controllers (DSCs) address the challenges of implementing advanced sensor interfacing designs in automotive and industrial applications that require precision measurement, fast digital sensor signal processing, robustness, functional safety and security.

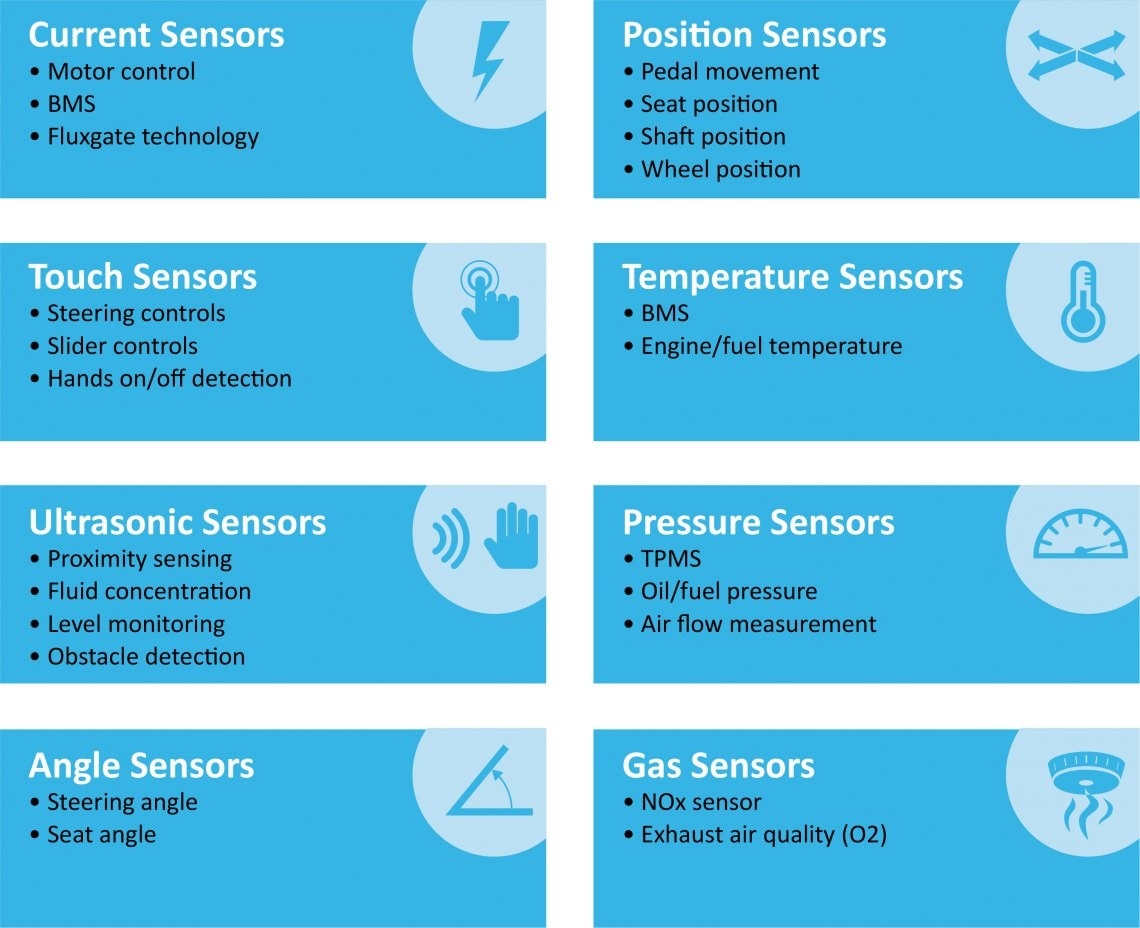

Target Applications
Our broad portfolio of ISO 26262/IEC 61508 functional safety compliant/ready dsPIC33 DSCs provides reliable operation in harsh environments. These DSCs include integrated hardware safety features; Failure Modes, Effects and Diagnostic Analysis (FMEDA) reports; safety manuals; and diagnostic software libraries to help you develop high-performance sensor applications that comply with the ISO 26262 and IEC 61508 standards.
Our automotive dsPIC33 DSCs offer a comprehensive ecosystem that includes support for AUTOSAR®, automotive functional safety, security, a variety of tools and third-party partner solutions.
Enable Edge AI/ML Inferencing for Sensing Applications
Leverage our high-performance DSP engine with hardware Floating-Point Unit (FPU), tightly coupled peripherals and optimized ML DSP routines to achieve on-device low latency inferencing and enable faster, smarter decision-making without relying on the cloud.
Our easy-to-use MPLAB® Machine Learning Development Suite ecosystem allows you to build efficient ML models based on raw sensor data and deploy them seamlessly to dsPIC33 DSCs, simplifying your intelligent sensing design journey.
Model-Based Designs With dsPIC33 DSCs
Simplify your embedded design with the MATLAB® Simulink®, open-source Scilab tools and our MPLAB® Device Blocks for Simulink that provide a Model-Based Design (MDB) platform.
Documentation
Application Notes
Reference Manuals
Supporting Collateral
Demo and Evaluation Boards

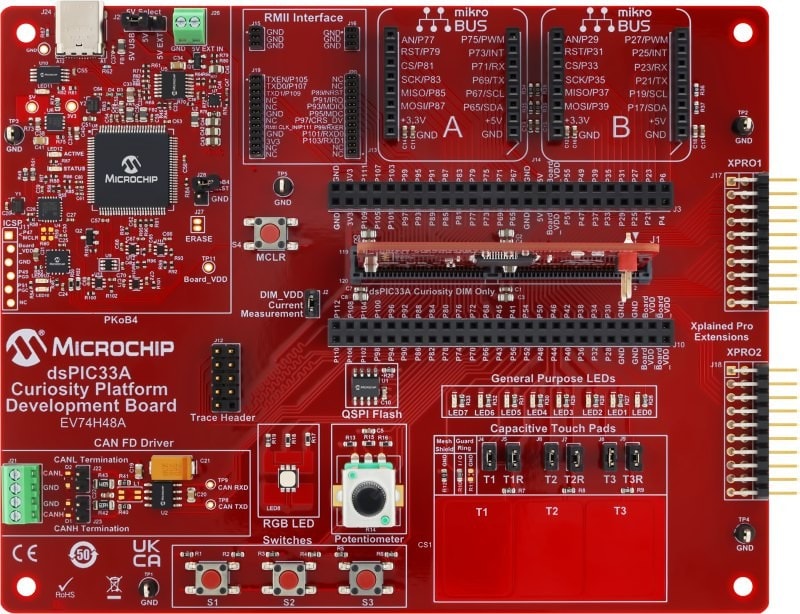

The Curiosity Platform Development Board (EV74H48A) is a full-featured development and demonstration platform enabling customers to explore the capabilities of the dsPIC33A Digital Signal Controller (DSC) family and also the PIC32A MCU family. The board operation requires the insertion of a 120-pin General Purpose Dual In-Line Module (DIM) containing a dsPIC33A DSC device or a PIC32A MCU device.

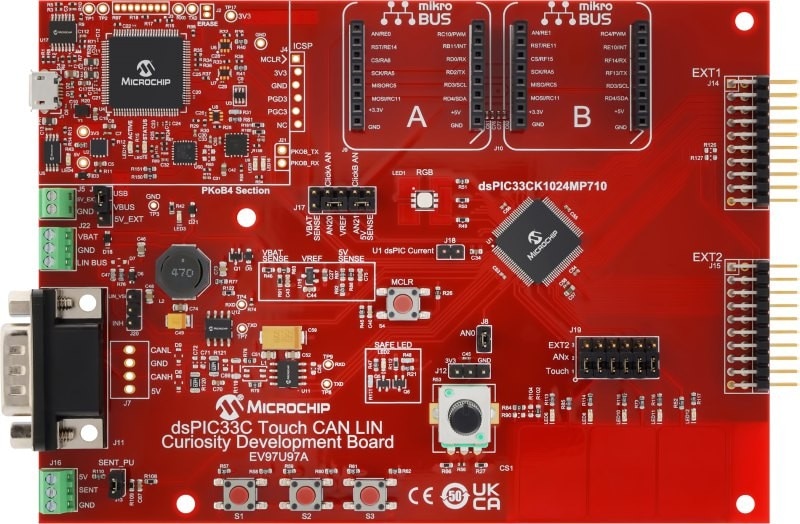

This board simplifies the evaluation of capacitive touch sensing using the dsPIC33C DSCs with core-independent touch capability or the device’s usage in automotive and industrial applications requiring CAN-FD, LIN or SENT communication. This board has on-board touch buttons, CAN/CAN FD, LIN and SENT transceivers, along with XPLAINED PRO and mikroBUS™ connectors to interface touch and other extension boards

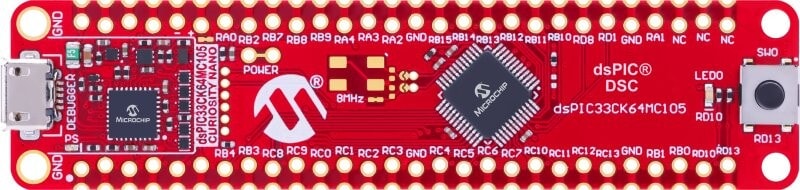

The dsPIC33CK64MC105 Curiosity Nano Evaluation Kit is a cost-effective hardware platform to evaluate the dsPIC33CK family of high-performance Digital Signal Controllers (DSCs). The board features the 100 MHz dsPIC33CK64MC105 DSC, which offers 64KB of ECC Flash, 8KB of RAM, a 12-bit/3.5 Msps ADC with 15 channels, 3 op amps, 1 analog comparator, a 12-bit DAC, 4x2 high-speed PWMs with 2 ns resolution and several Core Independent Peripherals (CIPs). The dsPIC33CK ‘MC1’ family is ideal for the design of automotive, motor control, sensor interfacing and control, high-performance, functional safety, and robust applications.

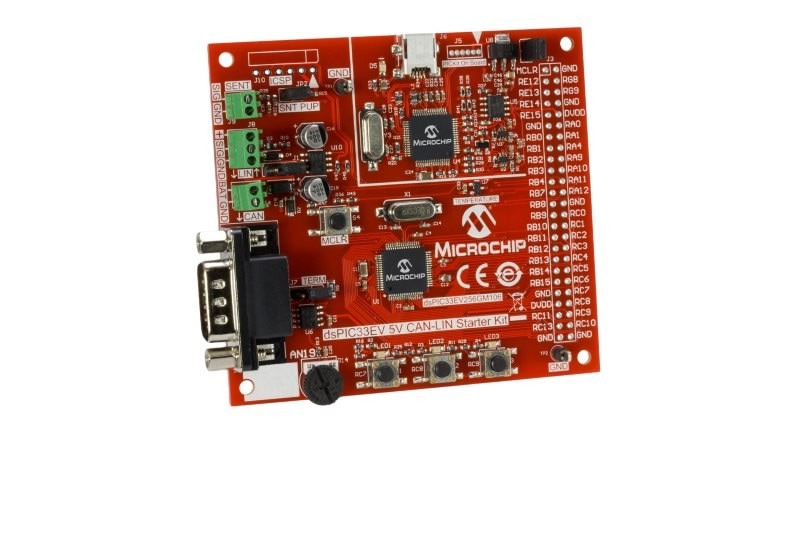

The dsPIC33EV 5V CAN-LIN starter Kit features the dsPIC33EV256GM106 Digital Signal Controller (DSC) for automotive and motor control applications.
Demos
Automotive Electronic Control Unit (ECU) Demonstration Application
In this demonstration application, we showcase the usage of the high-performance dsPIC33C DSC combined with the TA100 CryptoAutomotive® security IC to meet the security and AUTOSAR® requirements for various ECU functions.

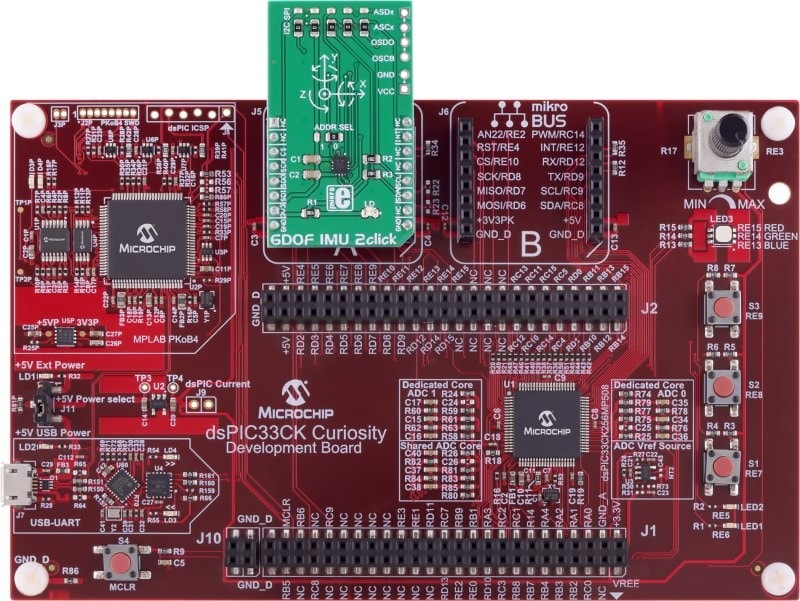

Machine-Learning-Based Gesture Recognition Demo
This demonstration application showcases machine learning-based gesture recognition with dsPIC33 DSCs.
