Part Number: HV9922DB2

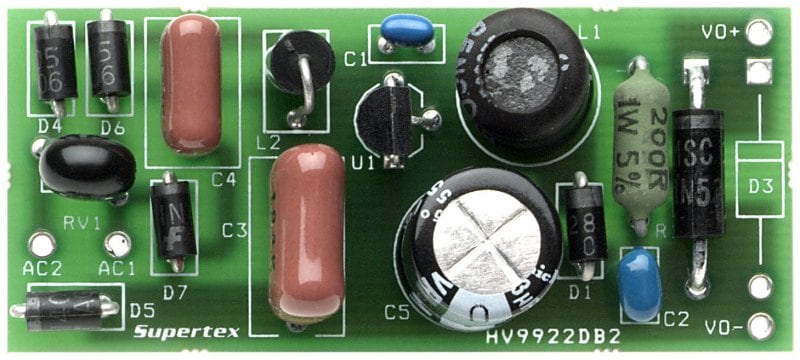

HV9922DB2 - OFFLINE, NON-ISOLATED, 23V, 45MA AUXILIARY POWER SUPPLY

Please download the user guide for more information.
View Purchasing Options
Contact Us

Overview

The HV9922DB2 is a universal input, offline, non-isolated auxiliary power supply using the HV9922 constant current switching regulator IC. The output voltage is regulated to 23V +/-5% and is referenced to the negative side of the diode bridge rectifier (i.e. ground of the rectified DC voltage).
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
HV9922DB2 User Guide Download 99564d06-c68f-4f84-a949-b38153ec9a4f
