Overview

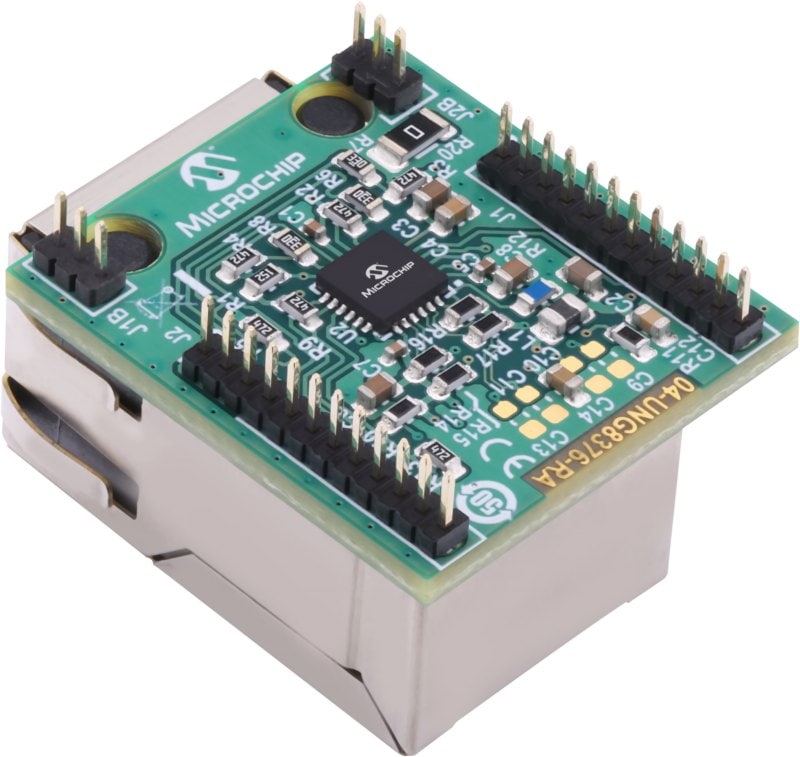

The LAN8742A Daughter Board (EV55L82A) enables Ethernet communication with a variety of Microchip starter kits.
This daughter board is designed specifically to be used with the PIC32 Ethernet Starter Kit II (DM320004-2) or the PIC32MZ Embedded Connectivity with Floating Point Unit (EF) Starter Kit (DM320007); however, it can also be used with other Microchip development hardware.
- 22-pin header for connecting the board into compatible PIC32 starter kits
- RMII interface with MDC/MDIO management interface for register configuration
- Fast start-up and link
- Loopback modes for diagnostics
- LAN8742A Daughter Board
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| LAN8742A Daughter Board Information Sheet | Information Sheets | Download | ||
| LAN8742A PHY Schematics | Schematics | Download | ||
| LAN8742A RMII PCB | PCB Files | Download | ||
| LAN8742A A1 Title Schematic Doc | Schematics | Download | ||
| EVB-LAN8742A PCB | PCB Files | Download |
