If you need to monitor heat sources in your application, our single- and multi-channel temperature sensor ICs have the features and flexibility to meet your specific design requirements.

Single-Channel Temperature Sensor Options

Also known as local channel digital temperature sensors, single-channel digital temperature sensors can be used in a variety of applications that require the measurement of local temperatures as an integral part of the system’s function and/or reliability. Available in I2C and SPI communication versions, our local channel digital temperature sensors feature flexible, user-programmable internal registers to configure the temperature sensor's performance and response to high and low temperature conditions. They also include dedicated alarm output activates if the temperature measurement exceeds the user-defined temperature and fault count limits.

  • Flexible and easy to integrate into almost any system

  • Maximum temperature accuracy up to ±0.5°C

  • Operating voltages down to 1.7V

  • Low power consumption to optimize power savings

  • Available in ultra-small packages for space-constrained applications

  • Communications

  • Personal computers and servers

  • Consumer

  • Environmental

  • Industrial

  • Instrumentation

  • Medical devices

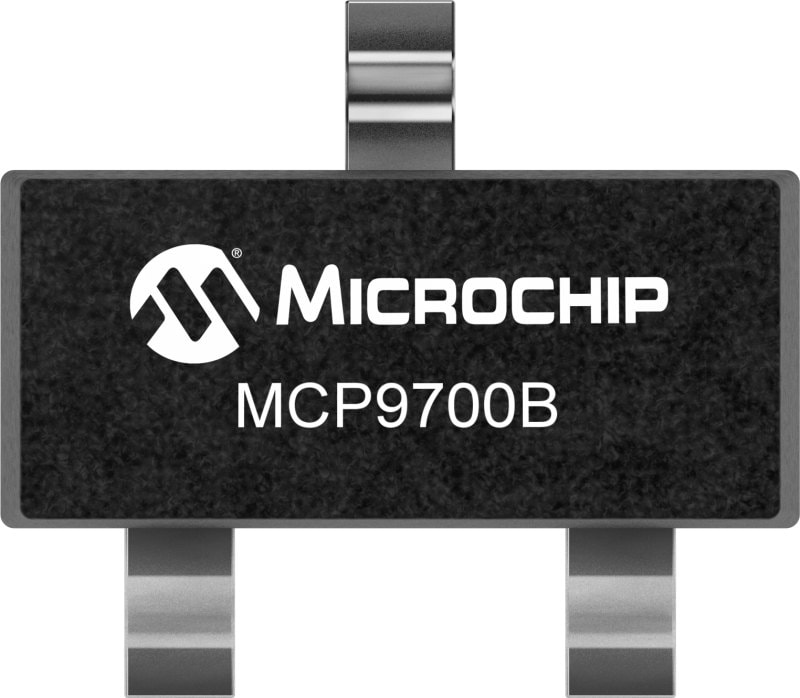

Analog Output Temperature Sensors

Analog output temperature sensors, also known as voltage output temperature sensors, feature low power consumption, good linearity and temperature accuracy as high as ± 0.5°C across the entire temperature operating range as wide as –40 to +125°C. These devices output voltages that interface well with an available stand-alone ADC or ADC channel in an MCU.  They are well suited for a variety of applications including automotive, home appliances, power regulators, portable equipment and battery packs.

  • Low operating current: 6µA typical

  • Extended temperature range: −40−C to +125−C

  • Available in 10 mV/−C and 19.5 mV/°C linear temperature slopes

  • Small packaging, including 3-pin SOT-23

Temperature Switches

Temperature switches, also known as logic output temperature sensors, simplify designs that require over and under temperature detection with their flexible factory-set trip points and pin-selectable hysteresis. Additional features include on/off logic control, low power consumption, small package sizes and ±0.5°C typical threshold temperature accuracy. They are excellent options for a number of applications including motor drives, RF power amplifiers, fan control and power supplies.

  • ±0.5°C typical threshold accuracy

  • Operating supply voltages from 2.7V to 18V

  • Dual trip points available on select devices

  • Small packaging options available including SOT-23



Multi-Channel Temperature Sensors

Multi-channel temperature sensors are used for monitoring and accurately measuring temperatures of multiple heat sources across distances of up to hundreds of feet. Also known as remote temperature sensors, these integrated devices are combined with inexpensive transistors to reduce costs, maintain accuracy and simplify monitoring of systems such as servers, networking and LCD projectors. They can also be connected to substrate diode pins and use beta compensation to measure temperatures on advanced processing devices such as CPUs, GPUs, FPGA and ASICs.

  • Up to eight channels of monitoring for BOM savings

  • Operating voltages down to 1.62V for 1.8V systems

  • Three-channel monitoring in 2 x 2 mm or five-channel monitoring in a 2 × 2.5 mm packages for space-constrained applications

  • Off-board or long trace capability for flexible design

  • Internet of Things (IoT)

  • Industrial

  • Computing, SSD and data centers

  • Portable electronics

  • Battery-operated devices

  • Appliances

Are You Working on an Automotive Application?


The low-power, small packages, cost effective and high accuracy performance of our AEC-Q100-qualified temperature sensors make them excellent choices for automotive designs.

Temperature Sensors


View All Parametrics
Product Status Automotive Recommended Description No Temps Monitored Typical Accuracy (°) Max. Accuracy @ 25° (°) Temp. Range (°) Vcc Range (V) Max. Supply Current (µA) Resolution (bits) Alert/THERM Hardware Shutdown Internal Zone Remote Zone Data Width CRIT Output No of Device per I2C Bus Accuracy Oja (C/W) Packages 5K Pricing
AT30TS00 In Production No SMBus/I2C Temperature Sensor 1 1.0 2.0 -20 - 125 +2.7 - +3.6 500 11 1 0 0 False 8/WDFN $0.62
AT30TS74 In Production No SMBus/I2C Temperature Sensor 1 1 2 -40 - +125 +1.7 - +5.5 160 12 0 0 False 8 5/WLCSP, 4/WLCSP, 8/UDFN, 8/MSOP, 8/SOIC $0.47
AT30TS750A In Production No SMBus/I2C Temperature Sensor 1 0.5 1 -55 - +125 +1.7 - +5.5 225 12 0 0 False 8 8/UDFN, 8/MSOP, 8/SOIC $0.87
AT30TS75A In Production No SMBus/I2C Temperature Sensor 1 0.5 1 -55 - +125 +1.7 - +5.5 225 12 0 0 False 8 8/UDFN, 8/MSOP, 8/SOIC $0.54

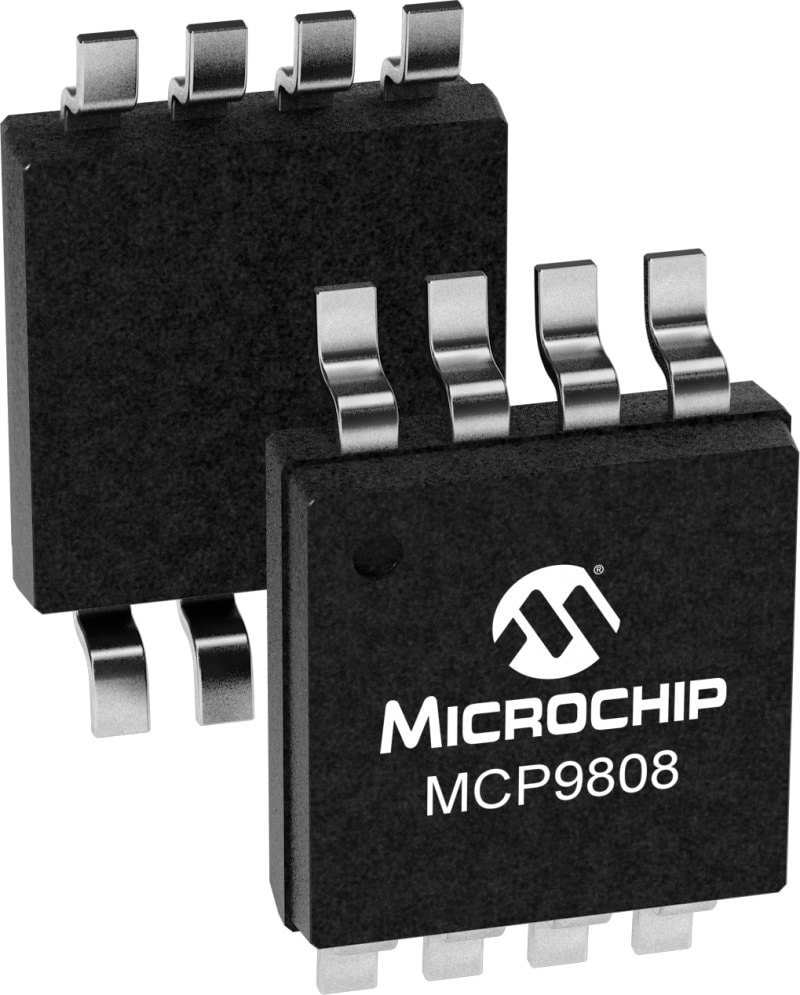

MCP9808 In Production No SMBus/I2C Temperature Sensor 1 .25 .5 -40 - 125 2.7 - 5.5 200 12 1 0 0 False 8 8/MSOP, 8/DFN $0.84
TC74 In Production No SMBus/I2C Temperature Sensor 1 0.5 2 -40 - +125 +2.7 - +5.5 200 8 No 5/SOT-23, 5/TO-220 $0.63
TCN75 Mature Product Consider: TCN75A No SMBus/I2C Temperature Sensor 1 0.5 3 -55 - +125 +2.7 - +5.5 1000 9 1 8/MSOP, 8/SOIC $0.94
TCN75A In Production No SMBus/I2C Temperature Sensor 1 0.5 3 -40 - +125 +2.7 - +5.5 500 9 - 12 1 8/MSOP, 8/SOIC $0.51
MCP9800 In Production Yes SMBus/I2C Temperature Sensor 1 0.5 1 -55 - +125 +2.7 - +5.5 200 9 - 12 1 0 0 5/SOT-23 $0.86
MCP9801 In Production Yes SMBus/I2C Temperature Sensor 1 0.5 1 -55 - +125 +2.7 - +5.5 200 9 - 12 1 8/MSOP, 8/SOIC $0.81
MCP9802 In Production Yes SMBus/I2C Temperature Sensor 1 0.5 1 -55 - +125 +2.7 - +5.5 200 9 - 12 1 5/SOT-23 $0.91
MCP9803 In Production Yes SMBus/I2C Temperature Sensor 1 0.5 1 -55 - +125 +2.7 - +5.5 200 9 - 12 1 8/MSOP, 8/SOIC $0.87
MCP9804 In Production Yes SMBus/I2C Temperature Sensor 1 0.25 1 -40 - +125 +2.7 - +5.5 200 12 1 8/MSOP, 8/DFN $1.21
MCP9805 In Production Yes SMBus/I2C Temperature Sensor 1 2 3 -40 - +125 +3.0 - +3.6 200 10 1 8/DFN, 8/TSSOP $0.62
MCP9843 In Production Yes SMBus/I2C Temperature Sensor 1 1.0 2.0 -20 - +125 +2.7 - +3.6 500 11 1 0 0 False 8/DFN, 8/TDFN, 8/TSSOP $0.62
AT30TSE002A In Production No SMBus/I2C Temperature Sensor with EEPROM 1 0.5 1 -20 - +125 +2.7 - +3.6 500 11 0 0 False 8 8/WDFN $0.73
AT30TSE002B In Production No SMBus/I2C Temperature Sensor with EEPROM 1 0.5 1 -20 - +125 +2.7 - +3.6 500 11 0 0 False 8 8/WDFN $0.73
AT30TSE004A In Production No SMBus/I2C Temperature Sensor with EEPROM 1 0.5 1 -20 - 125 +1.7 - +3.6 500 11 0 0 False 8 8/UDFN, 8/WDFN $0.73
AT30TSE752A In Production No SMBus/I2C Temperature Sensor with EEPROM 1 0.5 1 -55 - +125 +1.7 - +5.5 225 12 0 0 False 8 8/UDFN, 8/MSOP, 8/SOIC $0.99
AT30TSE754A In Production No SMBus/I2C Temperature Sensor with EEPROM 1 0.5 1 -55 - +125 +1.7 - +5.5 225 12 0 0 False 8 8/UDFN, 8/MSOP, 8/SOIC $1.07

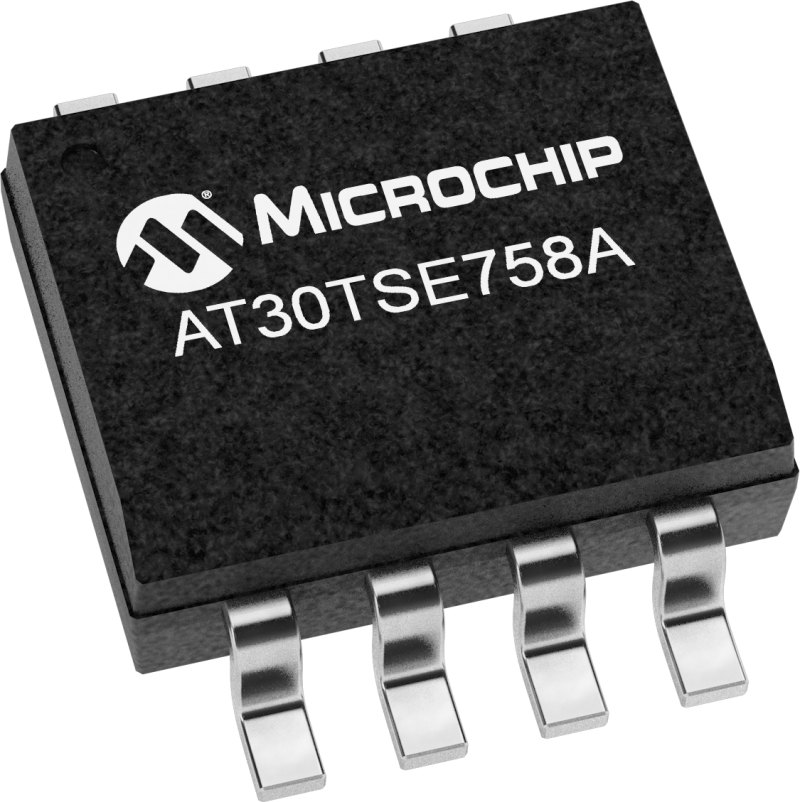

AT30TSE758A In Production No SMBus/I2C Temperature Sensor with EEPROM 1 0.5 1 -55 - +125 +1.7 - +5.5 225 12 0 0 False 8 8/UDFN, 8/MSOP, 8/SOIC $1.15
EMC1501 Mature Product Consider: MCP98243 No SMBus/I2C Temperature Sensor with EEPROM 1 0.5 1 -40 - +125 +1.7 - +3.6 500 12 1 8/TDFN Call for pricing
MCP98208 In Production No SMBus/I2C Temperature Sensor with EEPROM 1 .25 .5 -20 - 60 2.7 - 5.5 200 11 1 0 0 False 8 8/TDFN Call for pricing
MCP98242 In Production Consider: MCP98243 Yes SMBus/I2C Temperature Sensor with EEPROM 1 2 3 -40 - +125 +3.0 - +3.6 200 10 1 8/DFN, 8/TDFN, 8/UDFN, 8/TSSOP Call for pricing
MCP98243 In Production Yes SMBus/I2C Temperature Sensor with EEPROM 1 0.5 3 -40 - +125 +3.0 - +3.6 200 11 1 8/DFN, 8/TDFN, 8/UDFN, 8/TSSOP $0.73
MCP98244 In Production Yes SMBus/I2C Temperature Sensor with EEPROM 1 0.2 1 -40 - +125 +2.2 - +3.6 500 11 0 0 False 8/TDFN $0.73
MCP9844 In Production Yes SMBus/I2C Temperature Sensor with EEPROM 1 0.2 1 -40 - +125 +1.7 - +3.6 500 1 8/TDFN $0.65
TC72 In Production No SPI Temperature Sensor 1 0.5 2 -55 - +125 +2.7 - +5.5 250 10 1 8/MSOP, 8/DFN $0.66
TC77 In Production No SPI Temperature Sensor 1 0.5 1 -55 - +125 +2.7 - +5.5 250 12 No 8/SOIC, 5/SOT-23 $0.66
View All Parametrics
Product Status Automotive Recommended Description No Temps Monitored Typical Accuracy (°) Max. Accuracy @ 25° (°) Temp. Range (°) Vcc Range (V) Max. Supply Current (µA) Resolution (bits) Alert/THERM Hardware Shutdown Internal Zone Remote Zone Data Width CRIT Output No of Device per I2C Bus Accuracy Oja (C/W) Packages 5K Pricing
MIC184 In Production No 2 1 2 -55 - 125 2.7 - 5.5 500 9 1 1 9 False ±3% 152, 206 8/MSOP, 8/SOIC $1.32
MIC280 In Production No 2 1 2 -55 - 125 3 - 3.6 400 1 1 1 12 True 8 ±1% 230 6/SOT-23 $0.46
MIC281 In Production No 2 1 3 -55 - 125 3 - 3.6 400 8 0 1 8 False 8 ±3% 230 6/SOT-23 $0.39
MIC284 In Production No 2 1 2 -55 - 125 2.7 - 5.5 750 8 1 1 1 8 True 8 ±3% 152, 206 8/MSOP, 8/SOIC $0.63
MIC384 In Production No 3 1 2 -55 - 125 2.7 - 5.5 750 8 1 1 2 8 False 8 ±3% 152, 206 8/MSOP, 8/SOIC $0.80
EMC1046 In Production No SMBus/I2C Multi Temp Sensor with Hottest of Zones 6 0.25 1 -40 - +125 +3.0 - +3.6 395 11 No 10/MSOP $1.24
EMC1047 In Production No SMBus/I2C Multi Temp Sensor with Hottest of Zones 7 0.25 1 -40 - +125 +3.0 - +3.6 395 11 No 10/MSOP $1.35
EMC1428 In Production No SMBus/I2C Multi Temp Sensor with Hottest of Zones 8 0.25 1 -40 - +125 +3.0 - +3.6 450 11 1 1 16/QFN $0.96
EMC1438 In Production No SMBus/I2C Multi Temp Sensor with Hottest of Zones 8 0.25 1 -40 - +125 +3.0 - +3.6 450 11 1 1 16/QFN $0.96
EMC1422 In Production No SMBus/I2C Multi Temp Sensor with Shutdown 2 0.25 1 -40 - +125 +3.0 - +3.6 430 11 1 1 8/MSOP $0.67
EMC1423 In Production No SMBus/I2C Multi Temp Sensor with Shutdown 3 0.25 1 -40 - +125 +3.0 - +3.6 430 11 1 1 10/MSOP $0.79
EMC1424 In Production No SMBus/I2C Multi Temp Sensor with Shutdown 4 0.25 1 -40 - +125 +3.0 - +3.6 430 11 1 1 10/MSOP $0.90
EMC1072 In Production No SMBus/I2C Multi Temperature Sensor 2 0.25 1 -40 - +125 +3.0 - +3.6 430 11 2 8/MSOP $0.45
EMC1073 In Production No SMBus/I2C Multi Temperature Sensor 3 0.25 1 -40 - +125 +3.0 - +3.6 430 11 2 10/MSOP $0.56
EMC1074 In Production No SMBus/I2C Multi Temperature Sensor 4 0.25 1 -40 - +125 +3.0 - +3.6 430 11 2 10/MSOP $0.73
EMC1402 In Production No SMBus/I2C Multi Temperature Sensor 2 0.25 1 -40 - +125 +3.0 - +3.6 430 11 2 8/MSOP $0.51
EMC1403 In Production No SMBus/I2C Multi Temperature Sensor 3 0.25 1 -40 - +125 +3.0 - +3.6 430 11 2 10/MSOP, 10/VDFN $0.62
EMC1404 In Production No SMBus/I2C Multi Temperature Sensor 4 0.25 1 -40 - +125 +3.0 - +3.6 430 11 2 10/MSOP $0.79
EMC1412 In Production No SMBus/I2C Multi Temperature Sensor 2 0.25 1 -40 - +125 +3.0 - +3.6 430 11 2 8/MSOP, 8/TDFN $0.51
EMC1413 In Production No SMBus/I2C Multi Temperature Sensor 3 0.25 1 -40 - +125 +3.0 - +3.6 430 11 2 10/MSOP, 10/VDFN $0.62
EMC1414 In Production No SMBus/I2C Multi Temperature Sensor 4 0.25 1 -40 - +125 +3.0 - +3.6 430 11 2 10/MSOP, 10/VDFN $0.79
EMC1812 In Production Consider: EMC1812 No SMBus/I2C Multi Temperature Sensor 2 0.25 1 -40 - +125 +1.62 - +3.60 50 11 2 0 0 False 8/WDFN $0.45
EMC1813 In Production No SMBus/I2C Multi Temperature Sensor 3 0.25 1 -40 - +125 +1.62 - +3.60 50 11 2 0 0 False 10/VDFN $0.56

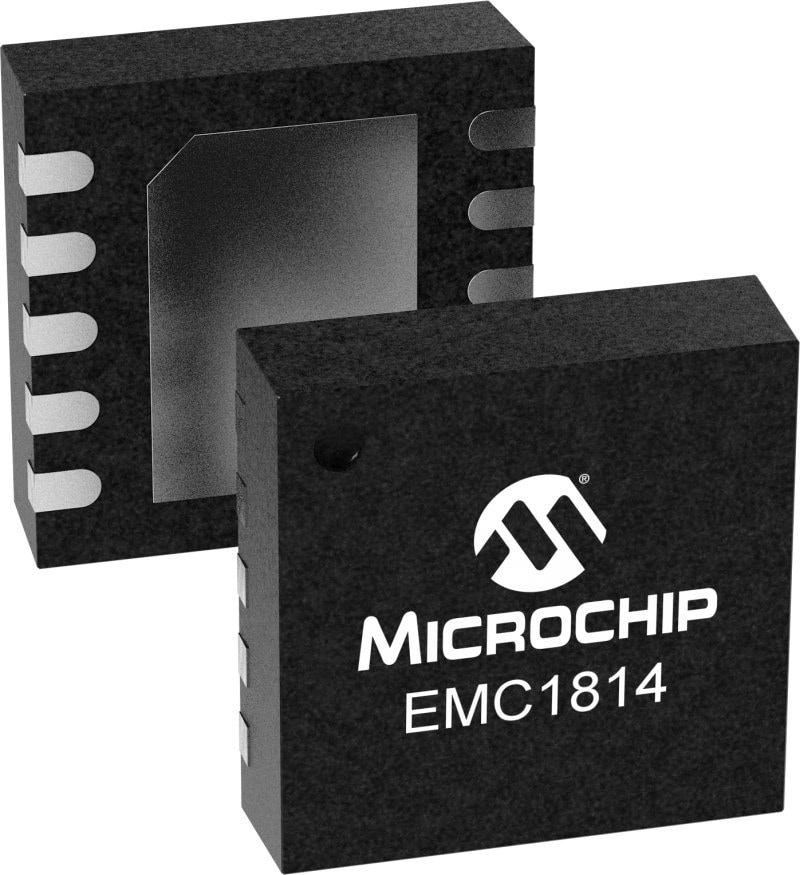

EMC1814 In Production No SMBus/I2C Multi Temperature Sensor 4 0.25 1 -40 - +125 +1.62 - +3.60 50 11 2 0 0 False 10/VDFN $0.67
EMC1815 In Production No SMBus/I2C Multi Temperature Sensor 5 0.25 1 -40 - +125 +1.62 - +3.60 50 11 2 0 0 False 10/VDFN $0.79
EMC1822 In Production Consider: EMC1812 No SMBus/I2C Multi Temperature Sensor 2 0.25 1 -40 - +125 +1.62 - +3.60 50 11 1 1 0 0 False 8/WDFN $0.45
EMC1823 In Production Consider: EMC1813 No SMBus/I2C Multi Temperature Sensor 3 0.25 1 -40 - +125 +1.62 - +3.60 50 11 1 1 0 0 False 10/VDFN $0.56
EMC1824 In Production Consider: EMC1814 No SMBus/I2C Multi Temperature Sensor 4 0.25 1 -40 - +125 +1.62 - +3.60 50 11 1 1 0 0 False 10/VDFN $0.67
EMC1825 In Production Consider: EMC1815 No SMBus/I2C Multi Temperature Sensor 5 0.25 1 -40 - +125 +1.62 - +3.60 50 11 1 1 0 0 False 10/VDFN $0.79

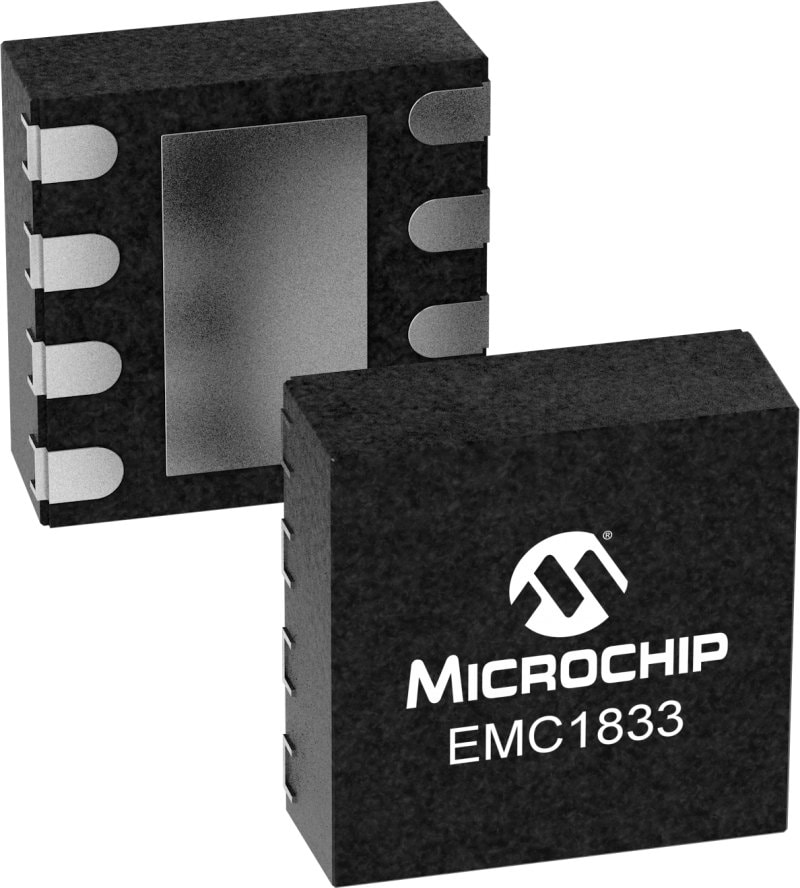

EMC1833 In Production No SMBus/I2C Multi Temperature Sensor 3 0.25 1 -40 - +125 +1.62 - +3.60 50 11 2 0 0 False 8/WDFN $0.62
EMC1843 In Production Consider: EMC1833 No SMBus/I2C Multi Temperature Sensor 3 0.25 1 -40 - +125 +1.62 - +3.60 50 11 1 1 0 0 False 8/WDFN $0.62
MCP9902 In Production No SMBus/I2C Multi Temperature Sensor 2 0.25 1 -40 - +125 +3.0 - +3.6 430 11 2 8/WDFN $0.46
MCP9903 In Production No SMBus/I2C Multi Temperature Sensor 3 0.25 1 -40 - +125 +3.0 - +3.6 430 11 2 10/VDFN $0.57
MCP9904 In Production No SMBus/I2C Multi Temperature Sensor 4 0.25 1 -40 - +125 +3.0 - +3.6 430 11 2 10/VDFN $0.72
