Our series and shunt voltage references, with options for high-accuracy, low-noise and general-purpose use, can be implemented in many types of data conversion and signal conditioning applications including data acquisition systems, measurement devices and sensors, industrial controls and medical devices. We offer a family of devices with 0.1% initial accuracy, devices that support a wide selection of voltages, from 1V to 4.096V, and industry-standard solutions to meet your design’s requirements.

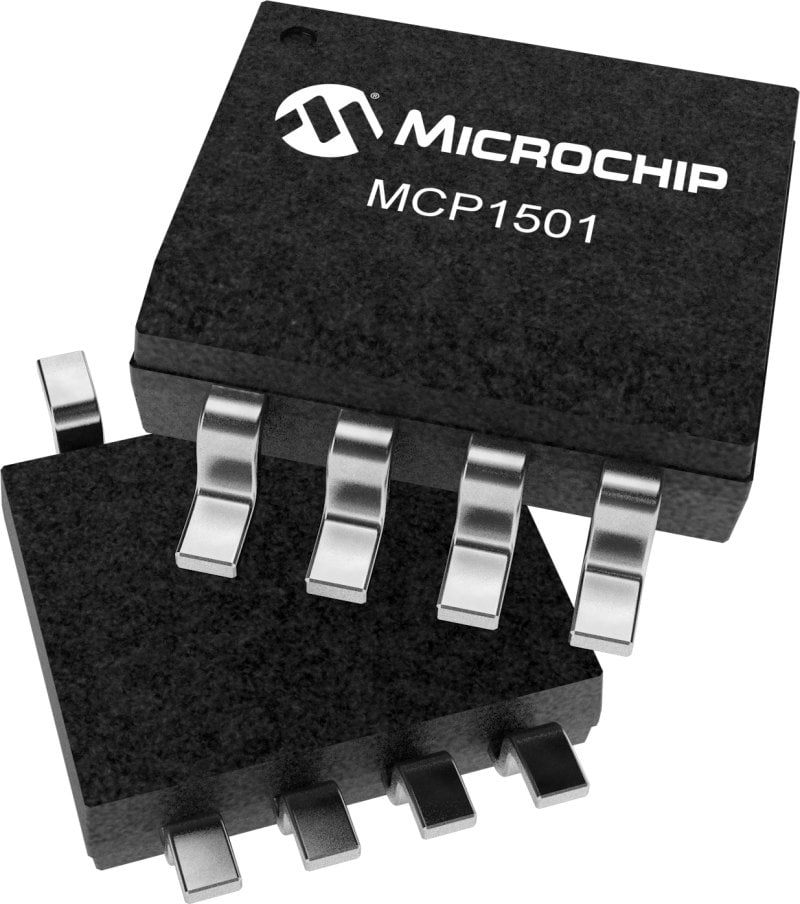

MCP1501

High-Precision Buffered Voltage Reference

  • Load regulation: 40 ppm/mA
  • Low operating current: 140 µA
  • Eight voltage options
  • Small packages

LM4040

Precision Micropower Shunt Voltage Reference

  • No output capacitor required
  • Fixed voltages: 2.5V, 4.096V and 5V
  • Small SOT-23 package

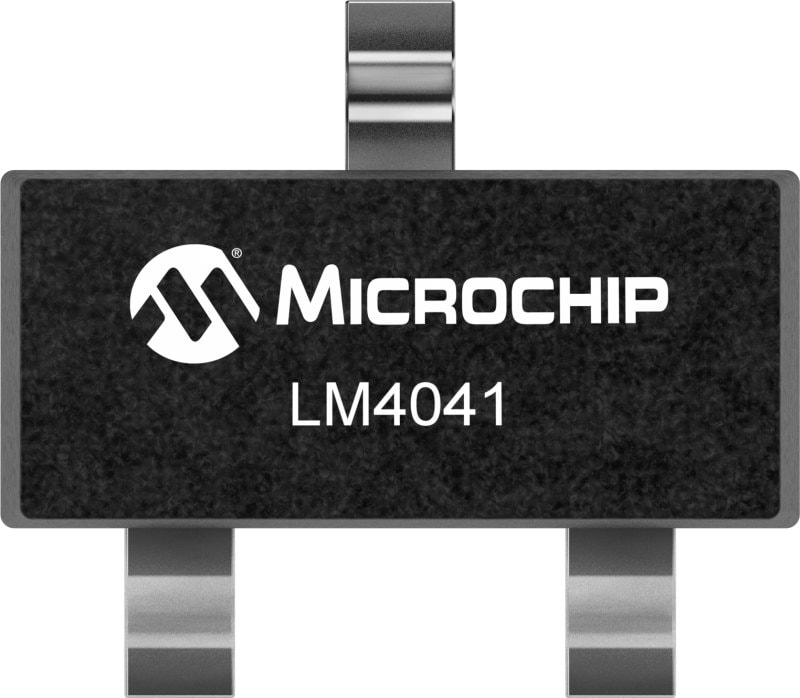

LM4041

Precision Micropower Shunt Voltage Reference

  • Tolerates capacitive loads
  • Fixed voltage: 1.225V
  • Adjustable voltages

Companion Products


Digital-to-Analog Converters (DACs)

Looking for a complete digital-to-analog solution for your precision-controlled conversion application? Check out our wide selection of DACs.

Analog-to-Digital Converters (ADCs)

Looking for a complete analog-to-digital solution for your data conversion application? Check out our wide selection of ADCs.

Voltage References


We're having trouble displaying information on this page right now. Please visit our Parametric Chart tool to search these products and their data.

Documentation


Data Sheets


Title Download
MCP1525/MCP1541 Datasheet Download
MCP1501 Datasheet Download
LM4040/LM4041 Datasheet Download

Reference Designs


Title Part Number
Device Supported
MCP3421 Weight Scale MCP3421DM-WS MCP3421, MCP6V07
MCP3421 Battery Fuel Gauge MCP3421DM-BFG MCP3421, MCP3422, MCP1702, PIC18F4550
MCP355X Tiny Application Sensor MCP355XDM-TAS MCP3550, MCP3551, MCP3553
RTD Temp Sensor TMPSNS-RTD1 MCP3301, MCP41010, MCP6S26, PIC18F2550
RTD Reference Design Board TMPSNSRD-RTD2 MCP3551, MCP9804

BMS Applications - ADCs, Voltage References and Temperature Sensors
