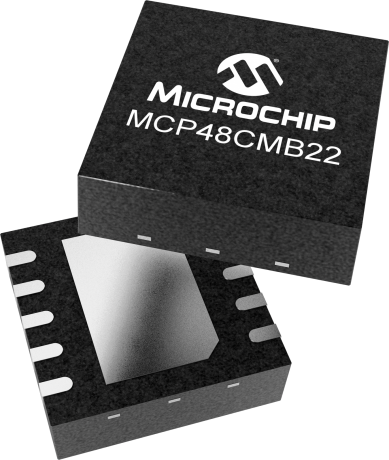

MCP48CMB22 is a dual channel, 12-bit, buffered voltage output Digital-to-Analog Converter
(DAC) with MTP memory and an SPI Compatible Serial Interface. This device provides four different voltage
reference options: device VDD, external VREF (Buffered or unbuffered) and
internal bandgap. It offers 1 LSB Integral Non-Linearity (INL) with low power
consumption and fast settling time of 6µs. This device has integrated MTP
memory that can be written up to 32 times, for reach specific register. It is
suitable for consumer and industrial applications, such as set point or offset
trimming, sensor calibrations and motor control applications.
resolutions and number of output channels, please check out our other parts in
the MCP48CMBxx family.
The MSOP-10 and MSOP-8 Evaluation Board is a bond-out board that allows the system designer to quickly evaluate the operation of Microchip Technology’s devices in any of the following packages:
• MSOP (8- and 10-pin )
• DIP (10 pin)
• The Evaluation Board can be used as a MSOP- to DIP- converter
• The kit contains 10 blank...
