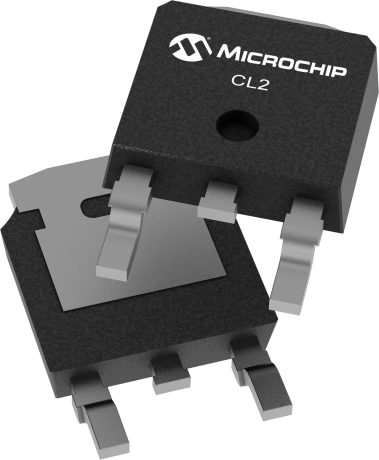

CL2

Simple 90V, 20mA, Temperature Compensated, Constant-Current LED Driver IC

Status: In Production

Features:

  • 5.0 to 90V operating range (VA-B)
  • 20mA ±10% at 5.0 - 90V
  • 0.01%/°C typical temperature coefficient
  • Available in TO-243AA (SOT-89), TO-252 (D-PAK), & TO-92 packages
  • Can be paralleled for higher current
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

CL2 is a high voltage, temperature compensated, constant current source. The device is trimmed to provide a constant current of 20mA±10% at an input voltage of 5.0 - 90V. The device can be used as a two terminal constant current source or constant current sink. A typical application for the CL2 is to drive LEDs with a constant current of 20mA. Multiple CL2s can also be used in parallel to provide higher currents such as 40mA, 60mA or 80mA. The device is available in TO-243AA (SOT-89), TO-252 (D-PAK), and TO-92 packages.

Additional Features
  • 5.0 to 90V operating range (VA-B)
  • 20mA ±10% at 5.0 - 90V
  • 0.01%/°C typical temperature coefficient
  • Available in TO-243AA (SOT-89), TO-252 (D-PAK), & TO-92 packages
  • Can be paralleled for higher current
Parametrics
Name
Value
+Vin min (V)
5.0
+Vin max (V)
90
Vout min (V)
5.0
Vout max (V)
90
Output Current (mA)
20
Dimming
External FET
Parallelable
Yes
Package
TO-252, TO-92, SOT-89
