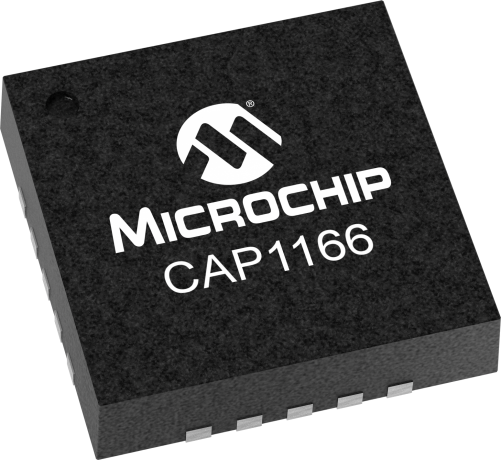

CAP1166

Status: In Production

Features:

  • 6 Capacitive Touch Sensor Inputs
  • 6 LED Driver Outputs
  • Programmable sensitivity
  • Automatic recalibration
  • Individual thresholds for each button
  • Proximity Detection
  • Multiple Button Pattern Detection
  • Analog Filtering for System Noise Sources
  • Press and Hold feature for Volume-like Applications
  • Low Power Operation
  • I²C™ and SMBus
  • 20-pin  QFN
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The CAP1166  is a turnkey capacitive touch controller providing a wide variety of  button and proximity functionality, and making it easy for designers to add
aesthetically pleasing, low-cost and robust touch interfaces.

The CAP1166 also contains 6 LED drivers that offer full-on / off, variable rate blinking, dimness controls, and breathing. Each of the LED drivers may be linked to one of the sensor inputs to be actuated when a touch is detected. As well, each LED driver may be individually controlled via a host controller.

Additional Features

      Key Features
      • 6 Capacitive Touch Sensor Inputs
      • 6 LED Driver Outputs
      • Programmable sensitivity
      • Automatic recalibration
      • Individual thresholds for each button
      • Proximity Detection
      • Multiple Button Pattern Detection
      • Analog Filtering for System Noise Sources
      • Press and Hold feature for Volume-like Applications
      • Low Power Operation
      Communication
      • I²C™ and SMBus
        Package Type
        • 20-pin  QFN
    Parametrics
    Name
    Value
    Product Type
    Proximity/Keys/Slider
    Input Channels
    6
    Max Number of Keys
    6
    Proximity detection
    Yes
    Measurement Principle
    Self Capacitance
    Power Modes
    3
    Interface
    I2C/SPI
    I/O, LED Drivers
    6
    Temp Range
    0°C to 85°C
    Voltage Range
    3.00V - 3.60V

    Documents

    Jump to:

    Supporting Collateral

    Development Environment

    • Demo & Evaluation Boards
    Demo & Evaluation Boards
    CAP1188 Evaluation Board
    CAP1188 Evaluation Board ( DM160222 )

    The CAP1188 evaluation kit provides an easy platform for evaluating and developing a variety of capacitive touch sense applications using CAP11XX family. The GUI ( Graphical User Interface) allows the user to analyze data and configure the capacitive touch controller as well as the LED drivers.

    A second connector allows engineer to connect their own board with CAP1XXX controller and...

    Learn More
    Add To Cart

    Similar Devices

    Product
    Product Type
    Price 5K
    Notes
    Proximity/Keys/Slider
    $0.55

    Proximity/Keys/Slider
    $0.53

    Proximity/Keys/Slider
    $0.67

    Proximity/Keys/Slider
    $0.74

    Proximity/Keys/Slider
    $0.74

    Proximity/Keys/Slider
    $0.81

    Proximity/Keys/Slider
    $0.87

    Proximity/Keys/Slider
    $1.48

    Proximity/Keys/Slider
    $0.36

    Proximity/Keys/Slider
    $0.43

    Proximity/Keys/Slider
    $0.45

    Proximity/Keys/Slider
    $0.49

    Proximity/Keys/Slider
    $0.59

    Proximity/Keys/Slider
    $0.64


    RoHS Information

    Part Number
    Device Weight (g)
    Shipping Weight (grams)
    Lead Count
    Package Type
    Package Width
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    CAP1166-1-BP-TR
    0.043100
    0.212121
    20
    QFN
    4x4x0.9mm
    Matte Tin
    e3

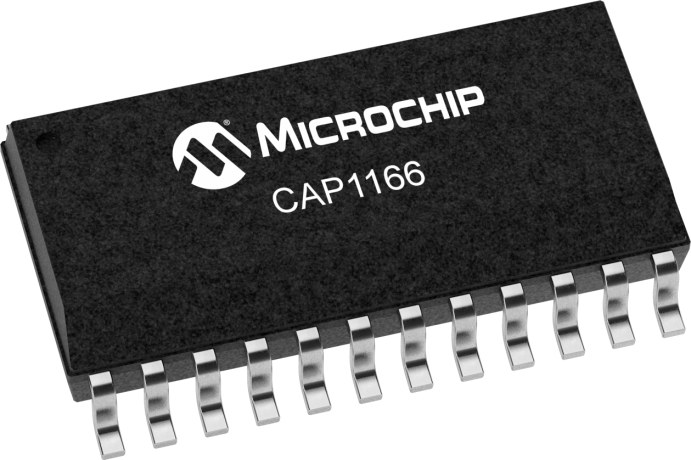

    CAP1166-1-CZC-TR
    0.083600
    0.376000
    24
    QSOP
    3.90mm(.150in)
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
