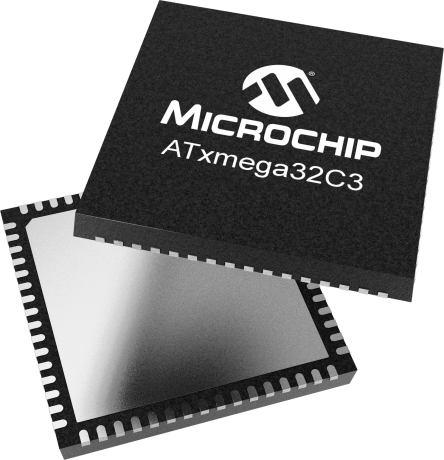

product primary image

ATxmega32C3

Status: In Production

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The high-performance, low-power 8/16-bit AVR XMEGA microcontroller combines 32KB in-system programmable flash memory (8KB boot code section) with read-while-write capabilities, 2KB EEPROM, 4KB SRAM, a four-channel event system, a programmable multi-level interrupt controller, 50 general purpose I/O lines, a 16-bit real time counter, five flexible 16-bit timer/counters with capture, compare and PWM channels, USB Full-speed Device, three USARTs, two two-wire interfaces, two serial peripheral interfaces, one 16-channel/12-bit ADC with programmable gain, two analog comparators with window mode, a programmable watchdog timer with separate internal oscillator, accurate internal oscillators with PLL and prescaler, and a programmable brown-out detection.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
32
CPU Speed (MIPS/DMIPS)
32
SRAM Bytes
4
Data EEPROM/HEF (bytes)
2048
Digital Communication Peripherals
3-UART, 5-SPI, 2-I2C
Capture/Compare/PWM Peripherals
18 Input Capture, 18 CCP, 18PWM
Number of Comparators
2
Number of USB Modules
1, Device
Temperature Range (C)
-40 to 85
Operating Voltage Range (V)
1.6 to 3.6
Pin Count
64
Low Power
Yes

Documents

Jump to:

Data Sheet

02/01/2012
25537KB

Application Notes

Download All

Brochures

01/01/2013
122KB
01/01/2013
169KB
02/01/2013
37KB
10/01/2008
3044KB

Product Document

12/10/2016
2468KB

User Guides

08/02/2017
312KB

Development Environment

  • Demo & Evaluation Boards
  • Emulators & Debuggers
  • Programmers
  • Application Examples
Demo & Evaluation Boards
XMEGA-C3 Xplained Evaluation kit
XMEGA-C3 Xplained Evaluation kit ( ATXMEGAC3-XPLD )

The XMEGA-C3 Xplained evaluation kit is a hardware platform for evaluating the ATxmega384C3 microcontroller. The kit offers a range of features that enable the AVR® XMEGA® user to get started using AVR XMEGA peripherals right away and understand how to integrate the AVR XMEGA device in their own design.

Learn More
Add To Cart
ATSTK600 Kit
ATSTK600 Kit ( ATSTK600 )

A complete starter kit and development system for the 8-bit and 32-bit AVR microcontrollers that gives designers a quick start to develop code on the AVR, with advanced features for prototyping and testing new designs.

The AVR device connects to the STK600 using an innovative routing and socketcard sandwich system, which routes the signals from the device to the appropriate...

Learn More
Add To Cart
Power Debugger kit
Power Debugger kit ( ATPOWERDEBUGGER )

Power Debugger is a powerful development tool for debugging and programming AVR microcontrollers using UPDI, JTAG, PDI, debugWIRE, aWire, TPI or SPI target interfaces and ARM® Cortex®-M based SAM microcontrollers using JTAG or SWD target interfaces.

In addition the Power Debugger has two independent current sensing channels for measuring and optimizing the power consumption of

...

Learn More
Add To Cart
Emulators & Debuggers
MPLAB PICkit 4 In-Circuit Debugger
MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Fast programming, increased functionality, at the same price.


The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC® ,  dsPIC®, and CEC flash microcontrollers, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE), version

...

Learn More
Add To Cart
Programmers
MPLAB PICkit 4 In-Circuit Debugger
MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Fast programming, increased functionality, at the same price.


The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC® ,  dsPIC®, and CEC flash microcontrollers, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE), version

...

Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
64
128
8
$3.27

44
16
2,048
$1.96

64
192
16
$4.03

64
256
16
$4.06

64
32
4
$2.55

44
32
4,096
$2.02

64
384
32
$5.00

64
64
4
$3.29


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATXMEGA32C3-AU
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATXMEGA32C3-AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATXMEGA32C3-AN
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATXMEGA32C3-ANR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATXMEGA32C3-MHR
0.236200
0.372500
64
VQFN
9x9x1mm
NiPdAu
e4
ATXMEGA32C3-MH
0.236200
1.092308
64
VQFN
9x9x1mm
NiPdAu
e4
ATXMEGA32C3-M7
0.236200
1.092308
64
VQFN
9x9x1mm
NiPdAu
e4
ATXMEGA32C3-M7R
0.236200
0.372500
64
VQFN
9x9x1mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
