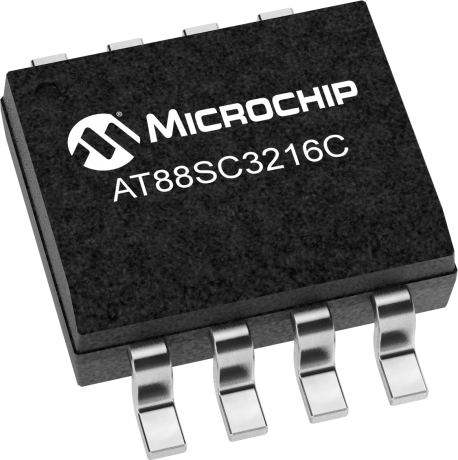

product primary image

AT88SC3216C

Status: Not Recommended for new designs

Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The AT88SC3216C member of the CryptoMemory® family is a high-performance secure memory providing 32 Kbits of user memory with advanced security and cryptographic features built in. The user memory is divided into 16 256-byte zones, each of which may be individually set with different security access rights or effectively combined together to provide space for 1 to 16 data files.

Parametrics
Name
Value
Key Size
64
Density Kb
32
Operating Voltage (Vcc)
2.7 - 5.5
Algorithm Type
Proprietary
Zones
16
Interface Type
2-WIRE; ISO7816 T=0

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT88SC3216C-WI
0.000000
1000.000
0
Wafer
Varies
-
-
AT88SC3216C-SU
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
AT88SC3216C-SU-T
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
AT88SC3216C-MJTG
0.104400
2250.000
0
SCC
12.6x11.4x0.58mm
NiAu
e4
AT88SC3216C-MJ
0.104400
2250.000
0
SCC
12.6x11.4x0.58mm
NiAu
e4
AT88SC3216C-PU
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
