USB7050P USB3.2 Gen1 4-Port Type-C SmartHub PD EVB Including Power Modules

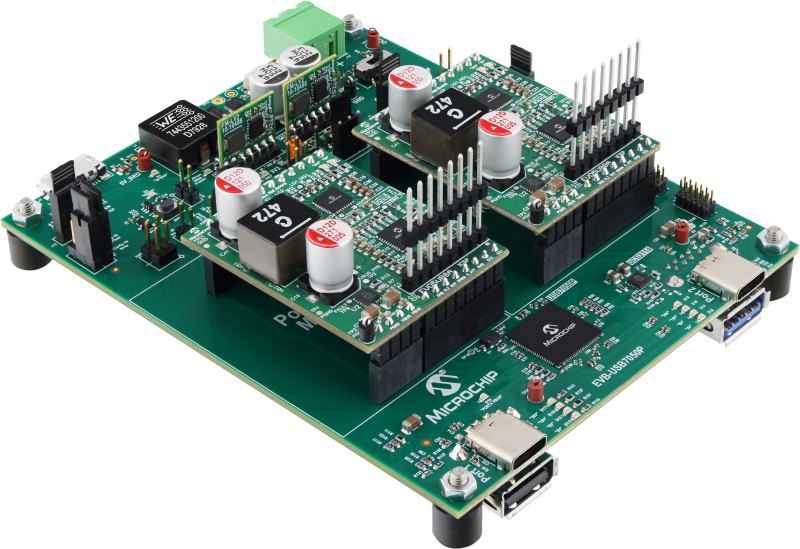

The EVB-USB7050P Evaluation Kit is a demonstration and evaluation platform that provides the necessary requirements and interface options for evaluating the USB7050P, which is a 4-port Super-Speed (SS) USB Smart Hub on a four-layer RoHS-compliant Printed Circuit Board (PCB). This allows the user to gain an understanding of the product and accelerate the integration of the EVB-USB7050P into the user’s power delivery design.

The EVB-USB7050P is compliant with USB 3.2 Gen 1 on the upstream port and on downstream ports 1 to 3. The EVB-USB7050P is also compliant with the USB 2.0 HS, Full-Speed (FS), and Low-Speed (LS) USB signaling. The evaluation platform supports four downstream ports: Two USB Type-C® Gen 1 ports, one USB Type-A Gen 1 port, and one USB 2.0 port. The EVB-USB7050P platform also supports battery charging on all four downstream ports (maximum of 10A at any one time). The EVB-USB7050P supports FlexConnect role reversal for any of the downstream ports with the upstream port.

The EVB-USB7050P has four configurations for operation through internal default settings and supports custom configurations through I2C or through the external 16-Mbit SPI Flash device. The EVB-USB7050P demonstrates driver compatibility with Microsoft® Windows® 10, Windows 8.x, Windows 7, Windows XP, Mac OS® X 10.4+, and Linux® hub drivers.
