Overview

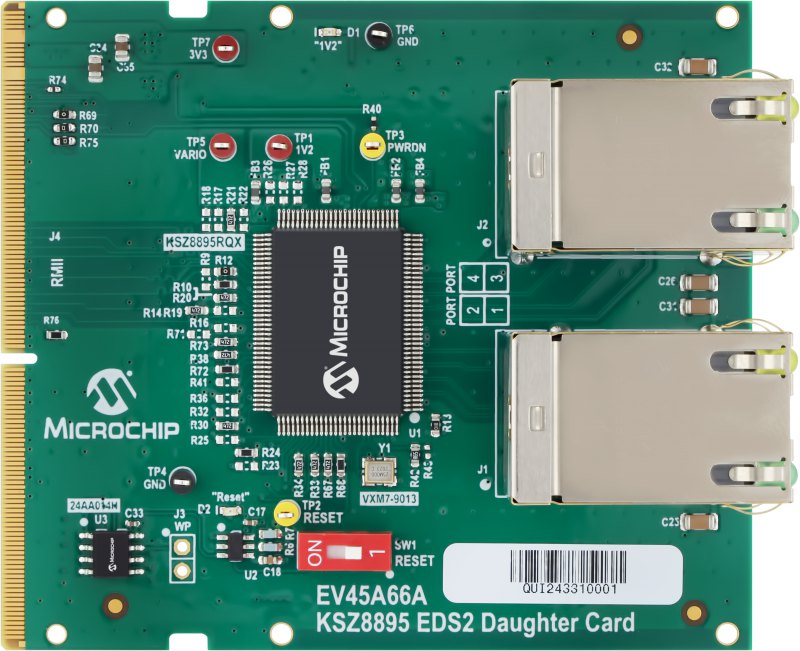

The KSZ8895 EDS2 Daughter Card is designed for evaluation of the Microchip KSZ8895 Gigabit Ethernet RGMII Switch when used with a Microchip EDS2 compatible host board. A SODIMM 260-pin connector for the EDS2 Host - KSZ8895 Interface is used due to its high performance, high pin count, and low cost.
- Microchip KSZ8895 Gigabit Ethernet Transceiver with RMII
- Microchip VXM7-9013-25M0000 crystal for 25 MHz
- Microchip MIC2790N Reset supervisor with Reset LED indicator
- Microchip 24AA014H I2C Serial EEPROM for board identification
- MDC/MDIO Management Interface
- Compliant with the SODIMM EDS2 Interface Specification
- Test points for GPIOs, power rails, and GND
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| KSZ8895 EDS2 Daughter Card User Guide | User Guides | Download | ||
| KSZ8895 EDS2 Daughter Card BOM | BOM | Download | ||
| KSZ8895 EDS2 Daughter Card Assembly Drawing | Board Design Files | Download | ||
| KSZ8895 EDS2 Daughter Card PNP | Board Design Files | Download | ||
| KSZ8895 EDS2 Daughter Card Gerbers | Gerbers | Download | ||
| KSZ8895 EDS2 Daughter Card Fabrication Drawing | Board Design Files | Download | ||
| KSZ8895 EDS2 Daughter Card Project Files | Board Design Files | Download | ||
| KSZ8895 EDS2 Daughter Card Schematics, PDF | Schematics | Download |
