Part Number: DM300017

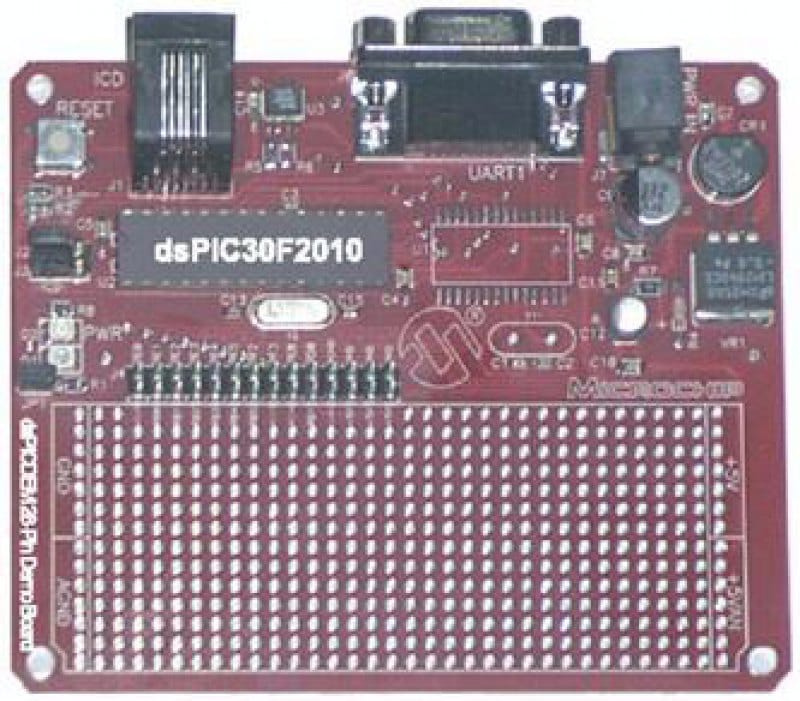

DSPICDEM 28-PIN STARTER DEVELOPMENT BOARD
Key features of the dsPICDEM 28-pin Starter Development Board include:
- dsPIC30F2010 28-pin SOIP sample device and socket
- Power input from 9V supply
- Connector for MPLAB®ICD 2 In-Circuit Debugger
- RS-232 interface
- Header for access to all device I/O pins
- Layout pad for 28-pin SOIC device
- Prototyping area
- Power-on demo program demonstrating interrupts, device I/O and UART communication
- A tutorial program in assembly code showing the user how to set up a project in MPLAB IDE
Overview
The low-cost dsPICDEM 28-pin Starter Development Board allows the user to easily validate a development tool setup using a 28-pin SOIP or SOIC dsPIC30F device. The development board has a socketed dsPIC30F2010 digital signal controller, power supply regulator, crystal oscillator, ICD header, serial port, power on indicator, Reset push-button, 28L SOIC layout pad and a prototyping area.
System Requirements
Minimum Requirements
- MPLAB IDE v7.40 or later
- MPLAB ICD 2
- MPLAB C30 v2.02 or later
- dsPICDEM 28-pin Starter Development Board (DM300017)
