Part Number: ADM00491

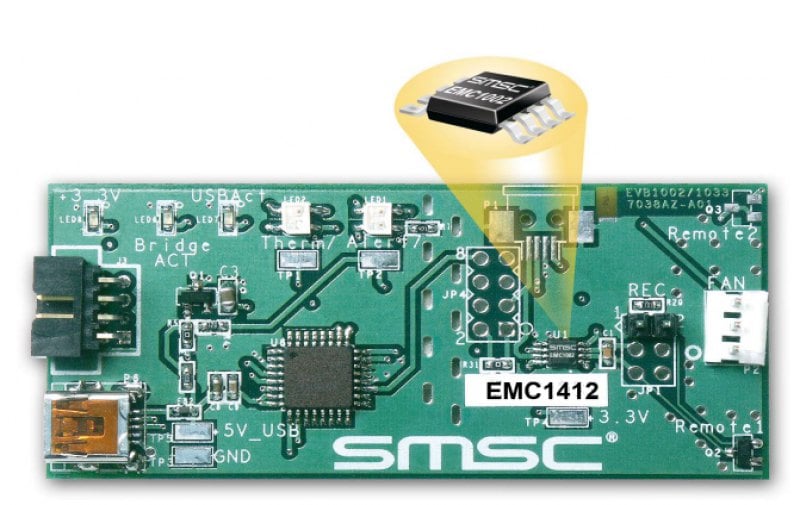

EMC1412 DUAL TEMPERATURE SENSOR EVALUATION BOARD


  • Windows Register Manager application allows viewing and changing register values as well as graphing temperature history
  • USB communication to evaluation board
  • LED indicators
  • Test points available
  • Overview


    The EMC1412 Evaluation Board provides the means to demonstrate the EMC1412 features and to view and modify registers through USB. LED indicators and test points are included to show status information and a fan driver circuit linearly drives a 5V fan to 3 different speeds based on programmable temperature limits.

    Devices Supported: EMC1412

    Package Contents

    The EMC1412 Evaluation Board provides the means to demonstrate the EMC1412 features and to view and modify registers through USB. LED indicators and test points are included to show status information and a fan driver circuit linearly drives a 5V fan to 3 different speeds based on programmable temperature limits.

    Devices Supported: EMC1412
