Arm® Cortex® Processor-Based SAM D Microcontrollers
SAM D microcontrollers (MCUs) are truly differentiated general-purpose devices that are well suited for many low-power, cost-sensitive industrial and consumer applications. These MCUs offer excellent interface and peripheral options with impressive low-power performance.
SAM D1x/2x MCUs
SAM D MCUs build on decades of innovation and experience in embedded Flash microcontroller technology. This series of MCUs not only sets a new benchmark for flexibility and ease-of-use but also combines the performance and energy efficiency of an Arm Cortex-M0+ based MCU with an optimized architecture and peripheral set.
Key Features
- Arm Cortex-M0+ based MCU running up to 48 MHz
- Flash memory densities range from 8 KB to 256 KB with SRAM ranging from 2 KB to 32 KB
- Low power consumption at < 70 µA/MHz
- Direct Memory Access (DMA) and Event system
- Up to six flexible serial communication modules (SERCOMs) provide peripheral flexibility
- Full Speed USB device and embedded host
- 12-bit Analog-to-Digital Converter (ADC) with up to 20 channels; 10-bit Digital-to-Analog Converter (DAC)
- Hardware touch support with the QTouch® technology Peripheral Touch Controller (PTC)
- Packages ranging from 14 to 64 pins
SAM D5x MCUs
The SAM D51 high- performance MCU series features the 32-bit Arm Cortex-M4F processor with Floating Point Unit (FPU) running at up to 120 MHz, up to 1 MB dual-panel Flash with ECC, and up to 256 KB of SRAM with ECC. This series of MCUS offers excellent interface options with class-leading power performance and integrated hardware security.
Key Features
- Arm Cortex-M4F core running at 120 MHz with single precision FPU
- Quad Serial Peripheral Interface (QSPI) with Execute in Place (XIP) support
- Supports five low-power modes with class-leading 65 µA/MHz active power performance
- Up to two Secure Digital Host Controllers (SDHCs) for eMMC/SDIO/SD
- Up to eight SERCOM ports configurable as UART/USART, ISO 7816, SPI or I2C
- Full-Speed USB with embedded host/device
- Dual 12-bit 1Msps ADC with up to 32 channels; dual 12-bit 1 Msps DAC
- Integrated security features including AES hardware encryption engines, TRNG and SHA-based memory integrity checker
- Hardware touch support with QTouch technology PTC supporting up to 256 channels of capacitive touch
- Pin compatibility options with SAM D2x available on select packages
- Packages ranging from 48 to 128 pins
SAM-IoT WX v2 Development Board
Part Number: EV62V87A

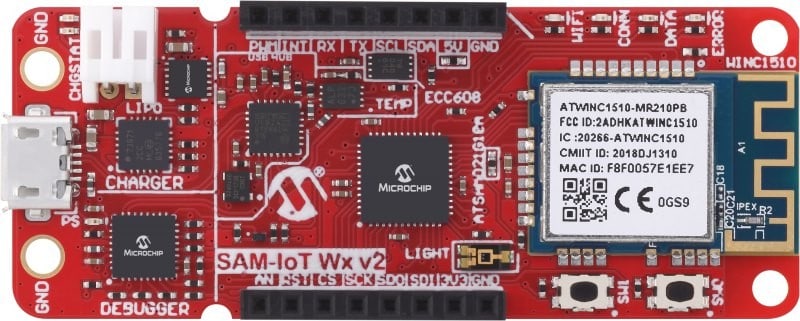

The SAM-IoT Wx v2 Development Board is a small and easy-to-expand hardware platform used to evaluate and develop IoT solutions. It features our ATSAMD21G18 Arm® Cortex®-M0+ based Flash microcontroller (MCU), ATECC608B secure element and the ATWINC1510 Wi-Fi® controller module. It can be reconfigured to send data to a variety of cloud service providers.
SAM D21 Curiosity Nano Evaluation Kit
Part Number: DM320119

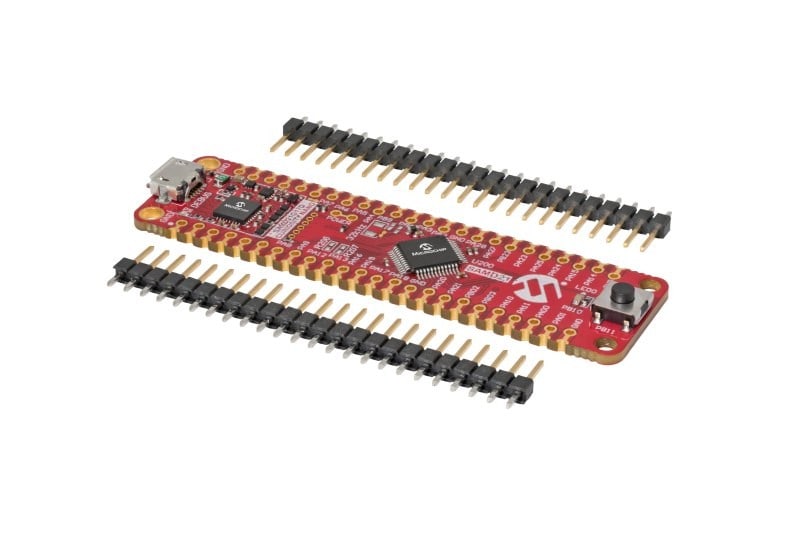

The SAM D21 Curiosity Nano Evaluation Kit is a hardware platform to evaluate the SAMD21G17D microcontroller (MCU). It is supported by the MPLAB® X Integrated Development Environment (IDE) and MPLAB Harmony v3 software development framework. The evaluation kit provides easy access to the features of the SAM D21 MCU to integrate the device into a custom design. Because the evaluation kit contains an On-Board Nano Debugger for programming and debugging, no external tools are necessary to program the SAMD21G17D device.

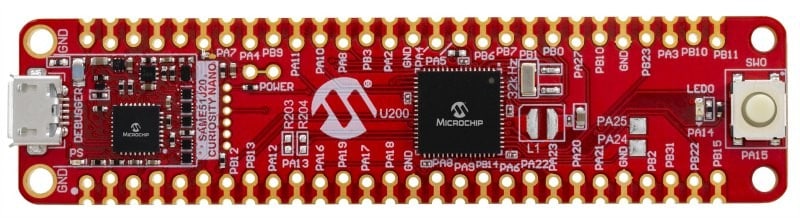

SAM E51 Curiosity Nano Evaluation Kit
Part Number: EV76S68A
The SAM E51 Curiosity Nano Evaluation Kit is a hardware platform to evaluate the SAME51J20A microcontroller (MCU). Supported by MPLAB® X Integrated Development Environment (IDE) and MPLAB Harmony v3 software development framework, this kit provides easy access to the features of the SAM E51 MCU so you can integrate the device into a custom design. It also contains an on-board Nano Debugger for programming and debugging, eliminating the need for extra tools to program the SAME51J20A device.
SAM E54 Curiosity Ultra Development Board
Part Number: DM320210

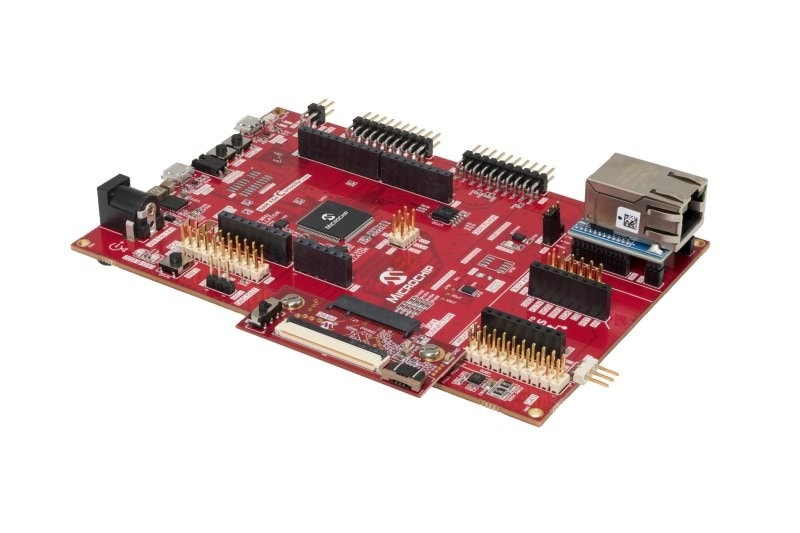

The SAM E54 Curiosity Ultra Development Board provides you with the freedom to develop a variety of applications, including Bluetooth® audio, CAN, graphics/user interfaces, Internet of Things (IoT), robotics and proof-of-concept designs. It includes an integrated programmer and debugger and requires no additional hardware to get started.

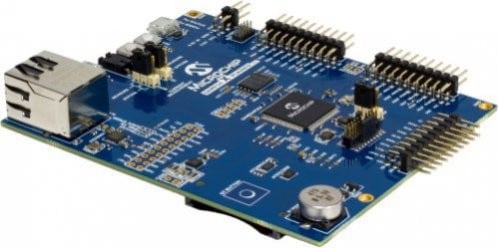

SAM E54 Xplained Pro Evaluation Kit
Part Number: ATSAME54-XPRO
The SAM E54 Xplained Pro evaluation kit is a hardware platform for evaluating the ATSAME54P20A/ATSAMD51P20A microcontroller (MCU). Supported by the Studio integrated development platform, the kit provides easy access to the features of the ATSAME54P20A/ATSAMD51P20A and explains how to integrate the device into a custom design.

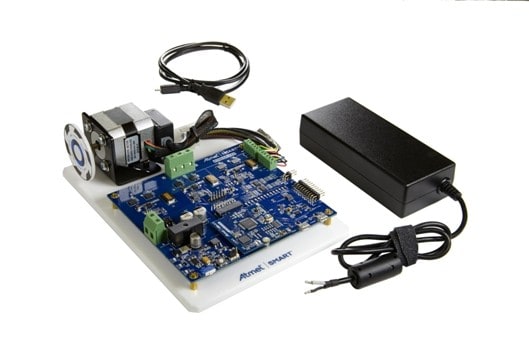

BLDC 24V Motor Control Kit
Part Number: ATSAMD21BLDC24V-STK
The kit contains an MCU control board featuring the ATSAMD21 microcontroller and embedded debugger and a driver board with ON Semiconductor drivers supporting motors operating up to 24V DC. The PCB is mounted on a chassis with a motor and can be directly connected to a PC running Studio and START for immediate development and debug of motor control applications.
SAM D10 Xplained Mini Evaluation Kit
Part Number: ATSAMD10-XMINI
ATSAMD10 Xplained Mini is is a hardware platform for evaluating the ATSAMD10 microcontroller. The evaluation kit comes with a fully integrated debugger that provides seamless integration with Atmel Studio. The kit provides access to the features of the ATSAMD10 enabling easy integration of the device in a custom design.
SAM D11 Xplained Pro Evaluation Kit
Part Number: ATSAMD11-XPRO

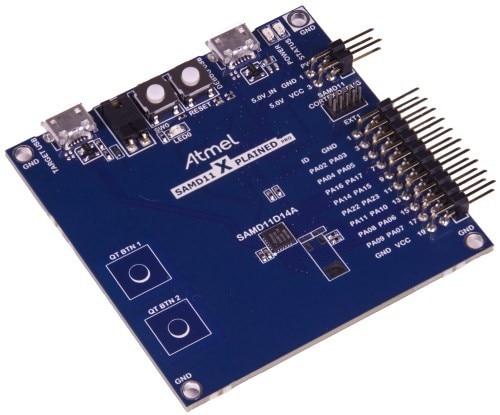

The SAM D11 Xplained Pro evaluation kit is ideal for evaluating and prototyping with the SAM D11 ARM® Cortex®-M0+ based microcontrollers. Extension boards to the SAM D11 Xplained Pro can be purchased individually.
SAM D20 Xplained Pro Evaluation Kit
Part Number: ATSAMD20-XPRO

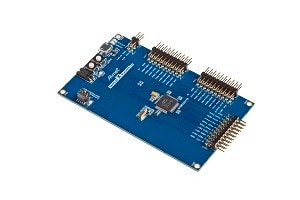

The SAM D20 Xplained Pro evaluation kit is ideal for evaluation and prototyping with the SAM D20 Arm® Cortex®-M0+ processor-based microcontrollers. Xplained Pro Extension kits compatible with the SAM D20 Xplained Pro kit can be purchased individually.
SAM D21 Xplained Pro Evaluation Kit
Part Number: ATSAMD21-XPRO

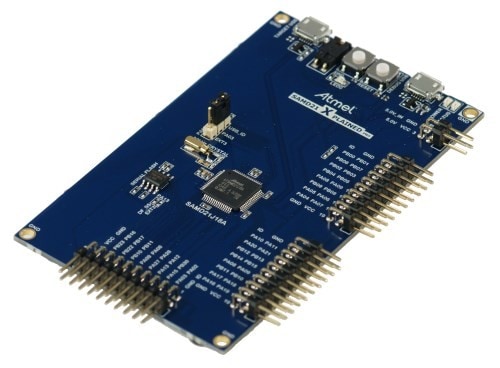

The SAM D21 Xplained Pro evaluation kit is ideal for evaluating and prototyping with the SAM D21 Arm® Cortex®-M0+ based microcontrollers. Xplained Pro Extension kits compatible with SAM D21 Xplained Pro can be purchased individually.

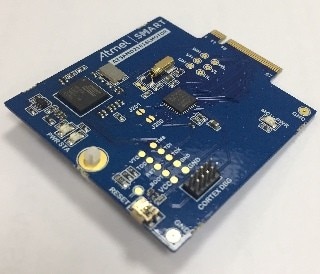

SAM D21E16L Motor Control Card
Part Number: ATSAMD21E16LMOTOR
The ATSAMD21E16LMOTOR is an MCU card for use with the ATSAMxxxBDLCxxx-STK low-voltage BLDC and PMSM motor control starter kit. The hardware has an ATSAMD21E16L MCU with integrated on-board debug support.

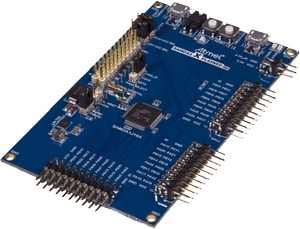

SAM DA1 Xplained Pro Evaluation Kit
Part Number: ATSAMDA1-XPRO
The SAM DA1 Xplained Pro evaluation kit can be used for evaluating and prototyping with the SAM DA1 Arm® Cortex®-M0+ based microcontrollers. Extension boards for the SAM DA1 Xplained Pro can be purchased individually.
MPLAB® X Integrated Development Environment (IDE)
MPLAB X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers and digital signal controllers. MPLAB X IDE works seamlessly with the MPLAB development ecosystem of software and tools, many of which are completely free.
MPLAB® Harmony v3 Software Framework
MPLAB Harmony v3 is a flexible, fully integrated embedded software development framework for 32-bit microcontrollers (MCUs). It enables robust framework development of interoperable RTOS-friendly libraries with quick and extensive Microchip support for third-party software integration. MPLAB Harmony includes a set of peripheral libraries, drivers and system services that are readily accessible for application development. The code development format allows for maximum re-use and reduces time to market.
