Key Features
PIC32CX SG devices contain an MCU and an optional HSM in one package. Explore the features of each below:
MCU
- 1 MB Flash and 256 KB SRAM with Error Code Correction (ECC)
- Communications interfaces: QSPI, CAN, Ethernet, USB, SERCOM, SDHC and I2S™
- Serial communication (SERCOM) ports configurable as UART/USART, ISO 7816, SPI or I2C
- 10/100 Ethernet MAC with IEEE® 1588
- Security: Asymmetric and symmetric hardware crypto accelerators
- Secure debug, chip erase protection, boot protect and immutable boot.
- Dual 1-Msps, 12-bit Analog-to-Digital Converters (ADCs) and Digital-to-Analog Converters (DACs)
- Peripheral Touch Controller (PTC) supporting up to 256 channels of capacitive touch.
- Automotive AEC-Q100 Grade 1 qualification (125°C)
- Functional safety-ready classification (automotive ISO 26262 ASIL B and industrial IEC 61508 SIL 2 compliance coming soon)
Hardware Security Module (HSM)
The HSM in the SG60/SG61 offers:
- Secure key storage
- NIST SP800-90 A/B/C Random Number Generator (RNG)
- Advanced and fast crypto engines that support ECC, RSA, AES, SHA, HMAC, CMAC
- ECDSA, ECDH, ECDHE, ECBD key agreement
- ECDSA- and RSA-based sign/verify
- EVITA full compliance
- Common Criteria Joint Interpretation Library (JIL) High rating
- FIPS-certified advanced crypto engine algorithms as per the Cryptographic Algorithm Validation Program (CAVP)
- Custom provisioning solutions
Security Use Cases
PIC32CX SG61/SG60 MCUs support security use cases like:
- Secure boot
- Secure firmware upgrade
- Secure on-board communication and message authentication
- X.509 certificate validation and storage
- IP protection
- Life cycle management
Secure Provisioning Solutions
Avoid the high risks of exposing your secret keys and reduce the costs of mass production by leveraging our secure key provisioning service. Our Trust Platform provisioning service prevents your credentials from being exposed during product development and production while also making it easy to implement secure networks for handling cryptographic keys securely.
- Hardware
- Software

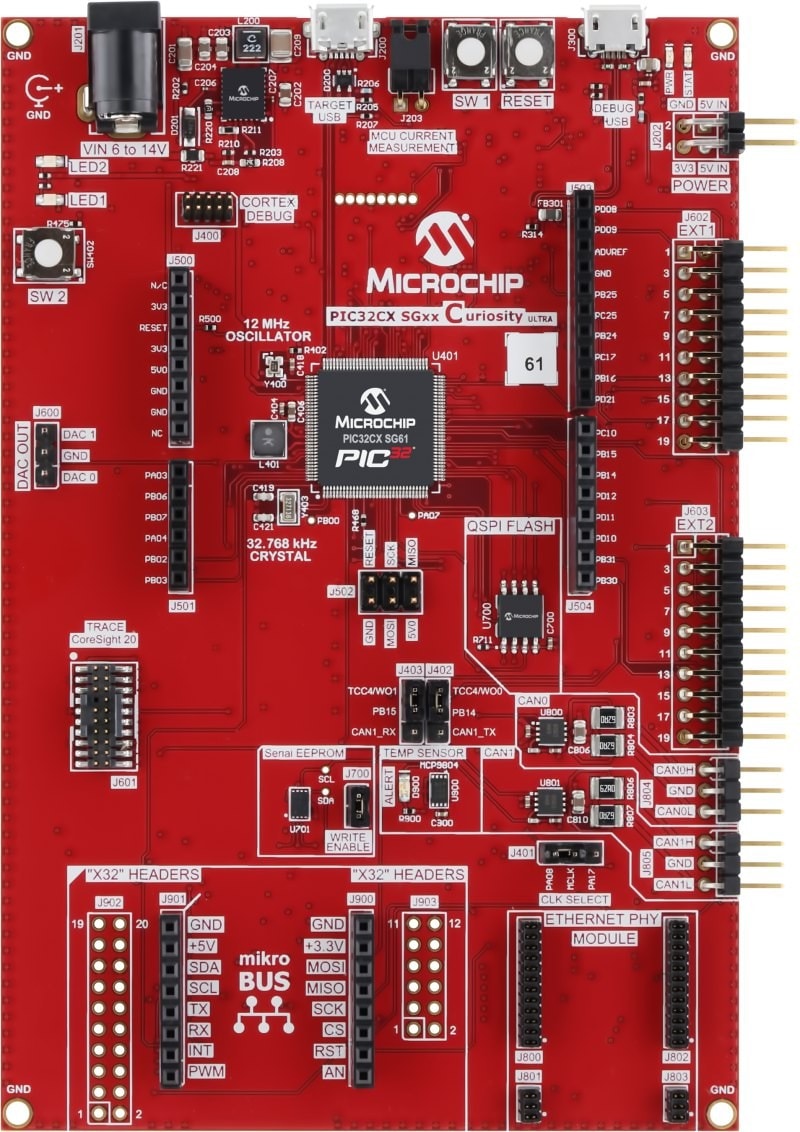

PIC32CX SG61 Curiosity Ultra Evaluation Board
Part Number: EV09H35A
The PIC32CX SG61 Curiosity Ultra Evaluation Board is the hardware platform for evaluating PIC32CX SG61/SG60 MCUs.
It is supported by MPLAB® X Integrated Development Environment (IDE) and MPLAB Harmony and includes an embedded programmer/debugger.
PIC32CX SG41 Curiosity Ultra Evaluation Board
Part Number: EV06X38A
The PIC32CX SG41 Curiosity Ultra Evaluation Board is the hardware platform for evaluating PIC32CX SG41 MCUs.
It is supported by MPLAB® X Integrated Development Environment (IDE) and MPLAB Harmony and includes an embedded programmer/debugger.
View Products
Similar Devices
- Data Sheet
- Application Notes
- Supporting Collateral
- Troubleshooting Checklist
- Errata
- Technical Brief
- Brochures
Microchip Bootloaders
Bootloaders are used to upgrade firmware on a target device without using an external programmer or debugger. Commonly used with microcontrollers (MCUs), a bootloader contains code that loads and executes an application program. Bootloaders can also perform additional tasks such as validating the code integrity and authenticity.
PIC32CX Videos Playlist
The PIC32CX SG family offers 120 MHz MCUs that combine connectivity, performance and strong security features for industrial, IoT and automotive applications. With options like the SG41, which include secure boot and debug, and the SG61, which features a JIL High-certified HSM, these AEC-Q100 Grade 1 devices enable efficient application development using MPLAB® Harmony and MPLAB Code Configurator (MCC). They are available in 100- and 128-pin packages.
