Part Number: VSC5629EV

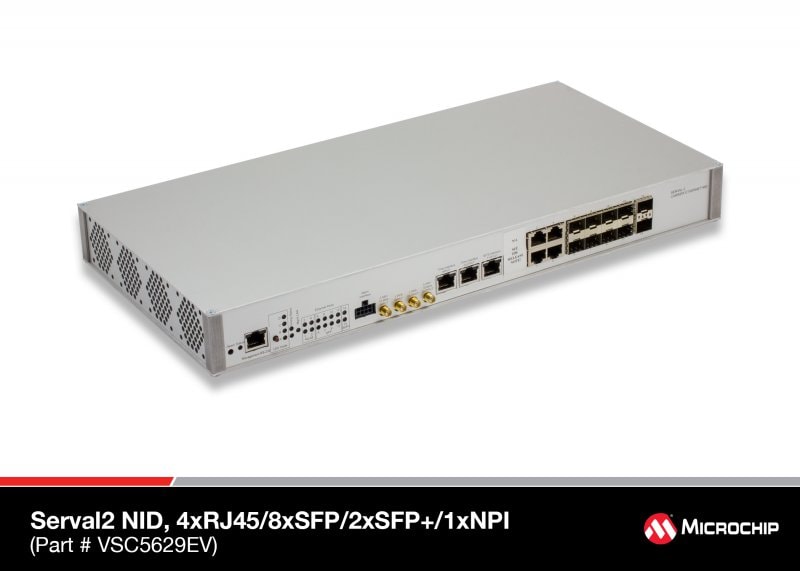

VSC5629EV - SERVAL-2 NID, 4XRJ45/8XSFP/2XSFP /1XNPI

  • VSC7438 Ethernet switch
  • VSC8584 quad MACsec PHY
  • 4 1G RJ45 front ports
  • 8 SFP front 100M/1G/2.5G module slots
  • 2 SFP+ front 10G module slots
  • Embedded MIPS CPU system for management
View Purchasing Options
Contact Us

Overview

The VSC5629EV ethernet development system can be used to demonstrate the Serval-2 (VSC7438) Ethernet switch with its IEEE1588 and SynE capabilities and the VSC8584 PHY devices.

Package Contents

N/A

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
VSC5629EV Reference Design Files Download 7cb43abb-1fa2-46b6-85da-238383f00906

Software

Title
Date
vsc6817-istax-software 09 Jun 2025 Link

Silicon Products

Product
Title
Product
Title
VSC7438 12 Port 32G Carrier Ethernet Switch VSC7438 12 Port 32G Carrier Ethernet Switch
