Universal Mixed-Signal Explorer GUI for Mixed-Signal Products


Evaluate mixed-signal products easily with our universal Mixed-Signal Explorer Graphical User Interface (GUI). The Mixed-Signal Explorer GUI is a software application designed to demonstrate the capabilities of our mixed-signal evaluation boards. This GUI is compatible with the PIC32MZ mixed-signal data capture board, which allows you to assess the full performance of various analog mixed-signal products including ADCs, DACs, Digital Potentiometers (DigiPots) and power monitoring ICs.

Key Features


  • Ability to evaluate variety of different mixed-signal products using one tool

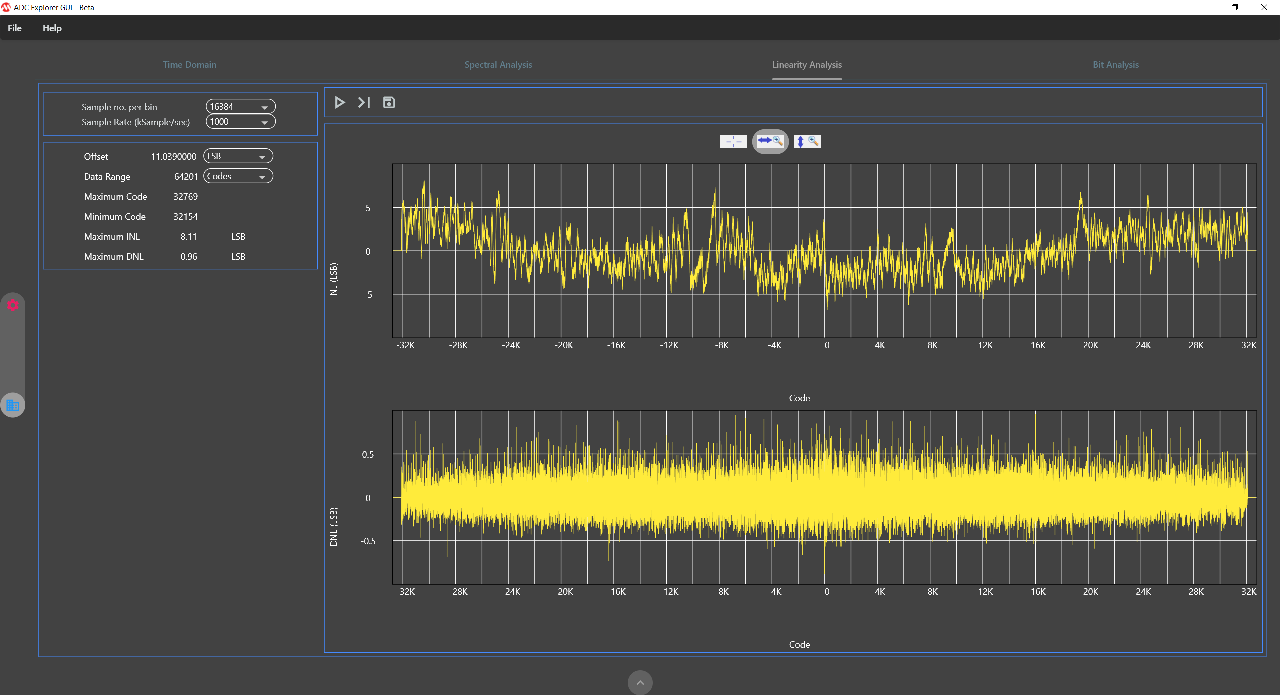

  • Support for different types of analyses such as time domain, spectral, linearity and bit analysis
  • Access to visual plots and displayed/downloadable metrics

Supported Products:
