Part Number: EV76B70A

EV76B70A MCP4XCXBX8 OCTAL 1 LSB DAC EVAL BOARD

User Guide: PDF
1LSb Octal DAC Evaluation Board User Guide
View Purchasing Options
Contact Us

Overview

The EVB76B70A evaluation board is a tool for quick and easy evaluation of Microchip’s MCP47CXBX8 and MCP47CXBX8 DAC device families, 12-Bit, 1LSb, multi-output channel devices. Users can easily evaluate either I2C or SPI compatible DACs by connecting the board to any of the Microchip Curiosity microcontroller development boards, or by connecting to other mikroBUS™ supported MCU platforms using the mikroBUS click™ board feature.

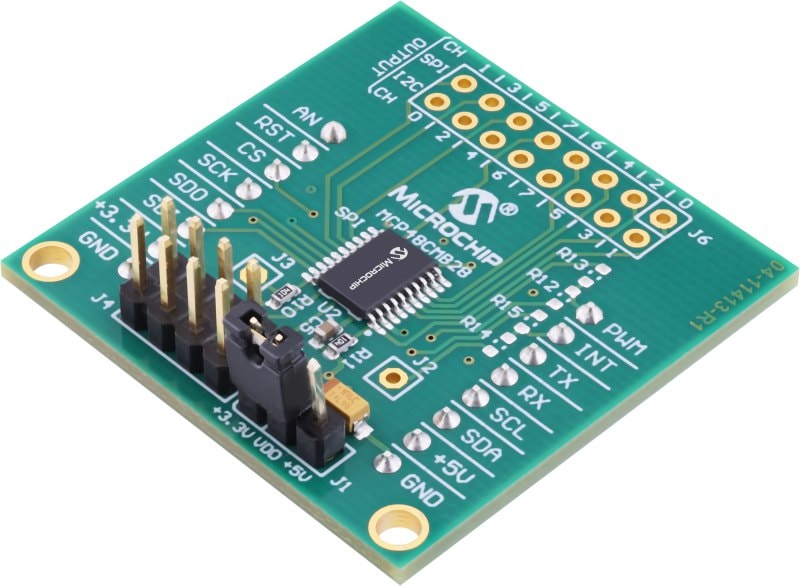

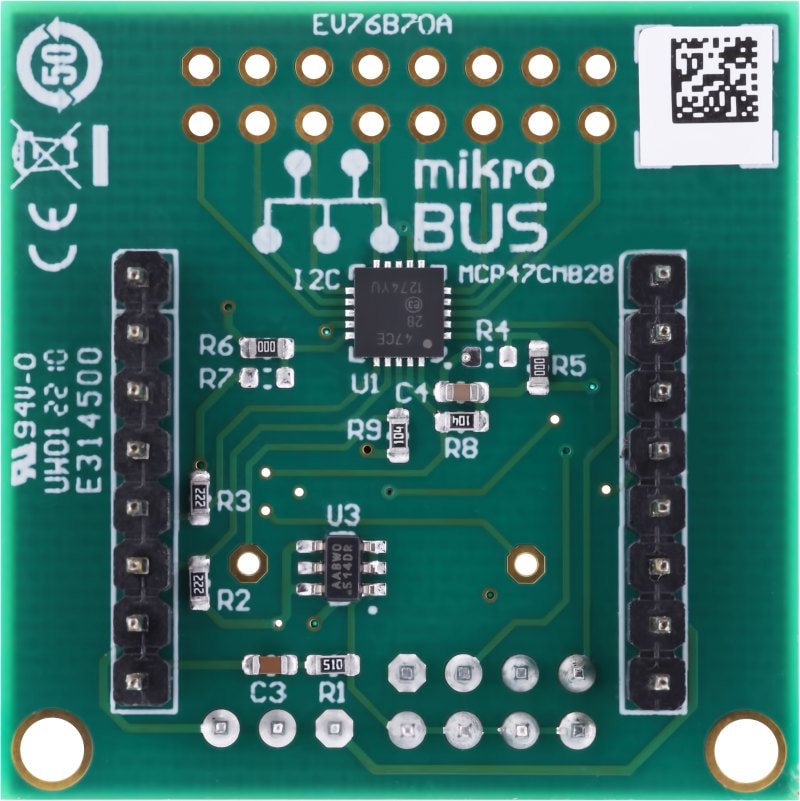

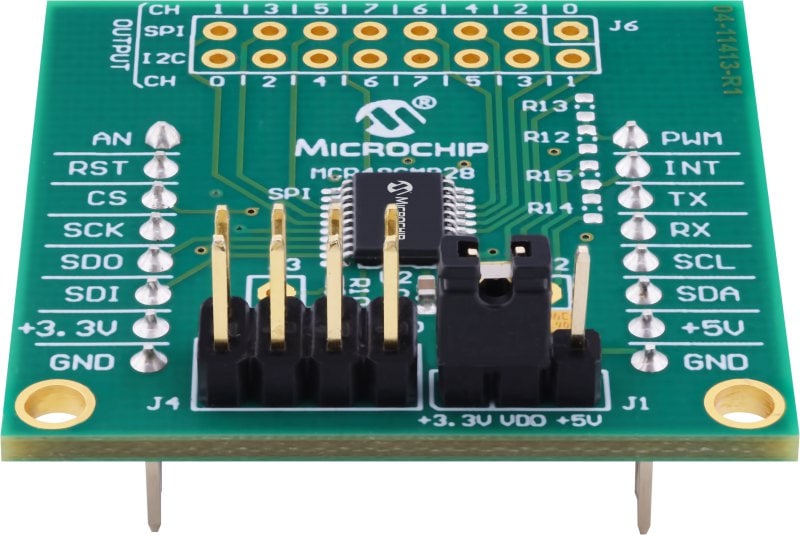

1 LSb Octal DAC Evaluation Board
