Powering PolarFire^® FPGAs and SoCs

Find the right power solution combination for PolarFire FPGAs or PolarFire SoCs. Our reference guide and solution selector highlights our power management products that are proven to shorten your prototype development cycle.

PolarFire FPGA 3.3V to 5.5V and 12V Input Power Solutions

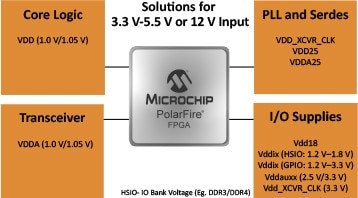

Powering PolarFire® FPGAs

Explore 3.3V-5.5V Input Products

Explore 12V Input Products

PolarFire FPGA Intermediate Bus Power Solutions

Powering PolarFire® FPGAs

Explore 12V to 5V Intermediate Bus Products

3.3V to 5.5V Input Voltage Solutions

PolarFire FPGA power management solutions for input voltage supply of 3.3 to 5.5V

Use the "Select Option" drop-down to filter by FPGA function

Current Requirements	Voltage In	FPGA Function	Modules/PMIC	Discrete (Performance)
0–1A	3.3V–5V	Core Logic		MIC22205 LX7167A
1A–3A	3.3V–5V	Core Logic	MIC33M356 (I²C)	MIC22405 LX7180A (I²C) MIC23356 (I²C)
3A–5A	3.3V–5V	Core Logic	MIC33M656 (I²C) MIC45404 MIC45205-2 MIC45116-2	MIC23656 (I²C) LX7219 (I²C) LX7220 (I²C) MIC24045 (I²C) MIC24046
5–8A	3.3V–5V	Core Logic	MIC45208-2 MIC45212-2	MIC22705 MIC24051
≤ 6A	2.7V–5.5V	Core Logic	MCP16701 (PMIC)
6A–12A	4.5V–16V	Core Logic	MCPF1412
12A–200A	4.5V–16V	Core Logic	MCPF1525
600 mA to 1A	3.3V–5V	Transceiver		MIC69103 (LDO, 1A)
1A–3A	3.3V–5V	Transceiver		MIC69303 (LDO, 3A)
3A–5A	3.3V–5V	Transceiver		MIC69502 (LDO, 5A)
≤ 6A	2.7V–5.5V	Transceiver	MCP16701 (PMIC)
1A–3A	3.3V–5V	PLL and SerDes Clock		MIC69303 (LDO, 3A)
3A–5A	3.3V–5V	PLL and SerDes Clock		MIC69502 (LDO, 5A)
≤ 6A	2.7V–5.5V	PLL and SerDes Clock	MCP16701 (PMIC)
Up to 300 mA	3.3V–5V	I/O and Aux Rails		MIC5365 (LDO, 150 mA) MIC5376 (LDO, 150 mA) MIC5504 (LDO, 300 mA) LX8213 (LDO, 300 mA)
300 mA to 600 mA	3.3–5V	I/O and Aux Rails	MIC33050 MIC3385	MIC5524 (LDO, 500 mA) LX8240 (LDO, 800 mA) MIC23050 MIC2204 MCP1603
600 mA to 1A	3.3V–5V	I/O and Aux Rails	MIC33153	MCP1612 MIC22205 LX7167A
1A–3A	3.3V–5V	I/O and Aux Rails	MIC33M350 (I²C) MIC33M656 (I²C)	MIC22405 LX7180A (I²C) MIC23350 (I²C) MIC23356 (I²C) MIC23303
3A–5A	3.3V–5V	I/O and Aux Rails	MIC33M656 (I²C) MIC45404 MIC45205-1/2 MIC45116-1/2	MIC23656 (I²C) LX7219 (I²C) LX7220 (I²C) MIC24045 (I²C) MIC24046 LX7165 (I²C)
5–8A	3.3V–5V	I/O and Aux Rails	MIC45208-1 MIC45208-2	MIC22705 MIC22950
≤ 6A	2.7V–5.5V	I/O and Aux Rails	MCP16701 (PMIC)
1A–3A	3.3V–5V	DDR Terminator		MIC5166
3A–5A	3.3V–5V	DDR Terminator		MIC5167
≤ 6A	2.7V-5.5V	DDR Terminator	MCP16701 (PMIC)

12V Input Voltage Solutions

PolarFire FPGA power management solutions for input voltage supply of 12V

Use the "Select Option" drop-down to filter by FPGA function

Current Requirements	Voltage In	FPGA Function	Modules (Ease of Use)	Discrete (Performance)
3A–5A	12V	Core Logic	MIC45404	MIC24045 (I²C) MIC24046
5A–8A	12V	Core Logic	MIC45208 MIC45212-2	MIC24055 MIC24051
6A–12A	4.5V–16V	Core Logic	MCPF1412
12A–200A	4.5–16V	Core Logic	MCPF1525
3A–5A	12V	Transceiver		MIC69502 (LDO, 5A)
3A–5A	12V	PLL and SerDes Clock		MIC69502 (LDO, 5A)
3A–5A	12V	I/O and Aux Rails	MIC45404 MIC45205-1/2 MIC45116-1/2	MIC24045 (I²C) MIC24046
5A-8A	12V	I/O and Aux Rails	MIC45208	MIC24055

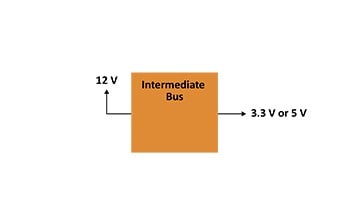

12V to 5V Intermediate Bus Products

PolarFire FPGA power management solutions for 12V to 5V intermediate bus products

Current Requirements	Modules (Ease of Use)	Discrete (Performance)
1A–3A		MCP16361 MCP16362 MCP16363
300 mA–600 mA		MCP16301 MCP16331
3A–5A		MIC24046 MIC24045 (I²C) MIC2814 MIC2815
5A–8A	MIC45208-1/2	MIC24055 MIC27600 MIC26950 MIC28516 MIC28517
> 8A	MIC45212-1/2 MCPF1412 MCPF1525	MIC2127A (Analog Controller) MIC2128 (Analog Controller)
