Mission Assurance From Low Earth Orbit (LEO) to Deep Space
Exploration and Long-Term Reliability
Low Earth Orbit Satellites and FPGAs
Deep Space and Radiation Tolerant
Launch Vehicles and Ruggedized
Explore Our High-Reliability Space Products
Radiation-Tolerant, Space-Qualified Oscillators

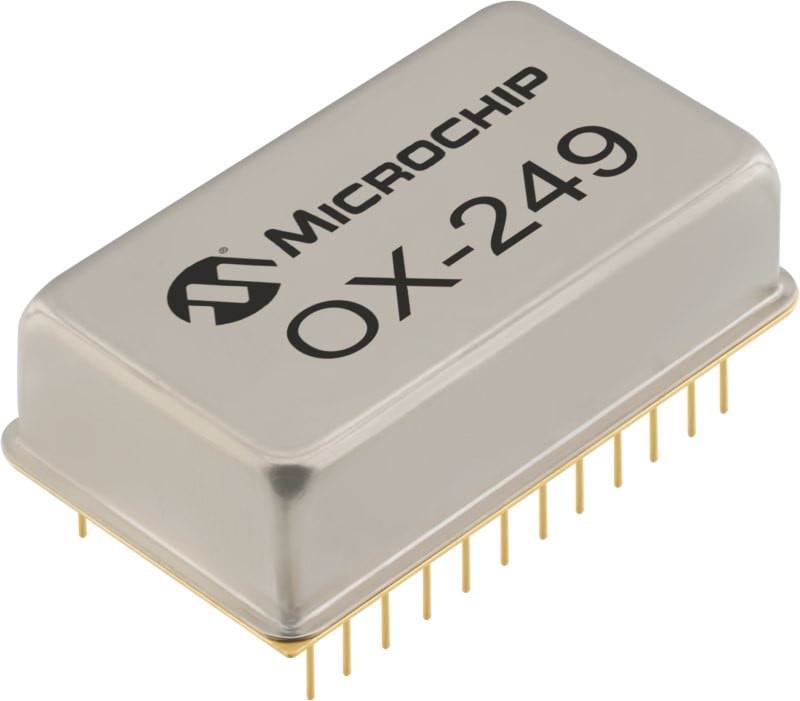

OX-249 Space OCXO
300 krad TID, Class 2
The OX-249 is the only Class 2 hybrid construction OCXO in the market. Providing low phase noise, ADEV and temperature stability, the OX-249’s packaged crystal provides an additional layer of screening and qualification for added reliability.

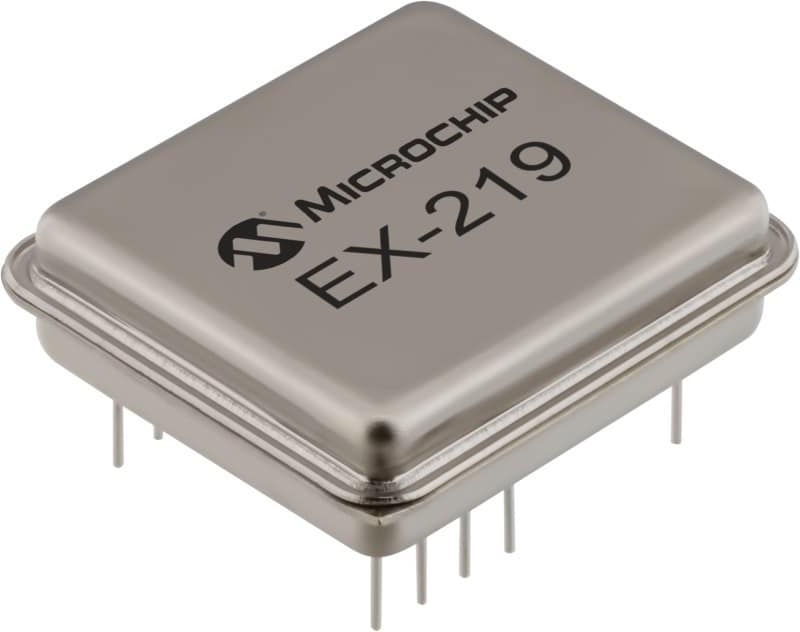

EX-219 Space EMXO
Ultra Low Power
The fully evacuated enclosure provides a very low power solution for space flights, resulting in excellent frequency-versus-temperature performance due to loss of convection within the enclosure.

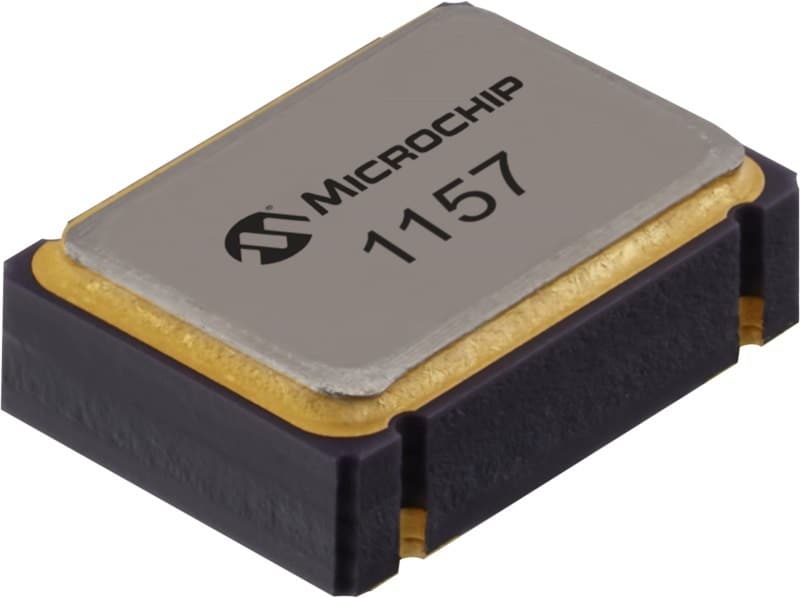

1157 Series Space XO
Small Size
In a 5 mm × 7 mm or lead-formed enclosure, the 1157 series of XOs provides excellent radiation tolerance in a small package. This series of products is derated per EEE-INST-002 Level 1 and 2 standards and contains radiation tolerance up to 100 krad TID.

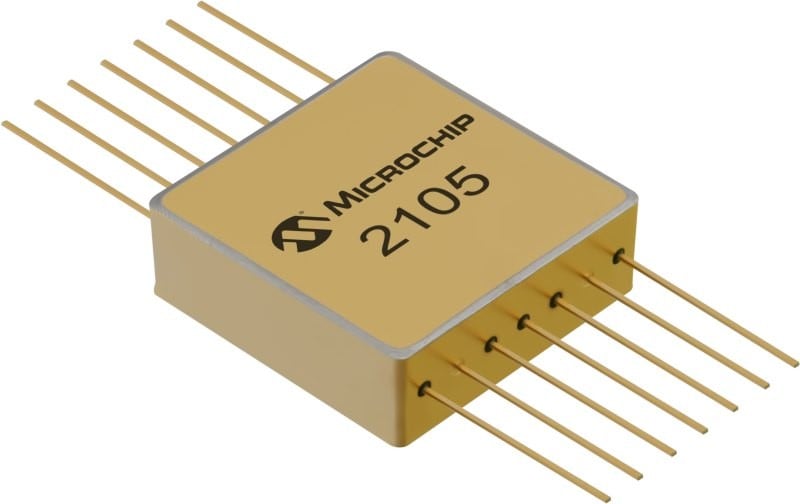

2105 Series Space TCXO
Small Footprint
The 2105 series of space TCXOs contains a thermistor-compensated network to provide excellent temperate stability. The fully ceramic, hybrid 2105 series is the smallest, fully space-qualified TCXO in the market.
Ultra-Stable Oscillators (USOs)

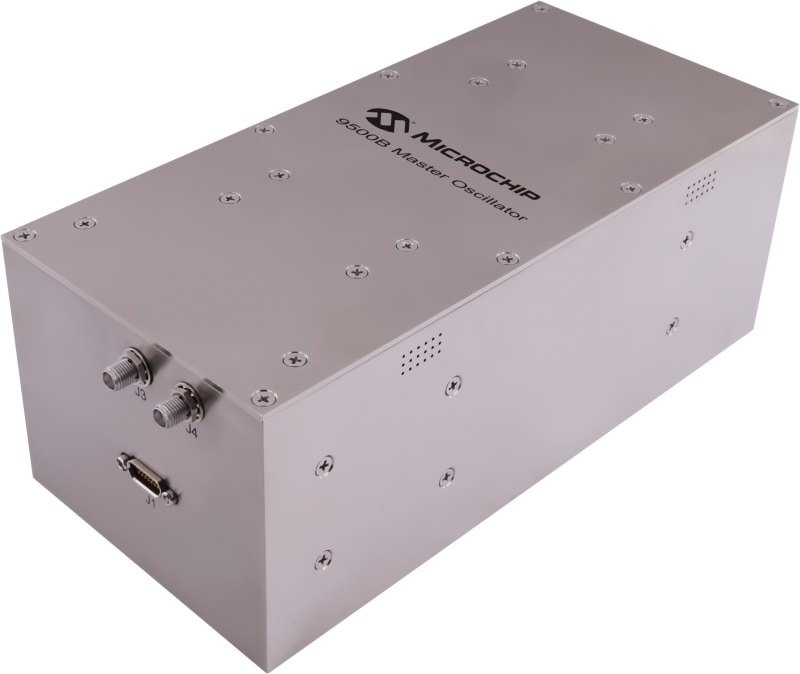

9500B Master Oscillator
> 100 Krad Total Ionizing Dose (TID)
The 9500B master oscillator is capable of producing a highly stable, low-noise-reference frequency output for space applications. Built on our strong space flight heritage, the 9500B delivers the best stability performance available in a commercial product.

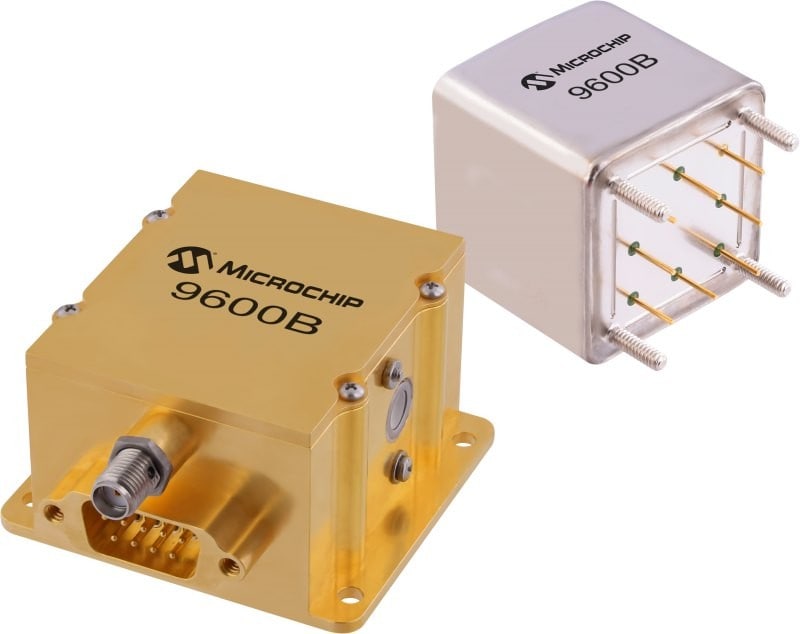

9600B Space and Military OCXO
Ultra-Miniature, Grade 2
The 9600B ultra-miniature Oven-Controlled Crystal Oscillator (OCXO) provides a high-stability output for a wide variety of military and space applications. It is available in two form factors and built with components manufactured and tested to Grade 2 requirements per the MIL-STD-975.

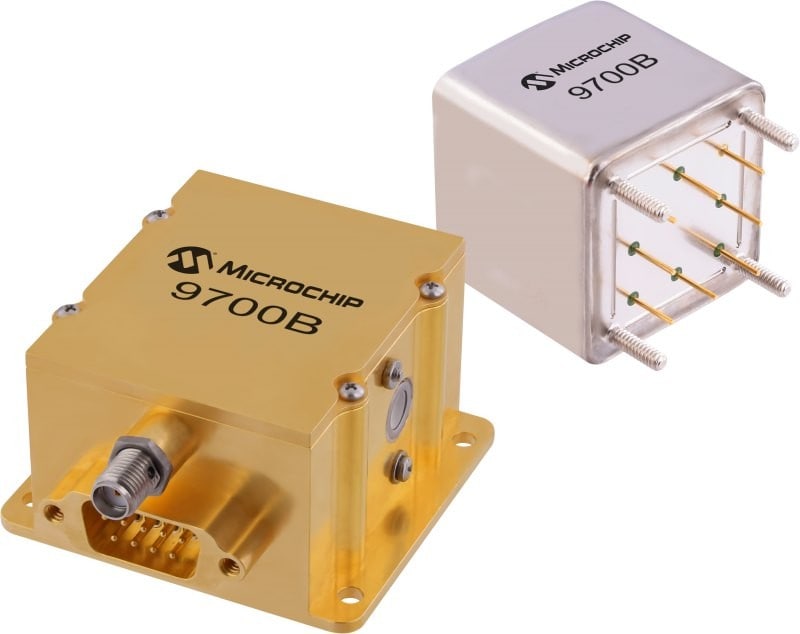

9700B Space-Qualified OCXO
Ultra-Miniature, Grade 1
The 9700B is an ultra-miniature ovenized crystal oscillator that provides a high-stability output for a wide variety of military and space applications. It is available in two form factors and built with components manufactured and tested to Grade 1 requirements per the MIL-STD-975.

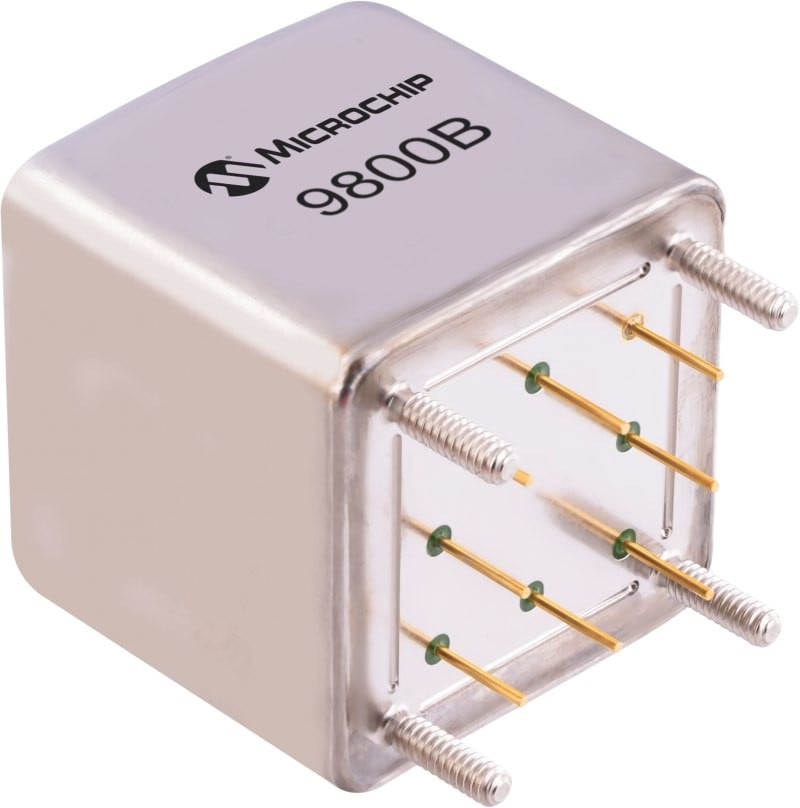

9800B VHF Space OCXO
Small Footprint
The 9800B, an ultra-miniature ovenized crystal oscillator, is designed utilizing hybrid circuitry to provide a highly stable VHF sinewave output in the smallest possible package, without sacrificing performance and reliability.
All High-Reliability and Space Products Parametric Chart
Similar Devices
Application Notes and Additional Information
- Application Notes
- Brochures
- Packaging Specifications
|
Title
|
Category
|
|---|---|
| Vectron Space Oscillator Brochure | Product Documents |
|
Title
|
Category
|
|---|---|
| DOC220429 - Hi-Rel Packaging Standards | Product Documents |
Additional Oscillator Products Acquired from Vectron®
With the acquisition of Vectron, we offer a more comprehensive portfolio of oscillator technologies, services and solutions so you can build more reliable systems supporting today’s precise timing standards. These solutions include OCXOs, TCXOs, VCXOs, VCSOs, GNSS-DOs, high-reliability crystals and high-reliability space and defense products.
