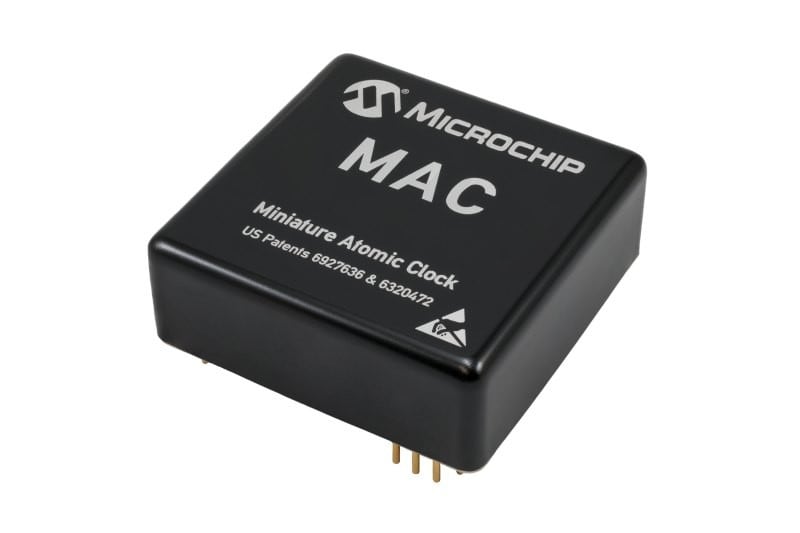

Miniature Atomic Clock (MAC-SA5X)

Miniaturized Rubidium Atomic Clock With Superb Holdover Capability

The MAC-SA5X is designed for applications that require rubidium atomic clock holdover performance but are constrained by size and low power requirements. Its superb short-term stability (Allan Deviation), resistance to temperature changes (tempco) and long-term drift performance allow tight synchronization to GNSS timing or another primary reference clock. This enables nanosecond holdover performance for days at a time.

Key Features

  • The MAC-SA55 offers excellent stability for its size:
    • < 1.5E-11 ADEV @ 1s
    • < 5E–11 monthly aging (frequency drift per month)
    • < 5E–11 frequency change vs. −40°C to +75°C temperature change
    • < 200 ns holdover ability over 24 hours (typical, static temperature)
  • Remote monitoring and control (RS232 and USB)
  • 1 PPS disciplining from externally supplied signal (phase and frequency calibration)
  • Dimensions: 51 × 51 × 18 mm
  • Clockstudio™ software tool supports MAC products

Available Models

Model Part Number Description Aging (Frequency Drift) Temperature Stability 72-Hour Holdover Capability
(10°C Temperature Change)
090-44530-01* MAC-SA53 (Base) < 10E−11/mo < 10E-11 4 uS
090-44550-01* MAC-SA55 (High Performance) < 5E−11/mo < 5E−11 2 uS
090-44570-01* MAC-SA57 (Ultra High Performance) < 2E-11 /mo < 2E-11 1 uS
090-44500-000 Evaluation Kit (MAC-SA5X not included)

*Add "-EU" to these part numbers to order from our German factory (e.g., 090-44530-01-EU)
