Pre-provisioned secure element for LoRaWAN
Overview
Alternate products
Compare Products
(2)
- Algorithm Type:ECC P256 (ECDH and ECDSA), SHA256, AES-GCM
- Standby Typical (uA):0.04
- Interface Type:Single-wire; I2C
- Recommend using Trust&GO LoRa ATECC608B
- Cryptographic co-processor with secure hardware-based key storage
- Hardware support for symmetric algorithms
- SHA-256 & HMAC hash including off-chip context save/restore
- AES-128: encrypt/decrypt, galois field multiply for GCM
- Networking key management support
- Turnkey PRF/HKDF calculation for LoRaWAN
- Ephemeral key generation and key agreement in SRAM – Small message encryption with keys entirely protected
- Internal high-quality FIPS 800-90 A/B/C Random Number Generator (RNG)
- Two high-endurance monotonic counters
- Guaranteed unique 72-bit serial number
- 1MHz Standard I2C interface
- 1.8V to 5.5V IO levels, 2.0V to 5.5V supply voltage
- <150nA Sleep current
- 8-pad UDFN, 8-lead SOIC packages
Recommend using ATECC608B-TNGLORA

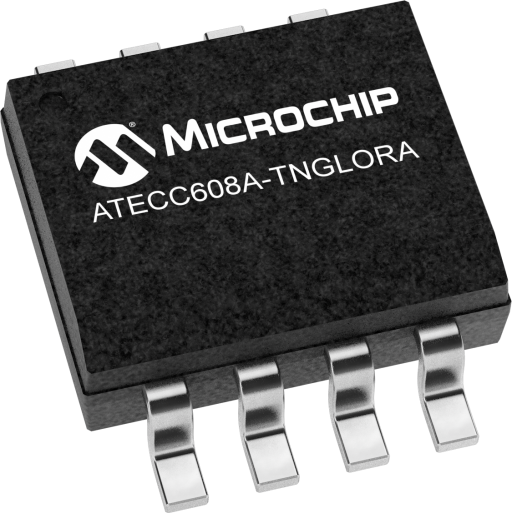

The Microchip ATECC608A-TNGLORA is a Trust&GO secure element part of the Trust Platform for the CryptoAuthentication family. The device comes pre-configured and pre-provisioned with the authentication keys of The Things Industries (TTI) join servers. The configuration and credentials are locked in the device and cannot be changed unless a re-keying is requested to the TTI join server to move the device to a different join server than TTI. The TTI join server is agnostic of the network server or application server either it's a public or private network. This secure element integrates an AES128 hardware accelerator and hardware-based cryptographic key storage as well as cryptographic countermeasures which reduces potential backdoors linked to software weaknesses on the symmetric LoRaWAN authentication keys. Other important feature integrated in the ATECC608A-TNGLORA are the ECDH (Elliptic Curve Diffie Hellman) security protocol an ultra-secure method to provide key agreement for encryption/decryption, along with ECDSA (Elliptic Curve Digital Signature Algorithm) sign-verify authentication for the Internet of Things (IoT) market including home automation, industrial networking, medical, or retails.
The device is agnostic of any microprocessor (MPU) or microcontroller (MCU) and compatible with virtually any MCUs or MPUs thanks to the CryptoAuthLib library. As with all CryptoAuthentication devices, the ATECC608A-TNGLORA delivers extremely low-power consumption, requires only a single GPIO over a wide voltage range, and has a tiny form factor making it ideal for a variety of applications that require longer battery life and flexible form factors.
Cannot load image!
Not the part you were looking for?
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 The SAM R34 Xplained Pro Evaluation Kit is a certified LoRa evaluation board for developing with SAM R34 Family of LoRa SiP devices.
|
| The AT88CKSCKTSOIC-XPRO is an XPRO extension board that attaches 8-pin SOIC CryptoAuthentication™ devices to Microchip MCU's that support an XPRO interface. All Microchip CryptoAuthentication™ devices regardless of interface can be used with this board.
|
