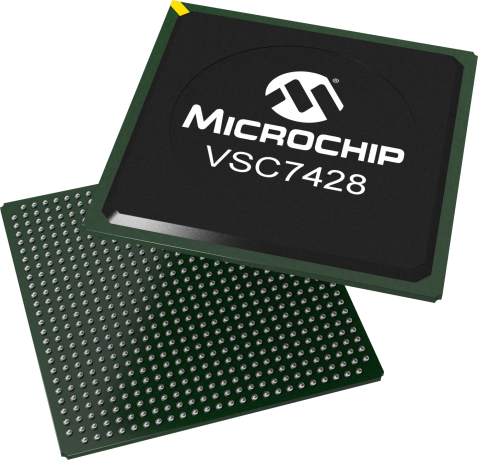

VSC7428

11 Port Carrier Ethernet Switch with 8 Integr

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

VSC7428 is the industry's most integrated 11-port Ethernet switch with SGMII ports, copper PHYs, and an embedded CPU in a single package. VSC7428 is based on Virtualized Service Aware Architecture (ViSAA), a silicon implementation that offers an unmatched level of Service Edge and Carrier Ethernet (CE) networking features. ViSAA achieves wirespeed performance for even the most feature-rich CE services. VSC7428 is intended for Telecom and CE applications, supporting MEF service delivery, network OAM, and timing over packet solutions for IEEE 1588 network timing and Synchronous Ethernet (SyncE). VSC7428 uses VeriTime IEEE 1588, Microsemi's patent-pending distributed timing technology that delivers the industry's most accurate IEEE 1588 network timing and synchronization implementation. The device supports combinations of SGMII ports, Cu PHYs, and SGMII uplink ports. One of the SGMII ports can be dedicated to the CPU for packet insertion and extraction. VSC7428 meets the IEEE802.3az Energy Efficient Ethernet requirements for green energy efficient ethernet through Microsemi's ActiPHY and PerfectReach™ energy efficient modes. A powerful embedded 416 MHz MIPS processor 32-bit CPU with DDR2 external memory and DMA-based frame extraction and insertion supports timing over packet, Ethernet OAM, and performance monitoring. VSC7428 is an excellent choice for Mobile backhaul and Microwave backhaul applications, and for provider service demarcation points in Edge and Access devices. A comprehensive application programming interface (API) and software package are provided for CE applications. The software package integrates easily with third-party software, preserving existing software investments while adding new, enhanced carrier functionality. VSC7428-02 has eight Gigabit Ethernet (GE) copper PHYs. The VSC7428-12 has eight Fast Ethernet copper PHYs.

Additional Features
  • VSC6816: SMBStaX Linux Application Software Package for Managed Enterprise Switches
    • VSC6816: SMBStaX Linux Application Software Package for Managed Enterprise Switches
    • VSC6817: IStaX Linux Application Software Package for Managed Ethernet Switches
    • VSC6819: WebStaX Linux Application Software Package for Managed Enterprise Switches
    • GE PHYs
    • 10GE PHYs
    • Ethernet Software
    • Integrated Cu PHYs
    • IEEE 1588 and Synchronous Ethernet network timing
    • Supports IEEE802.3az and green energy efficiency modes with ActiPHY™ and PerfectReach™
Parametrics
Name
Value
Ethernet Bandwidth
10/100/1000/2500Mbps
MAC
11
Interrupt Pin
Yes
LEDs
128
Op. Voltage (V)
1
Interface
SGMII 1000Base-T (8)
IEEE 1588
Yes
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
125
Automotive
No
Fiber Support
100FX, 1000X
Vdd I/O (V)
1.0/1.2/2.5
LinkMD Cable Diag
Yes
