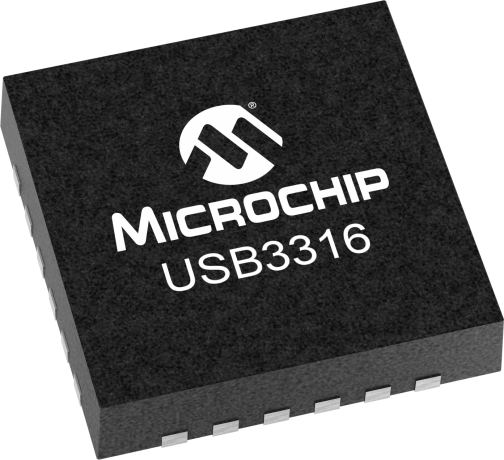

The USB331x family of Hi-Speed USB 2.0 transceivers provides a highly integrated, small footprint solution designed for portable consumer electronics devices including cell phones, PDAs, portable media players and GPS/personal navigation devices. The USB331x family eliminates the need for external USB switches and electrostatic discharge (ESD) protection devices, which minimizes eBOM part count and printed circuit board (PCB) area. The USB331x provides an extremely flexible solution which allows the USB connector to act as a single port of connection for high speed data transfer, battery charging and stereo/mono audio accessories.
*The USBCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Highlights

• Highly integrated, Hi-Speed USB 2.0 transceivers
  • Integrated USB switch
  • Internal ESD protection circuits
  • Integrated 3.3V LDO regulator
  • External passive components minimized
• Industry's best current ESD performance in a Hi-Speed USB transceiver
  • ±8kV HBM
  • ±8kV/±15kV IEC (contact/air)
  • No external ESD protection circuits required
• Ability to use the USB connector as single port of connection
  • Switch Hi-Speed data, battery charging and stereo/mono audio accessories
• Microchip flexPWR® technology
  • I/O voltage capability (fixed 1.8V)
  • Low power and standby modes of operation to minimize power consumption
• 19.2Mhz reference clock support
• Robust design tolerates "noisy" clock and power supplies
• Small package size and very low eBOM part count
• Hi-Speed On-the-Go (OTG) - host and device capable
• Supports Commercial (0° to 70°C) and industrial (-40° to 85°C) temperature ranges

Target Applications

• Cell Phones
• Smart Phones
• PDAs
• GPS Personal Navigation Devices
• Personal Media Players (PMPs)
• Digital Still and Video Cameras
• External Hard Disk Drives
• Printers
• Set-top Boxes
• Digital TVs
• Gaming Consoles
• Industrial Systems
