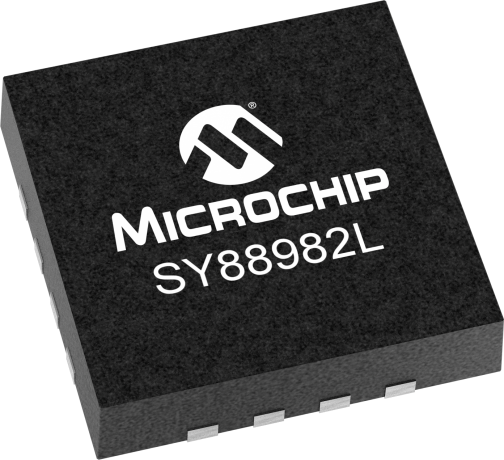

product primary image

SY88982L

Status: In Production

Features:

  • 2.4V minimum laser compliance voltage for highcurrent DC-coupled applications
  • 48mA power supply current typical
  • Operation up to 2.7Gbps
  • Modulation current up to 90mA
  • Designed for use with the MIC3000/1
  • Small form factor 16-Pin (3mm x 3mm) QFN package
  • Laser may be DC- or AC-coupled
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY88982L is a single 3.3V supply, low power consumption, small form factor driver for telecom/datacom applications using FP/DFB lasers at data rates up to 2.7Gbps. The driver can deliver modulation current up to 90mA, and the high compliance voltage it offers, makes the part suitable for high-current operation (with the laser AC- or DC coupled to it). This device is intended to be used with Micrel's MIC3000/1 Optical Transceiver Management IC, which allows for both modulation and bias current control and monitoring, automatic power control, and temperature compensation.

Additional Features
  • 2.4V minimum laser compliance voltage for highcurrent DC-coupled applications
  • 48mA power supply current typical
  • Operation up to 2.7Gbps
  • Modulation current up to 90mA
  • Designed for use with the MIC3000/1
  • Small form factor 16-Pin (3mm x 3mm) QFN package
  • Laser may be DC- or AC-coupled
Parametrics
Name
Value
Part Type
Lasers and EML Drivers - DFB/FP Laser Drivers
Data Rate Capability
2.7
Power Supply (V)
3.3
Drive Current (mA)
90

Documents

Jump to:

Data Sheet

11/11/2015
732KB

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY88982LMG-TR
0.021300
0.801700
16
VQFN
3x3x0.9mm
NiPdAu
e4
SY88982LMG
0.021300
0.050000
16
VQFN
3x3x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
