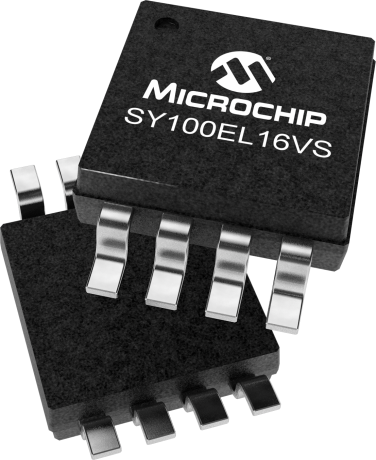

product primary image

SY100EL16VS

Variable Output Swing Differential Receiver

Status: In Production

Features:

  • 3.3V and 5V power supply options
  • High bandwidth output transitions
  • Internal 75KΩ pull-down resistors on inputs
  • Functionally equivalent to SY100EL16V with variable output swing
  • Improved output waveform characteristics
  • Available in 8-pin SOIC and 8-pin (3mm) MSOP
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SY100EL16VS are differential receivers with variable output swing. The devices are functionally equivalent to the EL16V devices with an input that control the amplitude of the outputs.The operational range of the EL16VS control input is from VBB (max. swing) to VCC (min. swing). Simple control of the output swing can be obtained by a variable resistor between the VBB pin and VCC with the wiper driving VCTRL.The EL16VS provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBBpin should be used only as a bias for the EL16VS as its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed to ground via a 0.01mF capacitor.Under open input conditions (pulled to VEE), internal input clamps will force the Q output LOW.

Parametrics
Name
Value
Product Type
Drivers and Receivers
Input
PECL
Output
PECL
Supply Voltage
3.3/5V
Max Prop Delay (ps)
425
Icc (mA)
26
OE
False
RPE
False
FSI
True
Input Mux
False
Input EQ
False

Documents

Jump to:

Application Notes


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY100EL16VSKG
0.025100
0.124600
8
MSOP
3x3mm
NiPdAu
e4
SY100EL16VSKG-TR
0.025100
0.334700
8
MSOP
3x3mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
