RE46C107

Status: In Production

Features:

  • Low Quiescent Current
  • 10V Up Converter
  • Low Horn Driver Ron
  • Voltage Regulation to 3.0V or 3.3V
  • Low Battery Detection
  • Available in Standard Packaging or RoHS Compliant Pb Free Packaging
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

The RE46C107 is intended for use in 3V or 4.5V battery or battery-backed applications. The circuit features a DC-to-DC up-converter and driver circuit suitable for driving a piezoelectric horn. A selectable 3.0V or 3.3V regulator is also provided for microprocessor voltage regulation. An LED driver and low battery detection and signaling are also available.

Additional Features
  • Low Quiescent Current
  • 10V Up Converter
  • Low Horn Driver Ron
  • Voltage Regulation to 3.0V or 3.3V
  • Low Battery Detection
  • Available in Standard Packaging or RoHS Compliant Pb Free Packaging
Parametrics
Name
Value
Operating Voltage (Vdc)
2 to 5
LED Driver
True
Voltage Regulator
3V or 3.3V
Low Battery Detection
True
Interconnect
False
Power Good
False
Brown Out
True
Charge Pump
False
Inductive Boost
True
Operating Temperature Range (°C)
0C to 50C

Documents

Jump to:
×

Data Sheets

DC to DC Converter, Voltage Regulator and Piezoelectric Horn Driver

120KB

Brochures

Analog and Interface Product Selector Guide

5052KB
Low Power Analog Solutions

120KB

Development tools data is currently unavailable.

Similar Devices

Product
Operating Voltage
LED Driver
Voltage Regulator
Price 5K
RE46C100
6V - 16V
False

$0.33
RE46C101
6V - 16V
True

$0.37
RE46C104
4V - 8V
False

$0.71
RE46C105
6V - 12V
True
3.3V or 5V
$0.71
RE46C107
2V - 5V
True
3V or 3.3V
$0.84
RE46C108
6V - 12V
False
3.3V or 5V
$0.60
RE46C109
6V - 12V
False
3V
$1.15
RE46C117
2V - 5V
False

$0.84
RE46C119
6V - 12V
False
3V
$1.15
RE46C317
2V - 5V
False

$0.72
RE46C318
2V - 5V
False

$0.72
RE46C800
2V - 12V
True
3.3V
$0.72
RE46C803
2V - 3V
True
3.3V
$0.70

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
RE46C107S16T
0.000000
0.323462
16

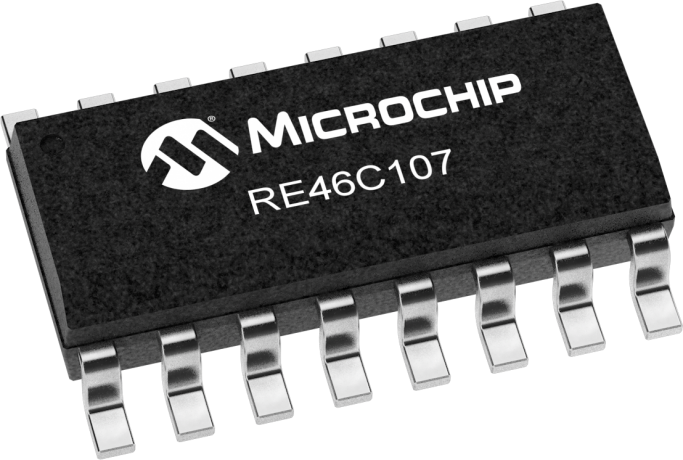

SOIC
.150in
SnPb
e0
RE46C107S16F
0.157400
0.300000
16
SOIC
.150in
Matte Tin
e3
RE46C107S16TF
0.157400
0.307692
16
SOIC
.150in
Matte Tin
e3
RE46C107E16F
1.112700
1.833333
16

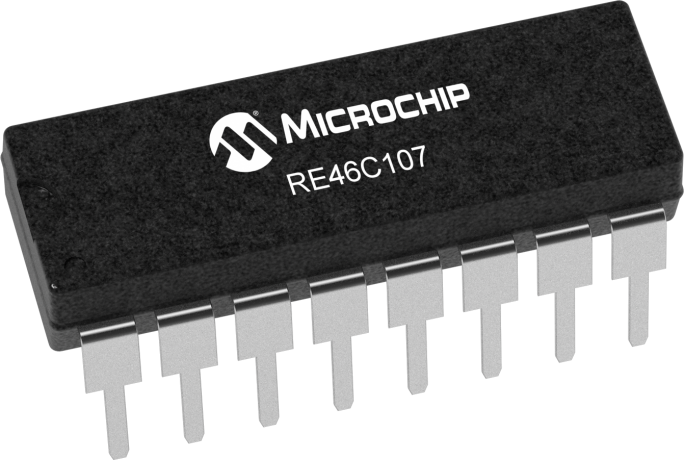

PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
