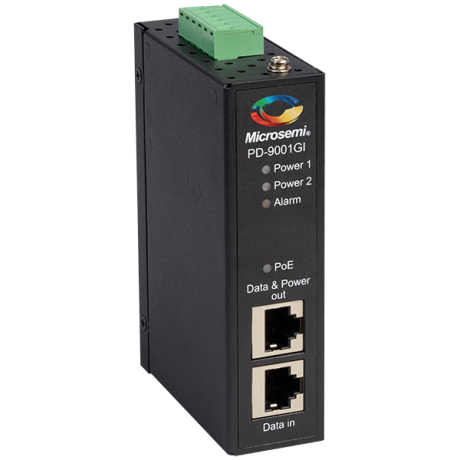

product primary image

PD-9001GI

1 port, 30W, IEEE 802.3at-compliant industrial grade PoE midspan

Status: In Production

Features:

  • Number of ports: 1
  • PoE output: 30W
  • Data rates: 10/100/1000 Mbps
  • Power input: DC
  • Industrial rated: IP30
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
  • EMI: EN50522 Class A, EN55024
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power applications. The PD-9001GI enables remote power for a new range of applications including 802.11n access points, pan-tilt zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both 10/100Base-T network devices and 1000Base-T devices. The midspan is designed for industrial applications and outdoor applications from temperature point of view.

Additional Features
  • Number of ports: 1
  • PoE output: 30W
  • Data rates: 10/100/1000 Mbps
  • Power input: DC
  • Industrial rated: IP30
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
  • EMI: EN50522 Class A, EN55024
  • Safety: UL 508
  • Shock: IEC 60068-2-27 15g, 11 ms duration
  • Freefall: IEC 60068-2-32
  • Vibration: IEC 60068-2-6, 3, 5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min, 1g, 9 Hz – 150 Hz, 10 cycles 1 octave/min
  • Compact design
Parametrics
Name
Value
Product Type
30W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3at
Power Per Port
30W
Operating Environment
Industrial
Number of Ports
1
Data Rate
1 Gbps
Input Power
DC
Operating Humidity (%)
90
Operating Temperature (°C)
-40 to 75
Warranty (Years)
5

Documents

Jump to:

Data Sheets


290KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-9001GI/DC
380.0000
640.0000
N/A
N/A
200x180x160mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
