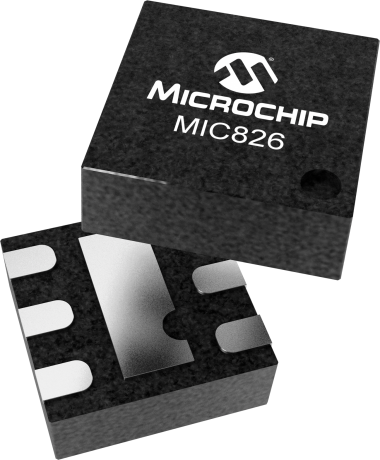

product primary image

MIC826

Voltage Supervisor with Watchdog Timer, Manual Reset, and Dual Outputs

Status: In Production

Features:

  • Precision 1.8V to 5V power supply monitor
  • ±0.5% threshold accuracy at TA = +25°C
  • ±1.5% threshold accuracy from TA = -40°C to +125°C
  • 3.8μA supply current (MIC826S/R/T/W/Y/Z)
  • 4.8μA supply current (MIC826L/M)
  • Manual reset input
  • 140ms (min.) reset timeout period
  • 1.6s (typ.) watchdog timeout period
  • Float watchdog timer input to disable watchdog timer
  • Active-high and active-low push-pull outputs
  • Guaranteed reset output valid to VCC = 1V
  • -40°C to +125°C junction temperature range
  • 6-pin 1.6mm x 1.6mm x 0.5mm Thin DFN package
  • 50% smaller version of MAX823/MAX824/MAX825/ADM823/ADM824/ADM825
  • 8x lower watchdog input current than competition
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC826 is a low-current, ultra-small, voltage supervisor with manual reset input, watchdog timer, and active-high and active-low push-pull outputs. The reset outputs are asserted and held when the supply voltage falls below the factory-programmed threshold voltage, when the /MR pin is pulled low, or if the watchdog times out. Reset is asserted for the reset timeout delay after the supply voltage increases above the rising threshold voltage or when manual reset input is asserted high.

The MIC826 features an integrated pull-up resistor on the /MR. An active-low push-pull reset output (/RESET) and an active-high reset output (RESET) provide flexibility when interfacing with various microcontrollers, PMICs, or load switches. The watchdog input can be left unconnected for applications that do not require watchdog monitoring.

The MIC826 consumes a quiescent current of only 3.8μA and is offered in a tiny, space-saving, 6-pin 1.6mm x 1.6mm Thin DFN package. It is rated for the -40°C to +125°C temperature range.

Additional Features
    • Precision 1.8V to 5V power supply monitor
    • ±0.5% threshold accuracy at TA = +25°C
    • ±1.5% threshold accuracy from TA = -40°C to +125°C
    • 3.8μA supply current (MIC826S/R/T/W/Y/Z)
    • 4.8μA supply current (MIC826L/M)
    • Manual reset input
    • 140ms (min.) reset timeout period
    • 1.6s (typ.) watchdog timeout period
    • Float watchdog timer input to disable watchdog timer
    • Active-high and active-low push-pull outputs
    • Guaranteed reset output valid to VCC = 1V
    • -40°C to +125°C junction temperature range
    • 6-pin 1.6mm x 1.6mm x 0.5mm Thin DFN package
    • 50% smaller version of MAX823/MAX824/MAX825/ADM823/ADM824/ADM825
    • 8x lower watchdog input current than competition
Parametrics
Name
Value
Product Type
Supervisor
Watchdog Timer
Yes
Manual Reset
Yes
Operating Temp. Range (°C)
-40 to 125
Vcc Range (V)
1.0 - 5.5
Nominal Reset Voltage (V)
1.665, 2.188, 2.315, 2.625, 2.925, 3.075, 4.375, 4.625
Reset Type
Active Low/High or High/Low
Output
Push-Pull
Typical Reset Pulse Width (ms)
140
Typical Supply Current (µA)
4

Documents

Jump to:

Data Sheets

11/09/2015
421KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC826YYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826SYMT-T5
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826ZYMT-T5
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826LYMT-T5
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826MYMT-T5
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826RYMT-T5
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826TYMT-T5
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826WYMT-T5
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826YYMT-T5
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826LYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826MYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826RYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826SYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826TYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826WYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC826ZYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
