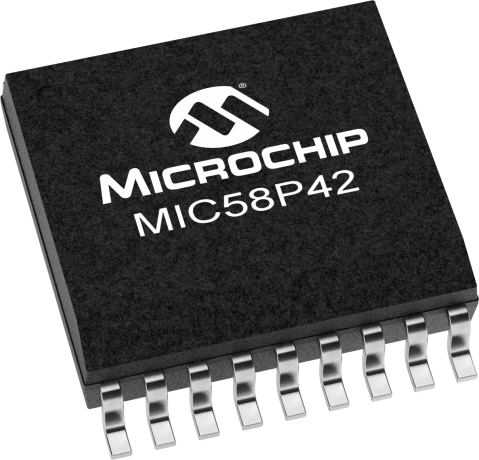

MIC58P42

8-Bit Serial Input Protected Latched Driver

Status: In Production

Features:

  • 3.3 MHz Minimum Data-Input Rate
  • CMOS, PMOS, NMOS, and TTL Compatible
  • Internal Pull-Up/Pull-Down Resistors
  • Low Power CMOS Logic and Latches
  • High Voltage (80V) Current-Sink Outputs
  • Output Transient-Protection Diodes
  • Single or Split Supply Operation
  • Thermal Shutdown
  • Under-Voltage Lockout
  • Per-Output Over-Current Shutdown (500mA typical)
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MIC58P42 serial-input latched driver is a high-voltage (80V), high-current (500mA) integrated circuit comprised of eight CMOS data latches, a bipolar Darlington transistor driver for each latch, and CMOS control circuitry for the common STROBE, CLOCK, SERIAL DATA INPUT, and OUTPUT ENABLE functions. Similar to the MIC5842, additional protection circuitry supplied on this device includes thermal shutdown, under voltage lockout (UVLO), and over-current shutdown. The bipolar/CMOS combination provides an extremely low-power latch with maximum interface flexibility. The MIC58P42 has open-collector outputs capable of sinking 500 mA and integral diodes for inductive load transient suppression with a minimum output breakdown voltage rating of 80V (50V sustaining). The drivers can be operated with a split supply, where the negative supply is down to -20V and may be paralleled for higher load current capability. With a 5V logic supply, the MIC58P42 will typically operate at better than 5MHz. With a 12V logic supply, significantly higher speeds are obtained. The CMOS inputs are compatible with standard CMOS, PMOS, and NMOS circuits. TTL circuits may require pull-up resistors. By using the serial data output, drivers may be cascaded for interface applications requiring additional drive lines. Each of these eight outputs has an independent over current shutdown of 500 mA. Upon over-current detection, the affected channel will turn OFF until VDD is cycled or the ENABLE/RESET pin is pulsed high. Current pulses less than 2µs will not activate current shutdown. Temperatures above 165°C will shut down the device. The UVLO circuit prevents operation at low VDD; hysteresis of 0.5V is provided. See the MIC59P60 for a similar device that additionally provides an error flag output.

Additional Features
    • 3.3 MHz Minimum Data-Input Rate
    • CMOS, PMOS, NMOS, and TTL Compatible
    • Internal Pull-Up/Pull-Down Resistors
    • Low Power CMOS Logic and Latches
    • High Voltage (80V) Current-Sink Outputs
    • Output Transient-Protection Diodes
    • Single or Split Supply Operation
    • Thermal Shutdown
    • Under-Voltage Lockout
    • Per-Output Over-Current Shutdown (500mA typical)
Parametrics
Name
Value
Type
Sink
Output Channels
8
Vout (V) operating – Transient
80
Vout (V) Operating - Sustained
50
Iout (mA) per Channel
500
Output Structure
Darlington Open Collector
Input Structure
Serial
Minimum Data Clock (MHz)
3.3
General Description
8-Bit Serial Input Protected Latched Driver
Package
18/SOIC 300mil 18/PDIP
