MIC2178

2.5A 200kHz Synchronous Buck Regulator

Status: In Production

Features:

  • 4.5V to 16.5V input voltage range
  • Dual-mode operation for high efficiency (up to 96%)
  • PWM mode for > 200mA load current
  • Skip mode for < 200mA load current
  • 100mΩ internal power MOSFETs at 12V input
  • 200kHz preset switching frequency
  • Low quiescent current
  • 1.0mA in PWM mode
  • 600µA in skip mode
  • < 5µA in shutdown mode
  • Current-mode control
  • Simplified loop compensation
  • Superior line regulation
  • 100% duty cycle for low dropout operation
  • Current limit
  • Thermal shutdown
  • Undervoltage lockout
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC2178 is a 200kHz synchronous buck (step-down) switching regulator designed for high-efficiency, battery-powered applications.The MIC2178 operates from a 4.5V to 16.5V input and features internal power MOSFETs that can supply up to 2.5A output current. It can operate with a maximum duty cycle of 100% for use in low-dropout conditions. It also features a shutdown mode that reduces quiescent current to less than 5µA.

The MIC2178 achieves high efficiency over a wide output current range by operating in either PWM or skip mode. The operating mode is externally selected, typically by an intelligent system, which chooses the appropriate mode according to operating conditions, efficiency, and noise requirements. The switching frequency is preset to 200kHz and can be synchronized to an external clock signal of up to 300kHz.

The MIC2178 uses current-mode control with internal current sensing. Current-mode control provides superior line regulation and makes the regulator control loop easy to compensate. The output is protected with pulse-by-pulse current limiting and thermal shutdown. Undervoltage lockout turns the output off when the input voltage is less than 4.5V.

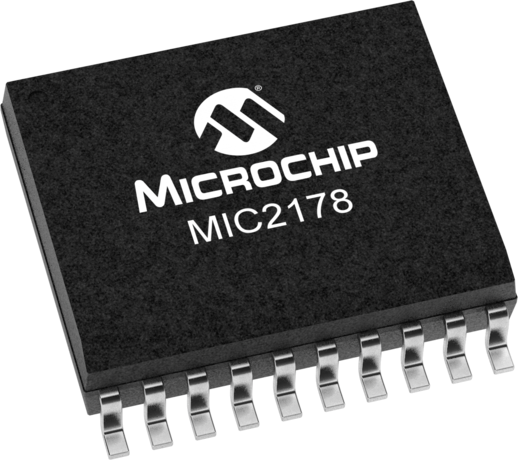

The MIC2178 and is packaged in a 20-lead wide power SOIC package with an operating temperature range of -40°C to +85°C.

See the MIC2177 for automatic selection of PWM or skip-mode operation.

Additional Features
    • 4.5V to 16.5V input voltage range
    • Dual-mode operation for high efficiency (up to 96%)
      • PWM mode for > 200mA load current
      • Skip mode for < 200mA load current
    • 100mΩ internal power MOSFETs at 12V input
    • 200kHz preset switching frequency
    • Low quiescent current
      • 1.0mA in PWM mode
      • 600µA in skip mode
      • < 5µA in shutdown mode
    • Current-mode control
      • Simplified loop compensation
      • Superior line regulation
    • 100% duty cycle for low dropout operation
    • Current limit
    • Thermal shutdown
    • Undervoltage lockout
Parametrics
Name
Value
Regulator Type
Step Down (Buck)
# of Outputs
1
Input Voltage Range Min (V)
4.5
Input Voltage Range Max (V)
16.5
Output Voltage Range Min (V)
1.245
Output Voltage Range Max (V)
16.5
Output Current (mA) max
2500
Quiescent Current (mA) typ
0.6
Switching Frequency (kHz)
200
Synchronous Rectifier
Yes
Operating Temp Range
-40 to 85
Vfb (V)
1.245
Duty Cycle Max (%)
1
SHUTDOWN Current (µA) (Typ)
1
Light Load Efficiency Mode
Yes

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2178YWM-TR
0.542000
0.311875
20
SOIC
.300in
Matte Tin
e3
MIC2178-3.3YWM
0.542000
0.973684
20
SOIC
.300in
Matte Tin
e3
MIC2178-3.3YWM-TR
0.542000
0.311875
20
SOIC
.300in
Matte Tin
e3
MIC2178-5.0YWM
0.542000
0.973684
20
SOIC
.300in
Matte Tin
e3
MIC2178-5.0YWM-TR
0.542000
0.311875
20
SOIC
.300in
Matte Tin
e3
MIC2178YWM
0.542000
0.973684
20
SOIC
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
