We offer a full line of Module Adapter Boards (MABs) and gate driver cores that can be used to develop a fully functional gate driver solution. Our gate driver adapter boards cover a wide range of Silicon Carbide (SiC) power modules across the leading SiC topologies. Find the right combination using our selection tool below.

Gate Driver Cores

Software-configurable ±Vgs gate voltages
Patented Augmented Switching™ technology
Robust short circuit protection
High immunity to noise

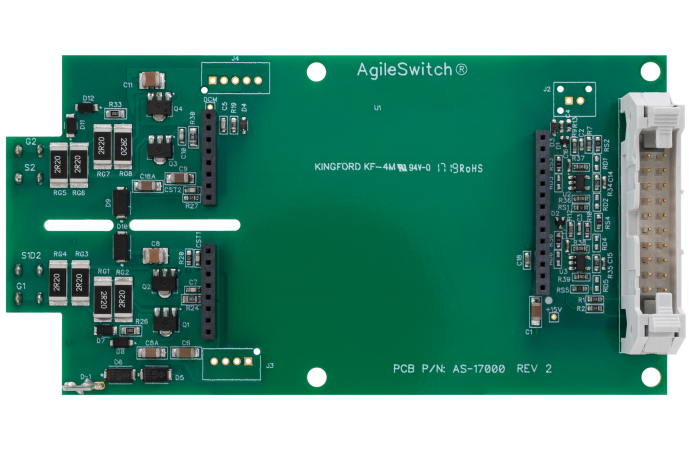

Module Adapter Boards

Compatible with a 2ASC series gate driver core
Compatible with a specific type of SiC device
Designed for evaluation purposes only

Digital Driver Core Augmented Switching Capabilities

2ASC-12A2HP 1200V multi-level turn-on and turn-off
2ASC-12A1HP 1200V multi-level turn-off
2ASC-17A1HP 1700V multi-level turn-off

Find the Right Driver Core Board and MAB

Select the SiC module manufacturer to find compatible gate driver boards.

Module Adapter Board	Driver Core	Voltage	Manufacturer	Module Part Number	Configuration	R_DS(on)(mΩ)
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Microchip	MSCSM120AM027CD3AG	Half-Bridge	2.7
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Microchip	MSCSM120AM027CT6AG	Half-Bridge	2.7
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Microchip	MSCSM120AM042CD3AG	Half-Bridge	4.2
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Microchip	MSCSM120AM042CT6AG	Half-Bridge	4.2
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Microchip	MSCSM120AM13CD3AG	Half-Bridge	13
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Infineon	FF2MR12KM1P	Half-Bridge	2
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Infineon	FF2MR12KM1	Half-Bridge	2
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Infineon	FF3MR12KM1P	Half-Bridge	3
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Infineon	FF3MR12KM1	Half-Bridge	3
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Infineon	FF6MR12KM1P	Half-Bridge	6
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Infineon	FF6MR12KM1	Half-Bridge	6
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Semikron	SKM500MB120SC	Half-Bridge	3.8
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Semikron	SKM350B120SCH15	Half-Bridge	5.6
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Semikron	SKM350B120SCH17	Half-Bridge	5.6
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Starpower	MD300HFC120C2S	Half-Bridge	4
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Starpower	MD300HFR120C2S	Half-Bridge	5
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Starpower	MD400HFR120C2S	Half-Bridge	5
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Starpower	MD200HFR120C2S	Half-Bridge	6.7
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Starpower	MD120HFR120C2S	Half-Bridge	10
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Wolfspeed	CAB530M12BM3	Half-Bridge	2.6
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Wolfspeed	WAB400M12BM3	Half-Bridge	3.25
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Wolfspeed	WAB300M12BM3	Half-Bridge	4
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Wolfspeed	CAS300M12BM2	Half-Bridge	4.2
62CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Wolfspeed	CAS120M12BM2	Half-Bridge	13
62CA2	2ASC-12A2HP 2ASC-12A1HP	1200	Wolfspeed	CAS480M12HM3	Half-Bridge	2.29
62CA2	2ASC-12A2HP 2ASC-12A1HP	1200	Wolfspeed	CAS325M12HM2	Half-Bridge	3.7
62CA2	2ASC-12A2HP 2ASC-12A1HP	1200	Wolfspeed	CAB760M12HM3	Half-Bridge	1.33
62CA4	2ASC-17A1HP	1700	Microchip	MSCSM170AM039CT6AG	Half-Bridge	3.9
62CA4	2ASC-17A1HP	1700	Microchip	MSCSM170AM039CD3AG	Half-Bridge	3.9
62CA4	2ASC-17A1HP	1700	Microchip	MSCSM170AM058CD3AG	Half-Bridge	5.8
62CA4	2ASC-17A1HP	1700	Microchip	MSCSM170AM058CT6AG	Half-Bridge	5.8
62CA4	2ASC-17A1HP	1700	Starpower	MD300HFC170C2S	Half-Bridge	3.3
62CA4	2ASC-17A1HP	1700	Starpower	MD200HFR170C2S	Half-Bridge	8.7
62CA4	2ASC-17A1HP	1700	Wolfspeed	CAS300M17BM2	Half-Bridge	8
62CA4	2ASC-17A1HP	1700	Semikron	SKM260MB170SCH17	Half-Bridge	8.1
62CA4	2ASC-17A1HP	1700	Starpower	MD250HFR170C2S	Half-Bridge	10.4
EDCA1	2ASC-12A2HP 2ASC-12A1HP	1200	Rohm	BSM600D12P3G001	Half-Bridge	3
EDCA1	2ASC-12A2HP 2ASC-12A1HP	1200	Rohm	BSM400D12P3G002	Half-Bridge	4.5
EDCA1	2ASC-12A2HP 2ASC-12A1HP	1200	Rohm	BSM300D12P3E005	Half-Bridge	5.6
EDCA1	2ASC-12A2HP 2ASC-12A1HP	1200	Rohm	BSM400D12P2G003	Half-Bridge	5.8
EDCA1	2ASC-12A2HP 2ASC-12A1HP	1200	Rohm	BSM300D12P2E001	Half-Bridge	7.3
EDCA1	2ASC-12A2HP 2ASC-12A1HP	1200	Rohm	BSM180D12P2E002	Half-Bridge	12
SP6CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Microchip	MSCSM70AM025CT6LIAG	Half-Bridge	2.5
SP6CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Microchip	MSCSM120AM02CT6LIAG	Half-Bridge	2.1
SP6CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Microchip	MSCSM120AM03CT6LIAG	Half-Bridge	2.5
SP6CA1	2ASC-12A2HP 2ASC-12A1HP	1200	Microchip	MSCSM120AM042CT6LIAG	Half-Bridge	4.2
SP6CA3	2ASC-17A1HP	1700	Microchip	MSCSM170AM029CT6LIAG	Half-Bridge	2.9
SP6CA3	2ASC-17A1HP	1700	Microchip	MSCSM170AM058CT6LIAG	Half-Bridge	5.8
XMCA1	2ASC-12A2HP 2ASC-12A1HP	1200	Wolfspeed	CAB450M12XM3	Half-Bridge	2.6
XMCA1	2ASC-12A2HP 2ASC-12A1HP	1200	Wolfspeed	CAB425M12XM3	Half-Bridge	3.2
XMCA1	2ASC-12A2HP 2ASC-121HP	1200	Wolfspeed	CAB400M12XM3	Half-Bridge	5.3

Complete Development Kits Reduce Time to Market

Our SiC development kits enable fast device characterization and prototyping while reducing design resource investment. Included are gate driver core boards, MABs, hardware programmers and software.
