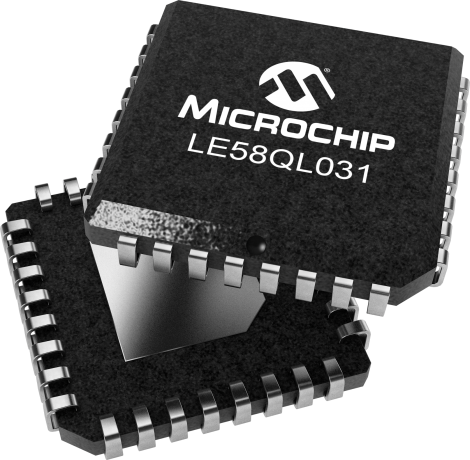

LE58QL031

Codec/Filter SLAC Device

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Microchip's cost-effective, software-programmable solution is the Le58QL02/021/031 QLSLAC and the Le58QL061/063 QLSLAC line of DSP-based voice codec/filters. The four-channel QLSLAC devices handle the analog-to-digital and digital-to-analog conversion, filtering, compression and expansion functions required to interface a telephone's analog voice signals to the digital PCM highway or General Circuit Interface (GCI).

Additional Features
  • Low-power, 3.3 V CMOS technology with 5-V tolerant digital inputs
  • Software and coefficient compatible to the Le79Q02/ 021/031 QSLAC device
  • Performs the functions of four codec/filters
  • Software programmable
    • SLIC device input impedance
    • Transhybrid balance
    • Transmit and receive gains
    • Equalization (frequency response)
    • Digital I/O pins
    • Programmable debouncing on one input
    • Time slot assigner
    • Programmable clock slot and PCM transmit clock edge options
  • Standard microprocessor interface
  • A-law, µ-law, or linear coding
  • Single or Dual PCM ports available
    • Up to 128 channels (PCLK at 8.192 MHz) per PCM port
    • Optional supervision on the PCM highway
  • 1.536, 1.544, 2.048, 3.072, 3.088, 4.096, 6.144, 6.176, or 8.192 MHz master clock derived from MCLK or PCLK
  • Built-in test modes with loopback, tone generation, and µP access to PCM data
  • Mixed state (analog and digital) impedance scaling
  • Performance guaranteed over a 12 dB gain range
  • Real Time Data register with interrupt (open drain or TTL output)
  • Supports multiplexed SLIC device outputs
  • Broadcast state
  • 56 kHz or 293 kHz chopper clock for SLIC devices with switching regulator
  • Maximum channel bandwidth for V.90 modems
Parametrics
Name
Value
Application
Access Networks Quad SLAC
Series
VE580
Loop Length
Long
SOC Interface
PCM/MPI
Number of Ports
4
