Building Block Solutions - Voltage References
Key Features

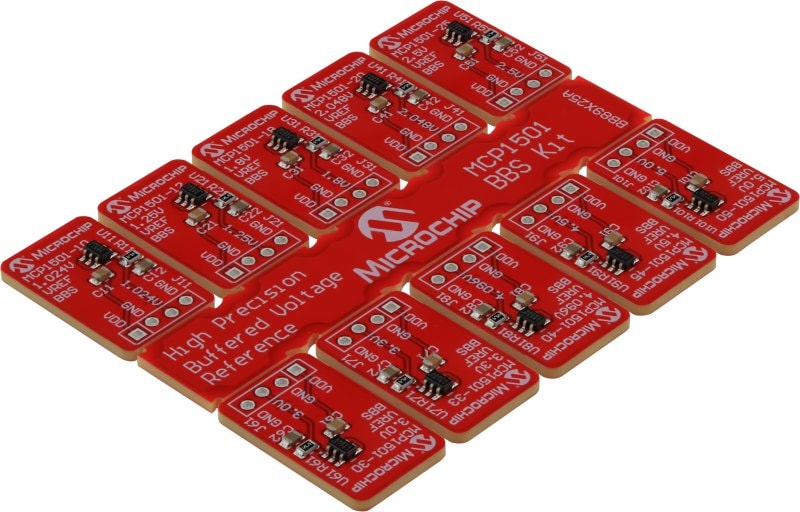

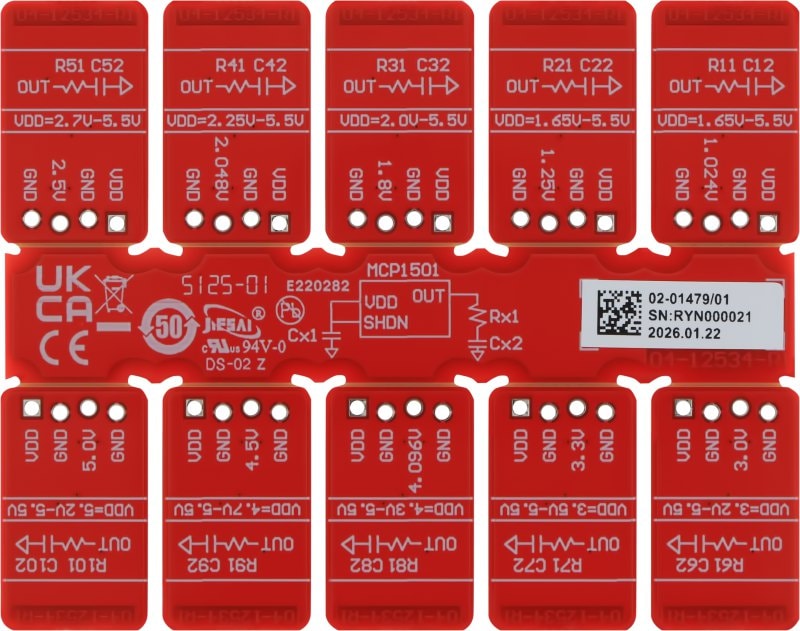

The BB89X25A MCP1501 Voltage Reference BBS KIT provides 10 different voltage reference devices. This BBS kit configuration allows users to seamlessly integrate individual boards into existing systems or configure multiple boards for diverse application requirements. This flexibility enables rapid prototyping, system expansion, and customized solutions for various applications.
- Eleven modular boards, each integrating a variety of analog and mixed‑signal devices
- Flexible configuration options, including:
- Amplifier → Low‑Pass Filter → High‑Pass Filter (series chain)
- High‑precision, buffered voltage reference
- Wheatstone bridge or load‑cell measurement configuration
- Thermocouple reference design
- Plug‑and‑play modules for rapid prototyping
- Staggered connectors that eliminate the need for soldering pin headers
