PolarFire® FPGAs for the Industrial Edge

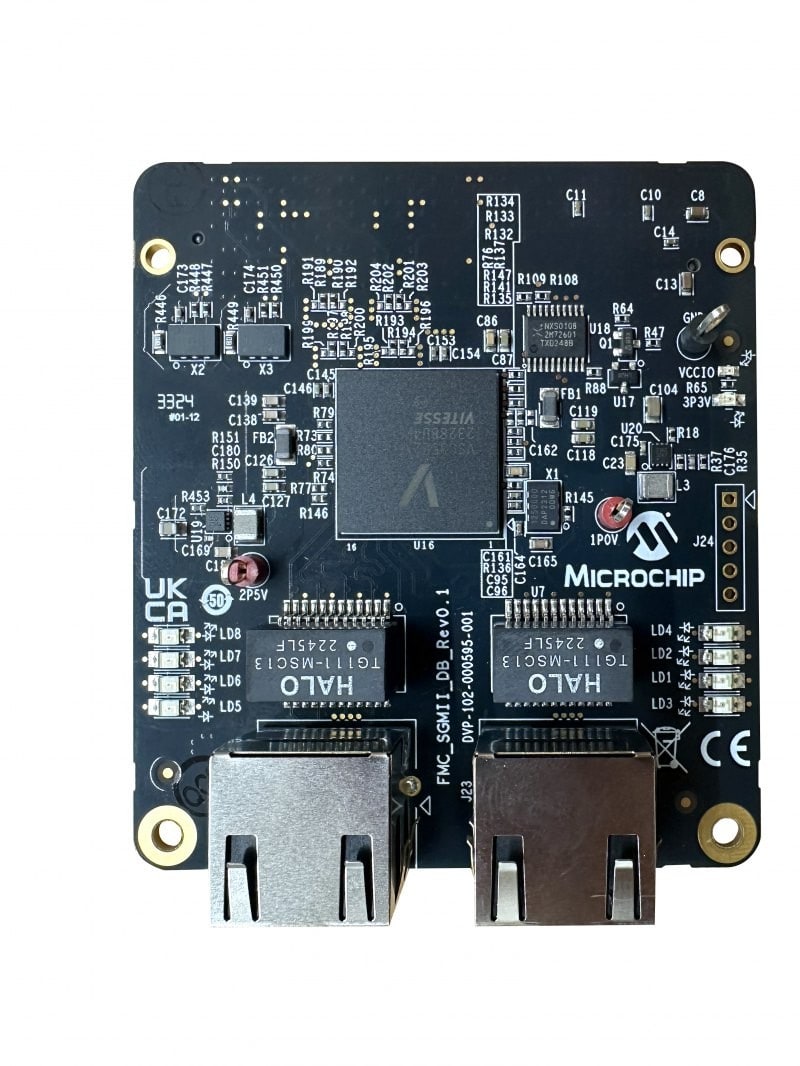

PolarFire® SoC FPGAs With Time-Sensitive Networking (TSN) Transform the Way Intelligent Systems Communicate

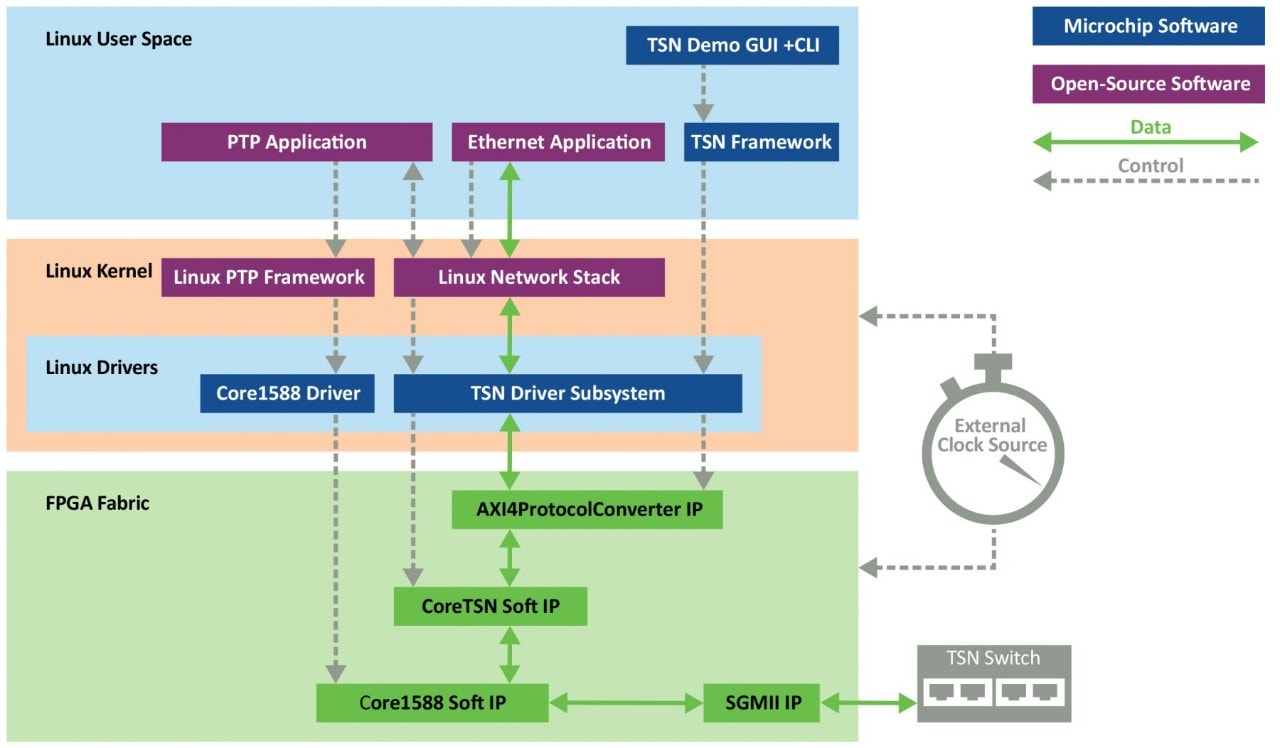

Our TSN endpoint solution combines CoreTSN soft IP, which supports traffic shaping, frame preemption and per-stream filtering, with a full Linux®-based TSN software stack that includes PTP and network drivers, all running directly on our PolarFire SoC FPGA. Integrated OPC UA over TSN provides standardized, secure and vendor-neutral communication between devices that enables interoperability across industrial systems.

TSN Features

  • 1 Gbps TSN stand-alone Ethernet endpoint
  • Time-aware scheduler: IEEE 802.1Qbv
  • Precision Time Protocol (PTP): IEEE 802.1 1588, 802.1AS
  • Frame preemption: IEEE 802.1Qbu
  • Per-stream filtering and policing: IEEE 802.1Qci
  • Linux® drivers for TSN and IEEE 1588

OPC UA Implementation

  • Client-server architecture
  • Integration with the UaExpert® client

Other FPGA Solutions We Offer

FPGAs for Smart Robotics

FPGAs for Medical Imaging

FPGAs for Edge AI

Supported Families and IP Licensing Requirements

Features1G TSN Endpoint IP
Supported FamiliesPolarFire SoC
Licensing Requirements

The encrypted IP and Libero® license are free to use.

Click here to learn about Libero licensing.

RTLContact us
Key IP FeaturesLearn more about 1G TSN endpoint IP.

Evaluation Options

Summary

Evaluation Options

Kits Required for Evaluation

Short Description

Additional Requirements

Supported Families*

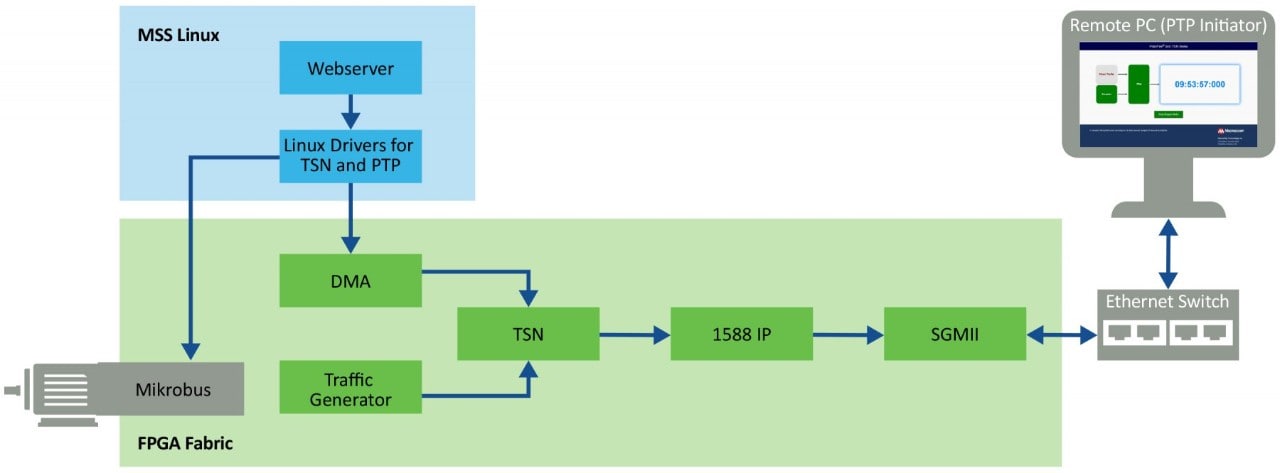

Motor Control With TSN

PolarFire® SoC FPGA Motor Control Kit + LAN9668 TSN Switch

Talker/listener TSN design in which the talker controls the listener, driving the BLDC motor under mixed-normal and critical traffic

Linux® PC as PTP (802.1AS) time master; LabVIEW GUI control and monitoring via serial; in-fabric packet generator for best-effort traffic

PolarFire SoC FPGA family

Motor Control With TSN

  • Two motor control kits running a TSN talker/listener architecture
  • Talker controls the listener driving the BLDC motor
  • Mixed-critical and best-effort traffic over TSN
  • GUI-based motor control and monitoring
Explore the IP
View the Application Note

Evaluation Hardware

PolarFire® SoC Motor Control Kit

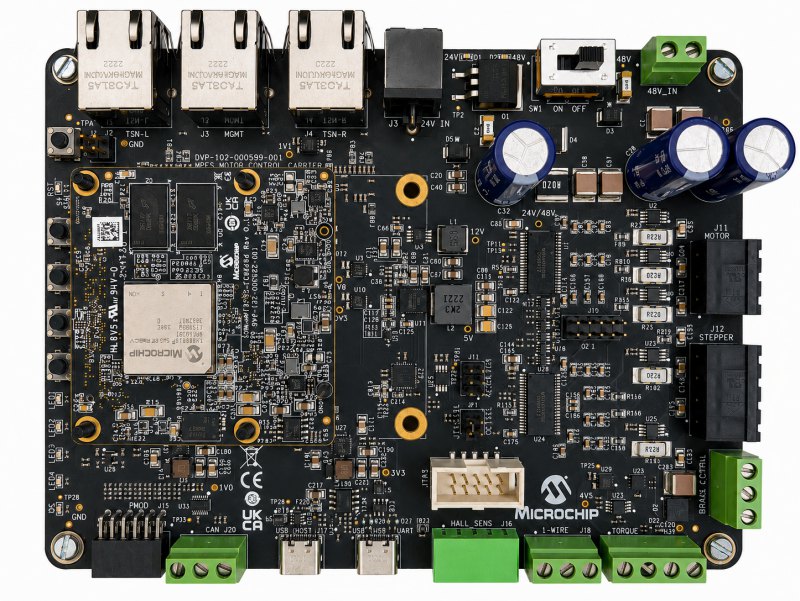

The PolarFire SoC FPGA Motor Control Kit is a complete motor-control development platform that combines FPGA-based real-time control, embedded processing, rich motor and sensor interfaces, TSN-enabled networking and integrated debug capabilities to enable rapid development of industrial, robotics and aerospace motor control applications.

Learn More

White Paper: Leveraging TSN and OPC UA With PolarFire SoC FPGAs to Transform Industrial Automation

This paper presents a TSN-enabled OPC UA solution on PolarFire SoC FPGAs, enhancing real-time industrial automation over standard Ethernet. It demonstrates improved performance—latency, jitter and bandwidth—while controlling a motor and streaming video and the potential of TSN for smarter, more efficient manufacturing.

Download the White Paper
