Overview
The PolarFire® SoC FPGA Motor Control Kit enables sensor and sensorless FOC for BLDC motors using deterministic FPGA-based control. The solution includes motor-control IP, current sensing, configurable control loops, a web-based GUI, Linux software stack, and reference designs to accelerate evaluation and development. Everything needed to get started—including programming files, application notes, BSPs, drivers, GUI, and motor-control IP—is provided out of the box.

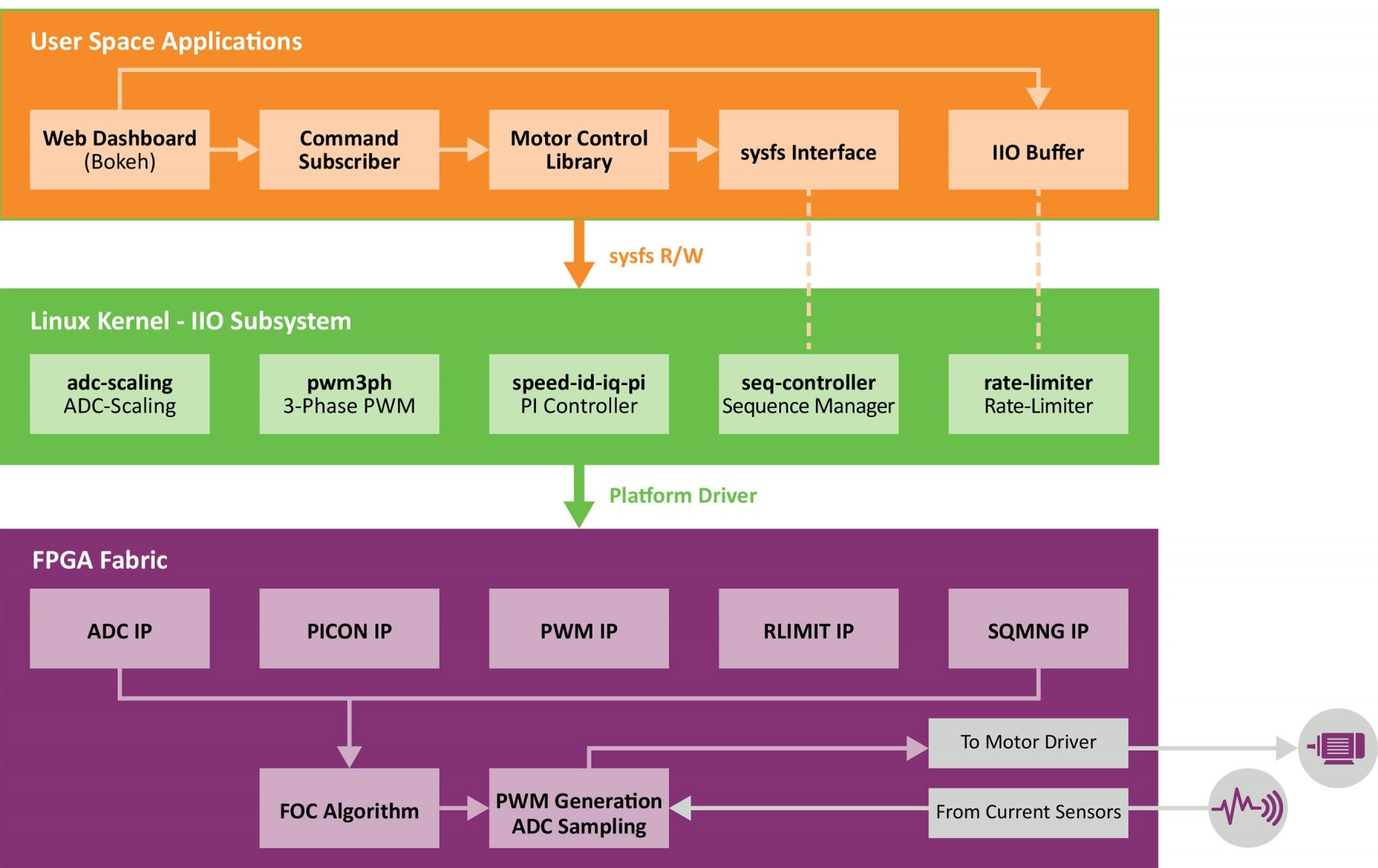

PolarFire SoC Motor Control Kit Block Diagram
PolarFire SoC Motor Control Kit Demo Setup
A sensorless BLDC motor-control demo on the PolarFire SoC, showcasing FOC-based speed/torque control, current sensing, rotor-position estimation, and smooth PWM motor operation.
- PolarFire® SoC FPGA (MPFS095) motor-control platform
- 3-phase motor control header, stepper motor interface, DC motor drivers, brake control, torque input interface
- 1 µs control loops for deterministic real-time performance
- Native QEI encoder interface, Hall sensor interface, resolver sensor connector, 1-Wire sensor interface support
- Real-time current and voltage sensing with ADS7952 ADCs, and Rate Limiter IP for acceleration and deceleration.
- Browser-based GUI with live speed, torque and current monitoring
- TSN-ready networking with dual Gigabit Ethernet TSN ports
- Complete out-of-box software stack, reference design and documentation
- Free encrypted motor-control IPs with Libero® licenses
- PolarFire SoC Motor Control Kit (Carrier + SoM)
- BLDC Motor with 3-terminal Motor Connector
- 24 Power Supply
- RJ45 Ethernet Cable
- USB Type-C Cable
- Quickstart Card
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| PolarFire SoC Motor Control Kit Application Note | Application Notes | Link | ||
| PolarFire SoC Motor Control KIT Schematics | Schematics | Download | ||
| PolarFire SoC Motor Control KIT Statement of Volatility | Information Sheets | Download |
