dsPIC33CK MC0 Value Line DSCs
dsPIC33CK MC0 Value Line DSCs With Real-Time Performance for Cost-Sensitive Control Designs

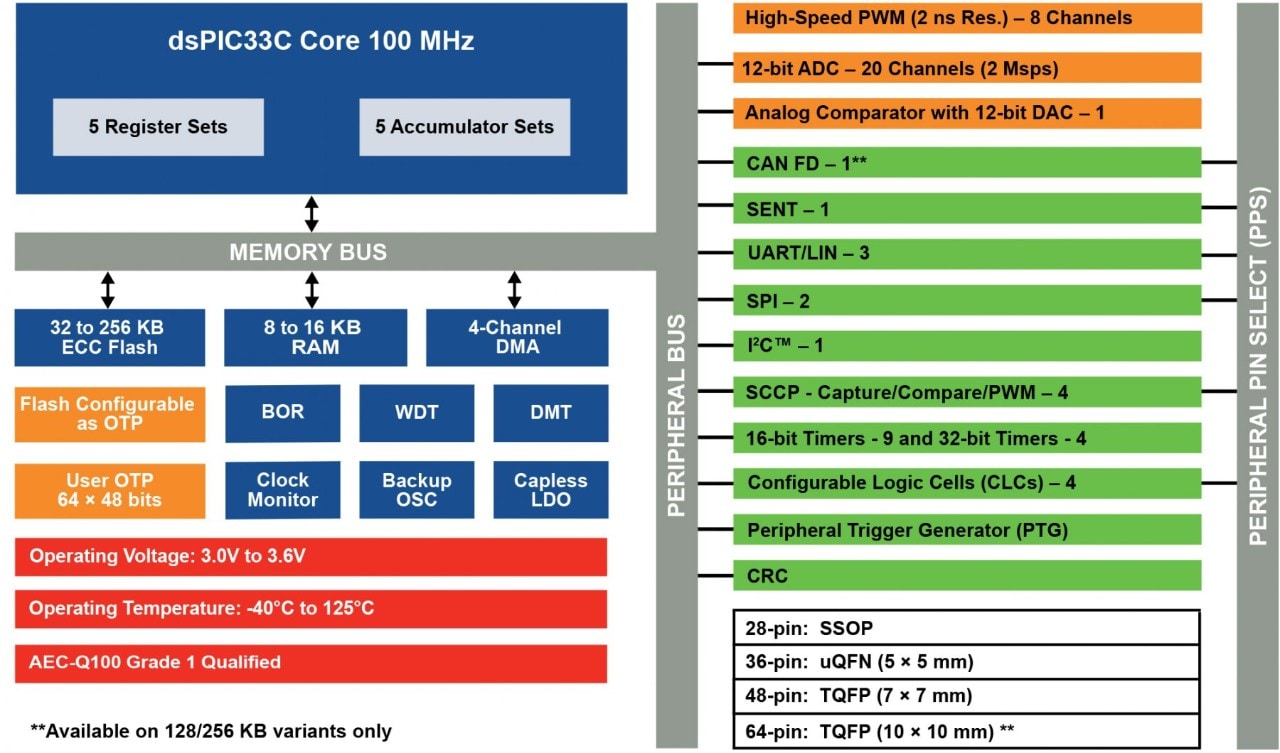

Block Diagram
dsPIC33CK Value Line Design Benefits
Real-Time Performance
Up to 100 MHz core; high-resolution PWMs and fast, 12-bit ADCs
Balanced Peripheral Integration
Reduced external components and lower Bill of Materials (BoM) cost
Efficient Multi-Function Execution
DSP engine handles sensing, conditioning and control loops
Scalable Platform
Memory scalability from 32 KB to 256 KB and full dsPIC33CK compatibility
Rapid Prototyping
MPLAB® ecosystem, with the low-cost Curiosity Nano Evaluation Kit, accelerates development
Target Applications
- Motor control
- Advanced sensing and control
- Touch and Human-Machine Interface (HMI)
- Consumer and home appliances
- Industrial and factory automation
- Automotive (entry ECU, sensors/actuators)
Tools and Software
- Demo & Evaluation Boards
- Development Environment
This Curiosity Nano evaluation kit provides an easy access to all features of the dsPIC33CK256MC005 DSC for rapid prototyping of your custom design.
This Dual-Inline Module (DIM) features our dsPIC33CK256MC006 64-pin TQFP Value Line Digital Signal Controller (DSC). It can be used to evaluate the entire family of dsPIC33CK Value Line devices for motor control applications.
MPLAB X IDE is a highly configurable software platform that provides powerful, free tools for developing, debugging and qualifying embedded designs that use microcontrollers and digital signal controllers.
The MPLAB XC-DSC C Compiler is a full-featured, optimizing compiler that translates standard ANSI C programs into Digital Signal Controller (DSC) device assembly language sources. This compiler also supports many command-line options and language extensions that allow full access to the DSC device hardware capabilities and gives users fine control of the compiler code generator.
MPLAB Code Configurator supports 8-bit, 16-bit and 32-bit PIC® microcontrollers. MCC is incorporated into both the downloadable MPLAB X Integrated Development Environment (IDE) and the cloud-based MPLAB Xpress IDE.
