SAM L10 and SAM L11 Microcontrollers (MCUs)

Ultra Low-Power SAM L10 and SAM L11 Microcontrollers

With the increasing growth of Internet of Things (IoT) end points and, consequently, the increased frequency of security breaches, designers are looking for MCUs that can help reduce power consumption while adding robust security. The SAM L10 and SAM L11 families of MCUs take an innovative approach to solving these challenges by integrating a wide variety of peripherals, including security features, into the industry's lowest-power MCUs in their class. This allows you to develop secured applications without the battery constraints of less power-efficient MCUs. These MCUs run at 32 MHz with memory configuration of up to 64 KB Flash and 16 KB SRAM. They come in three variant options, SAM L10, SAM L11 and SAM L11-KPH, and boast ultra-low power consumption as well as an enhanced Peripheral Touch Controller and advanced analog features. Both families of MCUs come in 24- and 32-pin package options and are targeted for use in IoT and security, low-power, capacitive touch and general-purpose embedded control applications.

The SAM L11 and SAM L11-KPH add integrated hardware security. The SAM L11-KPH adds a factory-provisioned root of trust key to provide the MCU with a secure identity that can be used for developing secure IoT applications. The SAM L11 and SAML11-KPH MCUs are supported by a comprehensive security ecosystem that includes Trustonic’s Kinibi-M™ solution and Secure Thingz’ Secure Deploy™ architecture.

SAM L11 MCUs are PSA Certified™ Level 1, which assures that the best embedded security practices have been implemented for IoT products.

Robust Security

SAM L11 MCUs integrate hardware-based security and Arm^® TrustZone^® technology to help protect devices from remote attacks. To reduce your development effort and speed your time to market, they are supported by a comprehensive security solution framework that delivers an end-to-end solution, from secure key provisioning, to cloud onboarding to complete lifecycle management. IoT nodes driven by a SAM L11 provide strong resistance to remote software attacks, which increase the nodes’ reliability and avoids downtime of their critical functions. The combination of security offered by Arm TrustZone for ARMv8-M and additional hardware-enforced security will help protect your devices from cloning and intellectual property theft. The SAML11-KPH also includes an immutable identity and Kinibi-M Trusted Execution Environment (TEE) for secure application development.

Secure boot
Chip-level tamper resistance on 256 Bytes of RAM
Arm TrustZone technology
True Random Number Generator (TRNG)
Crypto accelerators: Advanced Encryption Standard (AES), Secure Hash Algorithm (SHA) and Galois/Counter Mode (GCM)
Key storage
Secure pin multiplexing
Secure debug
Active shield protection on TrustRAM to resist microprobing attacks

Industry’s Lowest Power

Create extremely power-efficient designs with the SAM L10 and SAM L11, the industry’s lowest power MCUs in their class with an EEMBC certified ULPMark™ of 410. They are built with picoPower^® technology and provide flexible power saving modes. They are supported with power debugging and data visualizer tools to monitor and analyze power consumption in real time. This helps developers to rapidly optimize their system design for lower power consumption with significant improvements in battery life.

picoPower^® technology
Under 25 uA/MHz active
Under 100 nA Sleep
Fast wake up times: 1.5 μS
SleepWalking peripherals
Dual performance levels
Power domain gating
Event System
Power debugger and data visualizer tool support

Superior Capacitive Touch

Incorporate capacitive touch interfaces in your applications with these MCUs which feature an enhanced Peripheral Touch Controller (PTC), offering best-in-class water tolerance and high noise immunity. It is four times faster than the previous generation of PTC and provides highly-responsive and accurate touch sensing. It is supported by the QTouch Configurator and QTouch^® Modular Library which make it simple to add elegant touch interfaces to your applications.

Enhanced PTC
Driven Shield Plus
Parallel acquisition
Buttons, wheels, sliders and surfaces
Highly responsive and accurate
Ultra-low power
Wake-up on touch
IEC/EN 61000 4-6, 10V rms

SAML11-KPH MCU Is Both PSA and SESIP Certified

The SAML11-KPH with Kinibi-M v1.0 has been both PSA and SESIP certified. This product offers a scalable security solution from secure boot to cloud onboarding to complete device lifecycle management.

View PSA Certificate

View SESIP Certificate

220830-mcu32-bnr-saml11-kph-mcu-feature-358x205

Comparison of SAM L10, SAM L11 and SAM L11-KPH MCUs

Key provisioning solutions are available for the SAM L11 and SAM L11-KPH series of devices.

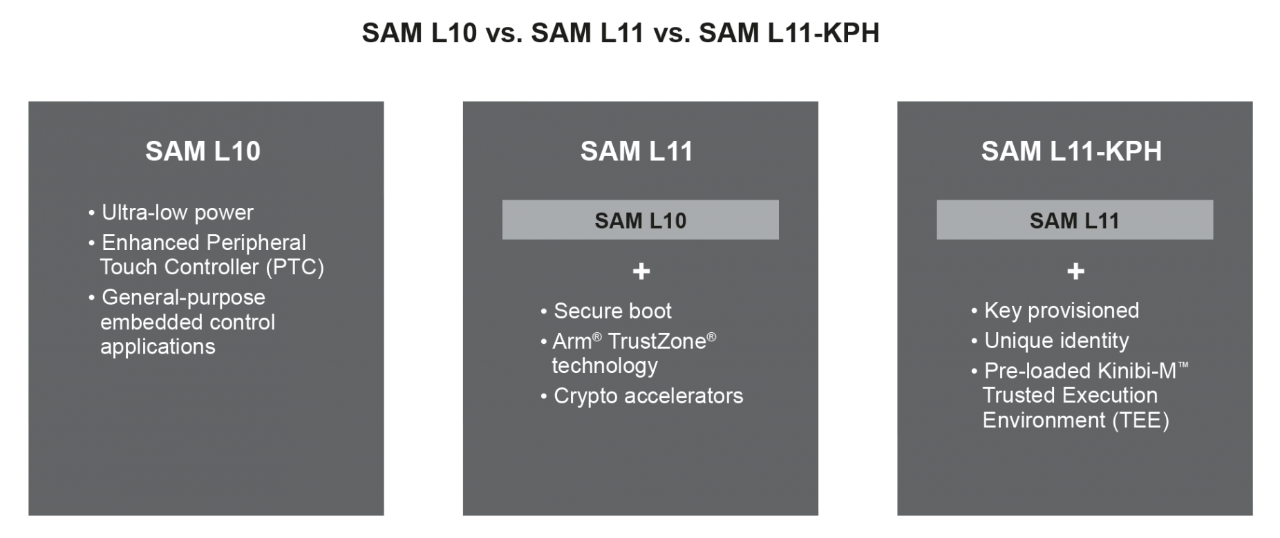

Comparison Block Diagram SAM L10, SAM L11 and SAM L11-KPH MCUs

Robust Chip-Level Security and Arm TrustZone Technology

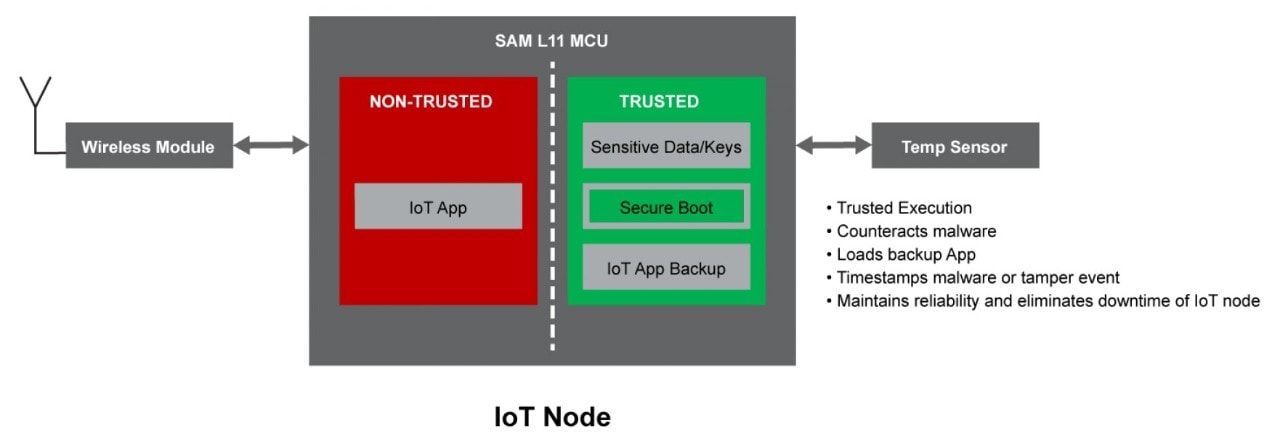

IoT nodes driven by a SAM L11 MCU provide strong resistance to remote software attacks and tampering, which increases the nodes’ reliability and avoids downtime of their critical functions.

Robust Chip-Level Security

SAM L11 MCUs were created with deeply embedded security during their silicon design phase. Robust security features include chip-level tamper resistance, active shield and scrambling on 256 bytes of TrustRAM, Boot ROM designed to facilitate secure boot, NIST-compliant TRNG, FIPS-compliant AES, scrambling on data Flash, and Arm TrustZone technology to enable hardware secure partition to facilitate IP protection, code isolation and protection from remote attacks. The active shield on 256 bytes of TrustRAM protects against physical attacks and resists microprobing attacks.

Arm TrustZone Technology

The SAM L11 incorporates Arm TrustZone technology to protect against remote software attacks. It divides the MCU into trusted and non-trusted zones and provides hardware isolation to protect keys and sensitive information from non-trusted zones.

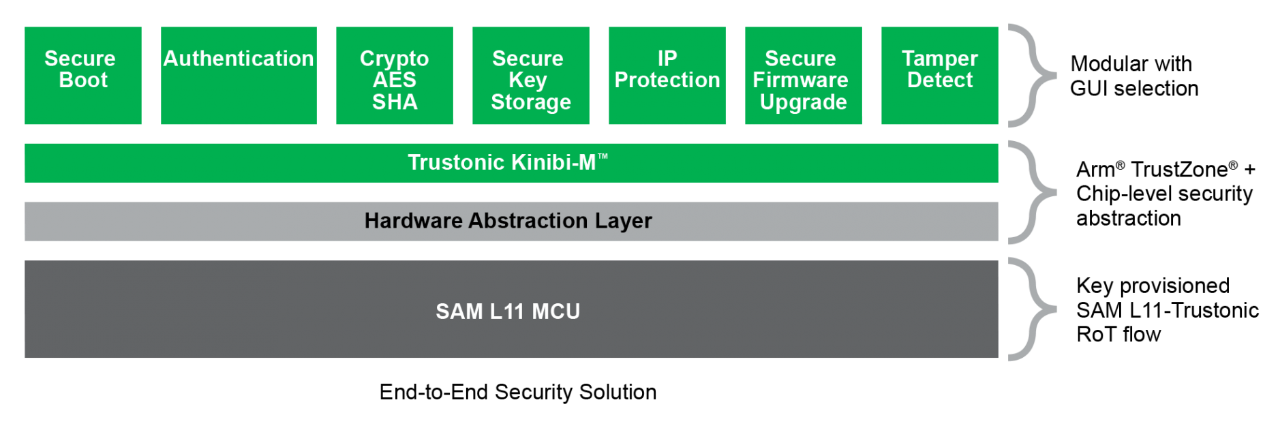

Kinibi-M: Secure Application Development Software Framework by Trustonic

SAM L11 MCUs are supported by Kinibi-M, a comprehensive security solution framework that offers an end-to-end solution, from secure key provisioning to cloud onboarding to complete device lifecycle management. It is aimed at making your applications more secure while significantly reducing your development effort and speeding your time to market.

Kinibi-M is a Trusted Execution Environment (TEE) that is designed to integrate all the SAM L11’s security features and provide a modular and easy-to-use secure application development environment. It covers most requirements, including supply chain protection, automatic cloud enrollment, device attestation and provenance and software isolation and IP protection.

Ready to Get Started with the SAM L11 and Kinibi-M?

Jump-start your secure application development with the SAML11 Xplained Pro Evaluation Kit (DM320205) and Kinibi-M. You can also download the Trustonic IoT Developer Kit, which includes a free developer SDK pack, software, demos and documentation to help you get started with building your first secure IoT solution.

External Provisioning/Programming Solutions with Secure Deploy

The SAM L11 family is fully integrated with Secure Thingz’ Secure Deploy architecture, which can be used to provision SAM L11 MCUs at secure external programming centers. The Secure Deploy architecture has been designed to enhance and simplify security implementations and enable the protection of critical Intellectual Property (IP) throughout your product’s creation, manufacture and management. It features:

Simple management of critical IP within the development process
Secure key management targeted for development, manufacturing and applications
Elimination of over-production and counterfeiting through constrained device programming

For more information about Secure Deploy and additional resources to help you get started with programming and provisioning the SAM L11 MCU, Please visit the Microchip SAM L11 page on the Secure Thingz website.

Learn More About External Provisioning on the SAM L11

Go to SAM L11 Page on Secure Thingz Website

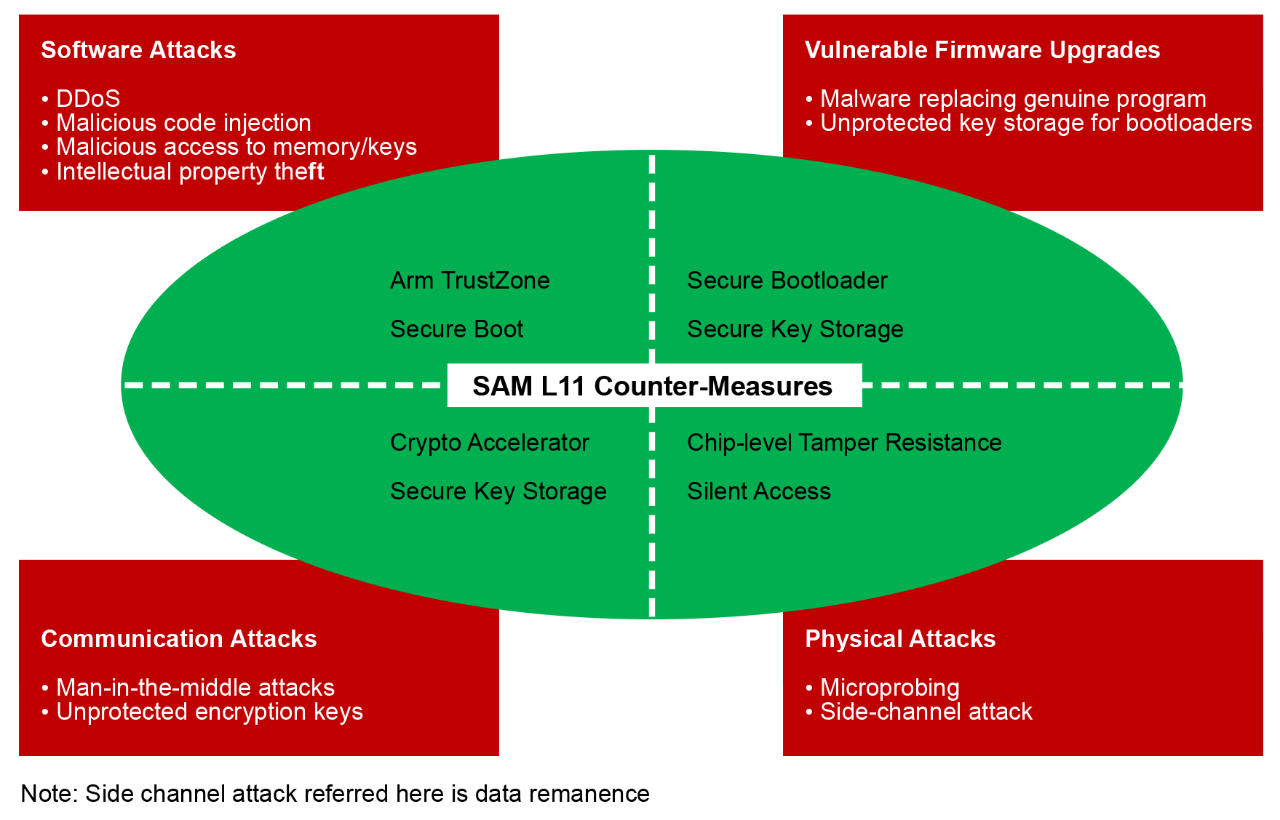

Security Threats and SAM L11’s Counter-Measures

SAM L11's Counter-Measures Block Diagram

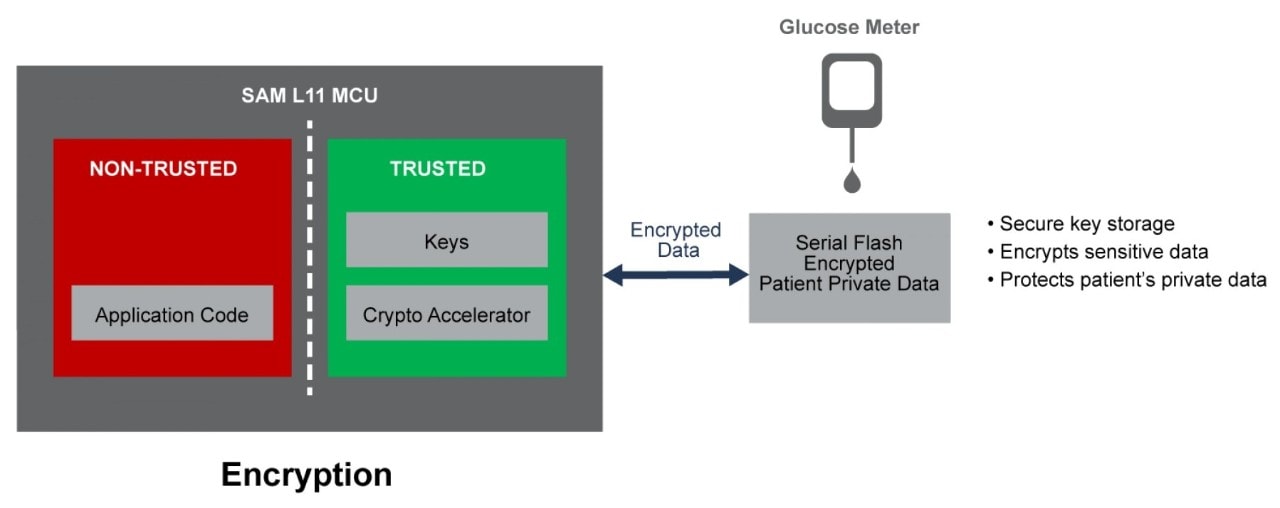

SAM L11 Security Use Cases

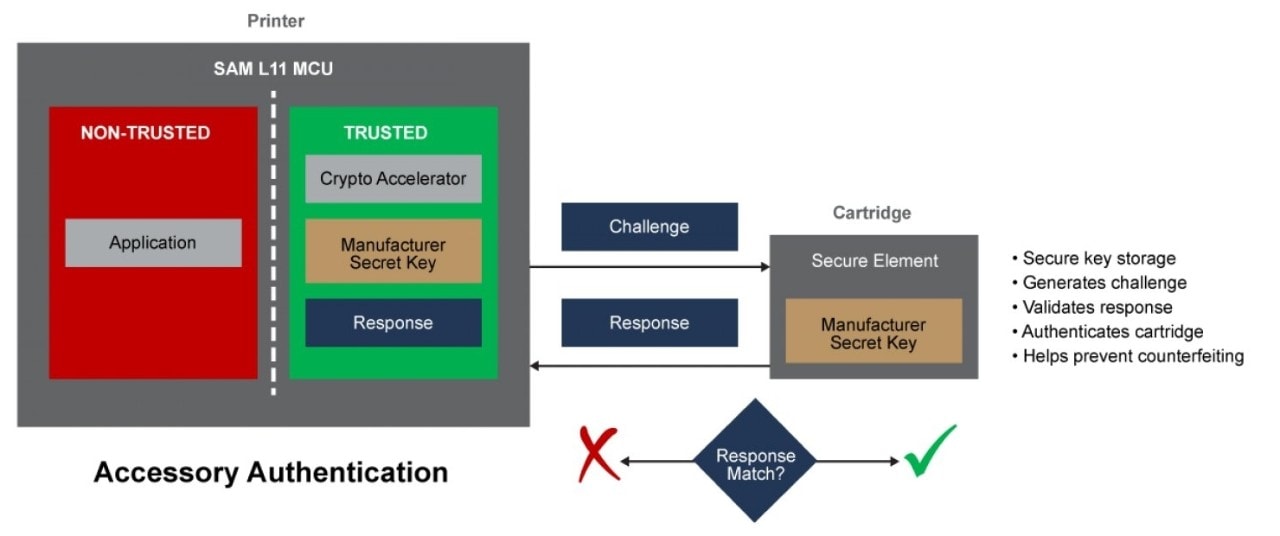

SAM L11 MCU- Accessory Authentication Block Diagram

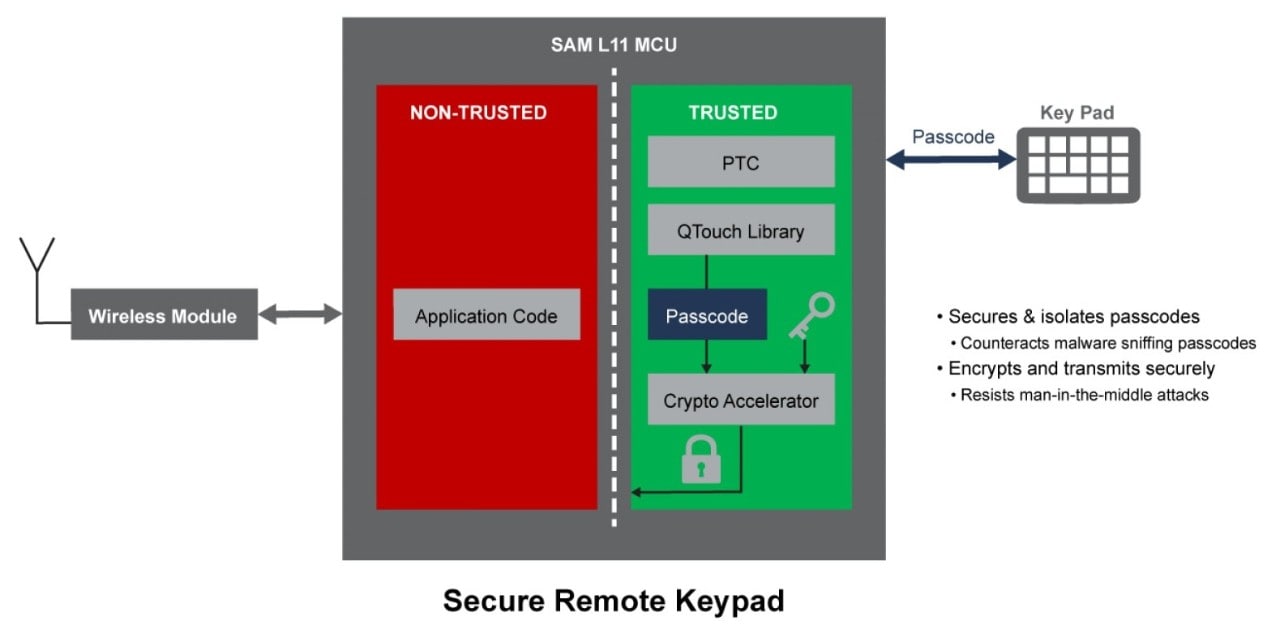

SAM L11 MCU- Secure Remote Keypad Block Diagram

picoPower^® Technology and Low-Power Techniques

Devices with picoPower technology, such as the SAM L10 and SAM L11 MCUs, are designed for the lowest possible power consumption from transistor design and process geometry, sleep modes, flexible clocking options, on-the-fly user selectable performance levels, event system to SleepWalking peripherals. This technology provides flexible power-saving techniques that enable the creation of designs with longer battery lives and lower total system costs.

Search:

Showing 1 to 5 of 5 entries

Power-Saving Techniques	Benefits
SleepWalking	Ability of the peripherals to perform a task without waking up the Central Processing Unit (CPU) from the sleep mode to maintain low power for an extended period
Power Domain Gating	Unused power domain can be switched off to reduce the sleep currents even further
Dual Performance Levels (PL0 and PL2)	Ability to change the CPU speed on the fly to suit the application activity level. Helps strike a balance between power and performance when in active mode.
Event System	Inter-peripheral communication which reduces CPU overhead and saves CPU cycles
Integrated, Low-Power Analog (Op Amps, ADC, AC, DAC)	Reduces BOM Can take inputs from sensors when in sleep

Show entries

Capacitive Touch: Superior Water Tolerance, Noise Immunity and Responsiveness

Add superior capacitive touch interfaces to your application with the SAM L10/11 family. These MCUs offer an enhanced Peripheral Touch Controller (PTC) with Driven Shield Plus and Parallel Acquisition allowing you to differentiate your designs with exceptional touch-based capabilities.

Driven Shield Plus

Driven Shield Plus offers best in class water tolerance and noise immunity. It enables touch for products in dew, sweat, rain and even running water. It can also be designed in to products that are IP-68 rated. It supports touch surfaces with pinch and zoom capabilities in the presence of water.

Parallel Acquisition

Parallel acquisition improves the responsiveness of the touch interface by acquiring multiple touch sensors simultaneously as opposed to the traditional way of acquiring them sequentially. This makes the PTC on SAM L10/11, four times faster than the previous generation of PTCs. It also filters out noise and significantly improves responsiveness of high button count touch interfaces.

The PTC on SAM L10/11 MCUs offers superior noise mitigation techniques and easily passed IEC/EN 61000-4-6 10V rms industry standard conducted immunity noise tests.

Rich Development Ecosystem

Search:

Showing 1 to 5 of 5 entries

IDE	MPLAB^® X Integrated Development Environment Microchip Studio IAR Embedded Workbench Arm^® Keil^® MDK SEGGER Embedded Studio
IDE	MPLAB^® X Integrated Development Environment Microchip Studio IAR Embedded Workbench Arm^® Keil^® MDK SEGGER Embedded Studio
Software Framework	MPLAB Harmony v3 MPLAB Harmony TrustZone^® Manager Atmel START Atmel START TrustZone Manager
Security Framework	Trustonic End-to-End Solution Support Secure Thingz Key Provisioning SEGGER emCrypt crypto-library
Low Power	Power Debugger Data Visualizer
Touch	QTouch^® Configurator QTouch Modular Library 2D Touch Surface Library

Show entries

Target Applications

Search:

Showing 1 to 1 of 1 entries

IoT and Security	Low Power	Capacitive Touch
Smart cities Home automation Industrial automation Smart agriculture Medical devices Accessories authentication	Wearables Gaming controls Energy harvesting Smart pens Low power industrial Sensor nodes	Appliances Fitness trackers Automotive door handles Steering wheel controls Key pads Remote controls

Show entries

Get Started

The SAM L10 and SAM L11 Xplained Pro Evaluation Kits are available to kick-start your development. These are fully supported with security, low-power and touch demos to accelerate your development so you can get to market faster.

All SAM L10/L11 MCUs are supported by MPLAB X and Microchip Studio Integrated Development Environments (IDEs), IAR Embedded Workbench, Arm Keil^® MDK as well as MPLAB Harmony v3 and Atmel START, which are free tools you can use to configure peripherals and software to accelerate your development. Atmel START also supports Arm TrustZone technology to configure and deploy secure applications. A power debugger and data analyzer tool is available to monitor and analyze power consumption in real-time and fine tune the consumption numbers on the fly to meet application needs. Our QTouch^® Modular Library, 2D Touch Surface Library and QTouch Configurator are also available to simplify touch development.

SAM L10 and SAM L11 Microcontrollers

View All Parametrics

Please visit the full parametric chart. If you still cannot find the chart you are looking for, please complete our Website Feedback Form to notify us of this issue.

Product	Packages	Program Memory size (KB)	Hardware Touch Peripheral	CPU Speed Max MHz (megahertz)	RAM KB (kilobyte)
PIC32CM5164LS60100	100\TQFP	512	PTC	48	64
PIC32CM5164LE00064	64\TQFP 64\VQFN	512	PTC	48	64
ATSAML10D16A	24\SSOP 24\VQFN	64	PTC	32	16
ATSAML11D16A	24\SSOP 24\VQFN	64	PTC	32	16
PIC32CM5164LS00064	64\TQFP 64\VQFN	512	PTC	48	64
PIC32CM5164LS00048	48\TQFP 48\VQFN	512	PTC	48	64
ATSAML11E15A	32\TQFP 32\VQFN	32	PTC	32	8
PIC32CM5164LS00100	100\TQFP	512	PTC	48	64

1 2 3 4

Similar Devices

View All Family Devices

No similar devices found.

Development Tools

SAM L11 Xplained Pro Evaluation Kit

Part Number: DM320205

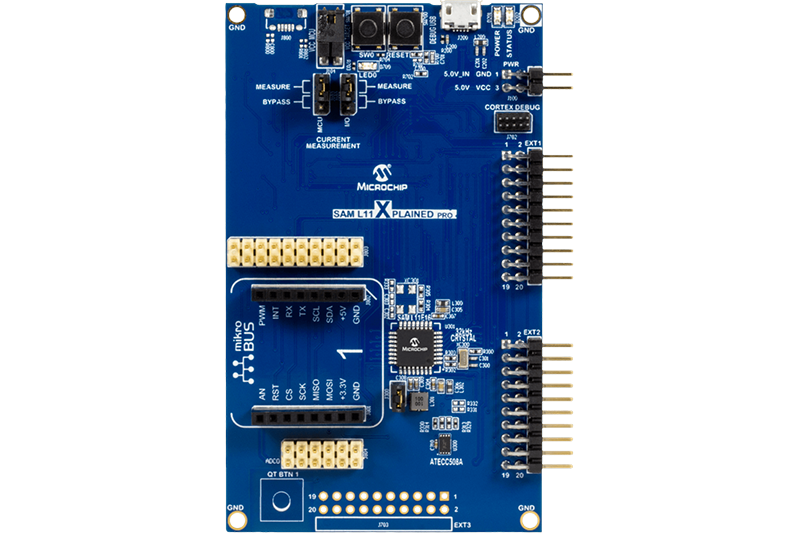

The SAM L11 Xplained Pro Evaluation Kit is ideal for evaluating and prototyping with ultra-low-power SAM L11 Arm Cortex-M23 based microcontrollers. These devices integrate robust security which includes Arm TrustZone® technology, secure boot, crypto acceleration, secure key storage and chip-level tamper detection. The SAM L11 MCU also features general-purpose embedded control capabilities with enhanced Peripheral Touch Controller and advanced analog.

Buy Now

Power Debugger

Part Number: ATPOWERDEBUGGER

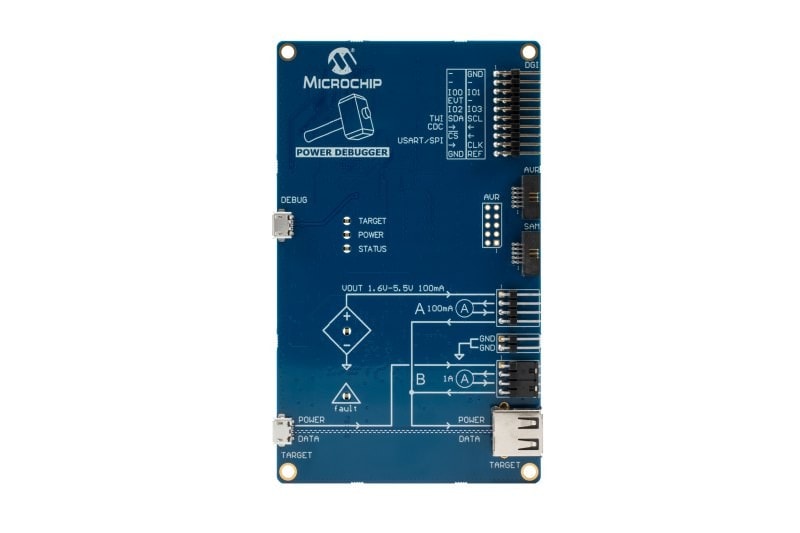

Power Debugger is a powerful development tool for debugging and programming AVR® microcontrollers using UPDI, JTAG, PDI, debugWIRE, aWire, TPI or SPI target interfaces and Arm Cortex-M based SAM microcontrollers using JTAG or SWD target interfaces.

Buy Now

QT7 Xplained Pro Extension Kit

Part Number: ATQT7-XPRO

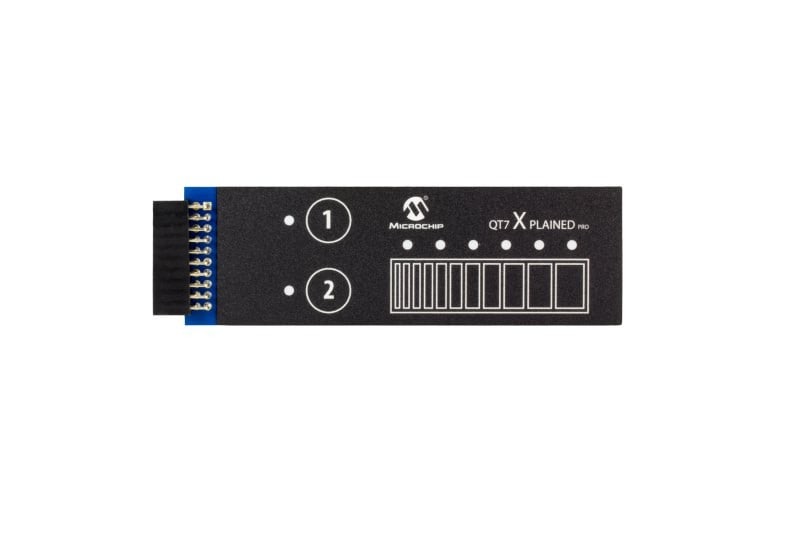

The QT7 Xplained Pro Extension Kit is an extension board to evaluate robust, water-tolerant self-capacitance touch. The kit includes one board with self-capacitance slider and two self-capacitance buttons. It also has eight LEDs to enable button state and slider position feedback.

Buy Now

I/O1 Xplained Pro Extension Kit

Part Number: ATIO1-XPRO

The I/O1 Xplained Pro Extension Kit provides a light sensor, temperature sensor and microSD card. It connects to the extension headers of any Xplained Pro Evaluation Kit.

Buy Now

SAM L10 Xplained Pro Evaluation Kit

Part Number: DM320204

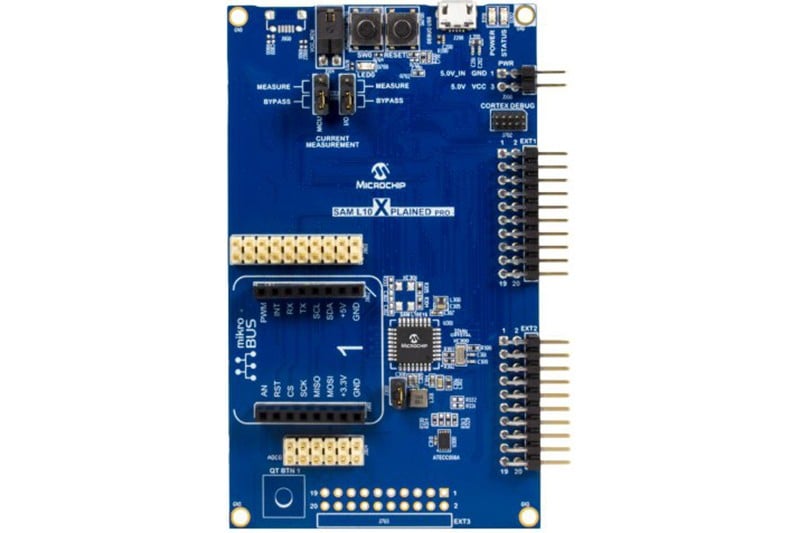

The SAM L10 Xplained Pro Evaluation Kit is ideal for evaluating and prototyping with ultra-low-power SAM L10 Arm® Cortex®-M23 based microcontrollers (MCUs). The SAM L10 MCU features general-purpose embedded control capabilities with enhanced Peripheral Touch Controller and advanced analog.

Buy Now
