RTSX-SU Radiation-Tolerant FPGAs

High-Reliability, Radiation-Tolerant, Antifuse-Based FPGAs

The RTSX-SU family is a unique product offering for space applications. RTSX-SU radiation-tolerant FPGAs feature SEU-hardened D-type flip-flops that offer the benefits of Triple Module Redundancy (TMR) without the associated overhead. Manufactured using 0.25 µm technology at the United Microelectronics Corporation (UMC) facility in Taiwan, RTSX-SU FPGAs offer levels of radiation survivability that greatly exceed those of typical CMOS devices.

Features

  • Highly reliable, nonvolatile antifuse technology
  • Low power
  • Up to 360 user-programmable I/Os
  • Hermetically sealed packages for space applications (CQFP, CCGA/LGA, CCLG)

Radiation Tolerance

  • SEU-hardened registers that eliminate the need to implement TMR
  • Immune to Single-Event Upsets (SEUs) to LETTH > 40 MeV-cm2/mg
  • SEU rate < E10-10 upsets/bit-day in worst-case geosynchronous orbit
  • Up to 100 krad (Si) Total Ionizing Dose (TID)
  • Single-Event Latch-Up (SEL) immunity

Qualification

  • QML class Q qualification
  • Heritage in many major programs including Pluto New Horizons, Juno, GOES-R and Iridium NEXT

Learn About Our Space FPGA Portfolio

Radiation and Reliability

Radiation-Tolerant FPGAs

Sub-QML FPGAs

Products

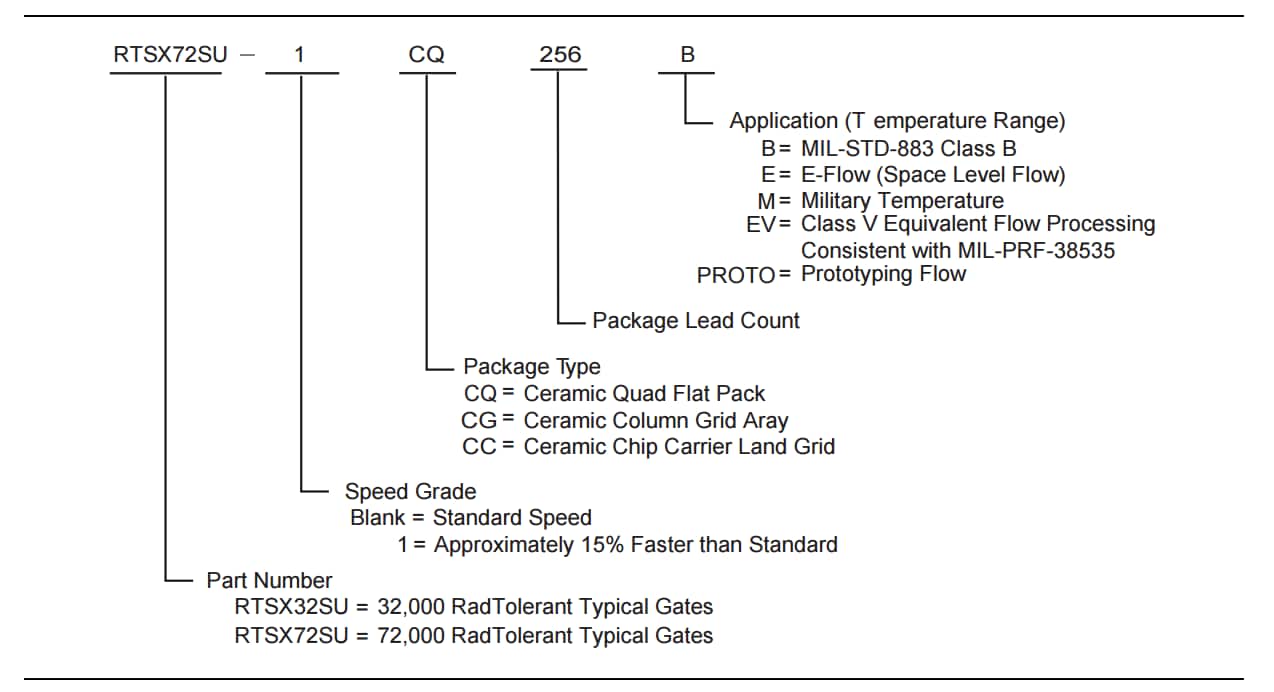

Device

RTSX32SU

RTSX72SU

Typical Gates

32,000

72,000

System Gates

48,000

108,000

Logic Modules

2,880

6,036

Combinatorial Cells

1,800

4,024

SEU-Hardened Register Cells

1,080

2,012

Maximum Flip-Flops

1,980

4,024

Maximum User I/Os

227

360

Clocks

3

3

Quadrant Clocks

0

4

Speed Grades

STD,-1

STD, -1

Qualification

B,E,M

B,E

CCGA/LGA Package

256 CCLG

624 CCGA

CQFP Package

84/208/256

208/256
