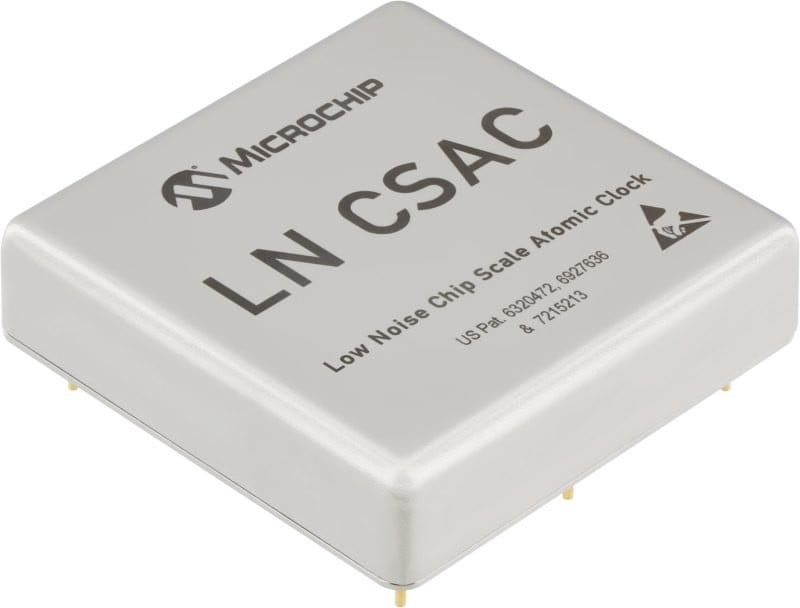

Low-Noise Chip-Scale Atomic Clock (LN-CSAC)
Low-Noise CSAC With Superior Frequency Stability
Key Features
- Accuracy and temperature stability of a CSAC
- Evacuated Miniature Crystal Oscillator (EMXO) sine wave output
- Allan Deviation (ADEV) @ 1s < 3 × 10−11
- Phase noise @ 10 Hz < −120 dBc/Hz
- Wide temperature (option −002) of −40°C to 80°C
- Height < 0.5 in (12.7 mm)
- Power < 295 mW
- Supported by Clockstudio™ software tool
Video
Learn More About the LN-CSAC
Watch this video to see how we combine a crystal oscillator and a CSAC into a single, compact device.
