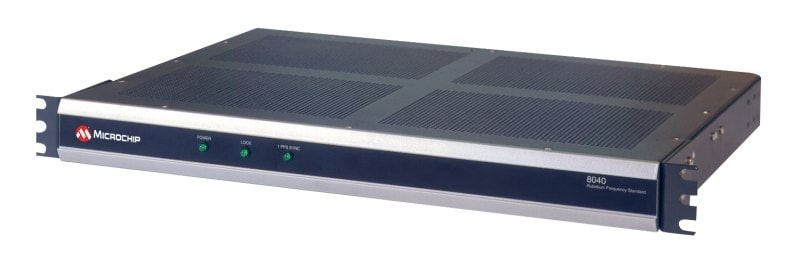

8040C Rackmount Rubidium Instrument

Download Data Sheet

8040C High-Precision Frequency Reference

The 8040C Rackmount Rubidium Standard is a high-precision frequency reference designed for demanding test and measurement applications. Its 1U rackmount chassis houses an embedded rubidium oscillator with coherent population trapping technology, ensuring superior long-term stability. With up to 12 configurable RF or 1 PPS outputs, external GPS disciplining and remote monitoring via RS-232, the 8040C offers versatility and cost effectiveness. A low-phase-noise option and plug-and-play GPS disciplining enable seamless integration into evolving systems.

Key Features

  • < 5E-11 monthly aging
  • Up to 12 configurable 1 PPS and 1, 5 and 10 MHz sinewave or TTL 50 Ω outputs
  • AC input
  • Remote monitoring and control
  • 1 PPS disciplining from externally supplied GNSS receiver

Available Models

Models Number of Configurable Outputs Noise Options
15230-101 6 Standard
15230-102 12 Standard
15230-104 6 Low Noise
15230-105 12 Low Noise
