Fully Customizable Secure Element
Network and accessories secure authentication
Overview
- Device Name:ATECC608B-TCSM
- Algorithm Type:ECC-P256 (ECDH and ECDSA), SHA256, AES128-GCM
- Standby Typical (uA):0.03
- Provisioning:TrustCUSTOM
- Interface Type:Single-wire; I2C
- Cryptographic co-processor with secure hardware-based key storage
- Protected storage for up to 16 Keys, certificates or data
- Hardware support for asymmetric sign, verify, key agreement – ECDSA: FIPS186-3 Elliptic Curve Digital Signature
- ECDH: FIPS SP800-56A Elliptic Curve Diffie-Hellman
- NIST standard P256 elliptic curve support
- Hardware support for symmetric algorithms
- SHA-256 & HMAC hash including off-chip context save/restore
- AES-128: encrypt/decrypt, galois field multiply for GCM
- Networking key management support
- Turnkey PRF/HKDF calculation for TLS 1.2 & 1.3
- Ephemeral key generation and key agreement in SRAM – Small message encryption with keys entirely protected
- Secure boot support
- Full ECDSA code signature validation, optional stored digest/signature – optional communication key disablement prior to secure boot
- Encryption/Authentication for messages to prevent on-board attacks
- Internal high-quality FIPS 800-90 A/B/C Random Number Generator (RNG)
- Two high-endurance monotonic counters
- Guaranteed unique 72-bit serial number
- Two interface options available
- High-speed single pin interface with One GPIO pin
- Operating temperature up to 100C

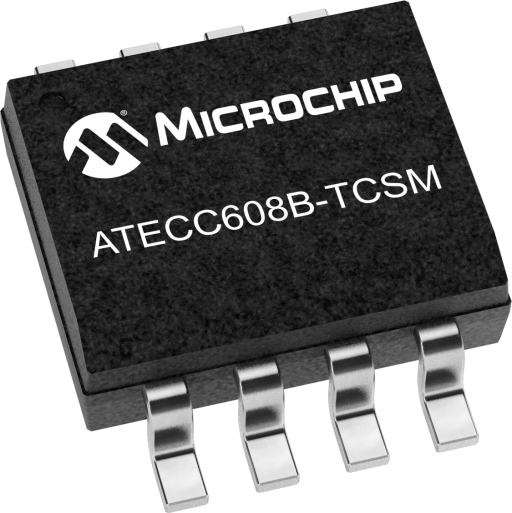

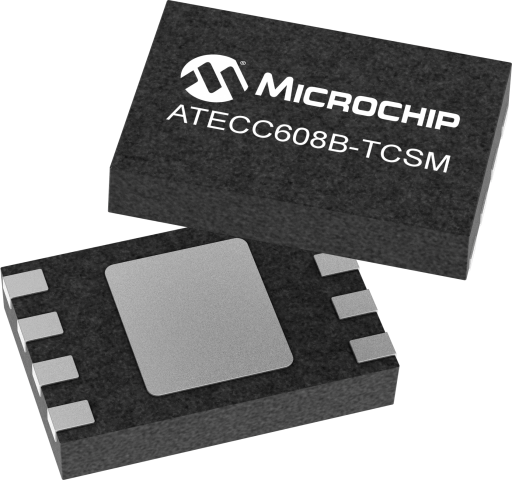

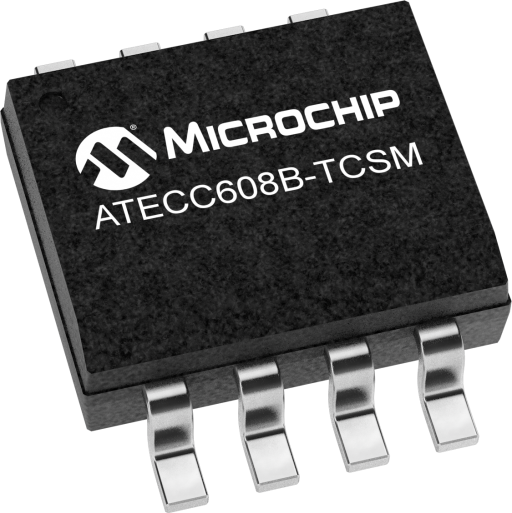

- 8-pad UDFN, 8-lead SOIC, and 3-lead CONTACT packages
- <150nA Sleep current
- 1.8V to 5.5V IO levels, 2.0V to 5.5V supply voltage
- 1MHz Standard I2C interface
- 1.8V to 5.5V IO levels, 2.0V to 5.5V supply voltage
The Microchip ATECC608B-TCSM is a secure element part of the Trust Platform for the CryptoAuthentication family. The device integrates ECDH (Elliptic Curve Diffie Hellman) security protocol an ultra-secure method to provide key agreement for encryption/decryption, along with ECDSA (Elliptic Curve Digital Signature Algorithm) sign-verify authentication. In addition, the ATECC608B offer an integrated AES hardware accelerator strengthening hardware based security for LoRaWAN applications and enable secure boot capabilities for very small microcontrollers.
The ATECC608B-TCSM offers advanced Elliptic Curve Cryptography (ECC) capabilities. With ECDH and ECDSA being built right in, this device is ideal for the rapidly growing IoT market by easily supplying the full range of security such as confidentiality, data integrity, and authentication to systems with MCU or MPUs running encryption/decryption algorithms. Similar to all Microchip CryptoAuthentication products, the new ATECC608A employs a high quality Random Number Generator, ultra-secure hardware-based cryptographic key storage and cryptographic countermeasures which eliminate potential backdoors linked to software weaknesses.
The device is agnostic of any microprocessor (MPU) or microcontroller (MCU) and compatible with Microchip AVR/ARM MCUs or MPUs. As with all CryptoAuthentication devices, the ATECCC608B-TCSM delivers extremely low-power consumption, requires only a single GPIO over a wide voltage range, and has a tiny form factor making it ideal for a variety of applications that require longer battery life and flexible form factors.
To start prototyping, please purchase a blank ATECC608B with the desired package and start coding using CryptoAuthLib Library
Cannot load image!
Not the part you were looking for?
Tools And Software
Development Environment
Demo & Evaluation Boards
Library and Firmware
| Tools |
|---|
 The Trust Platform Design Suite (TPDS) is our onboarding tool for our security-related solutions. The full onboarding experience includes, but is not limited to:
Training and education about security concepts
Prototyping, including dummy key generation and code examples, available via our interactive application notes
Access to our provisioning system through a secure sub-system configurator and secure exchange process
|
| Tools |
|---|
| The CryptoAuth Trust Platform provides a compact development solution for developing IoT solutions with the ATECC608B-TNGTLS and ATECC608B-TFLXTLS and ATECC608B-MAHDA devices or the ATECC608C equivalents.
|
| The AT88CKSCKTUDFN-XPRO is an XPRO extension board that attaches 8-pin UDFN CryptoAuthentication™ devices to Microchip MCU's that support an XPRO interface. All Microchip CryptoAuthentication™ devices regardless of interface can be used with this board. |
| The ATECC608 Trust is an add-on board for the CryptoAuth Trust Platform and other Microchip development platforms that contain a mikroBUS header For IoT Applications.
The board has ATECC608C-TFLXTLS, ATECC608C-TNGTLS, ATECC608C-TCSM and ECC608-TMNGTLS devices.
|
| The AT88CKSCKTSOIC-XPRO is an XPRO extension board that attaches 8-pin SOIC CryptoAuthentication™ devices to Microchip MCU's that support an XPRO interface. All Microchip CryptoAuthentication™ devices regardless of interface can be used with this board.
|
