Overview
This product is no longer available for sale. See alternative part: MCP1603EV

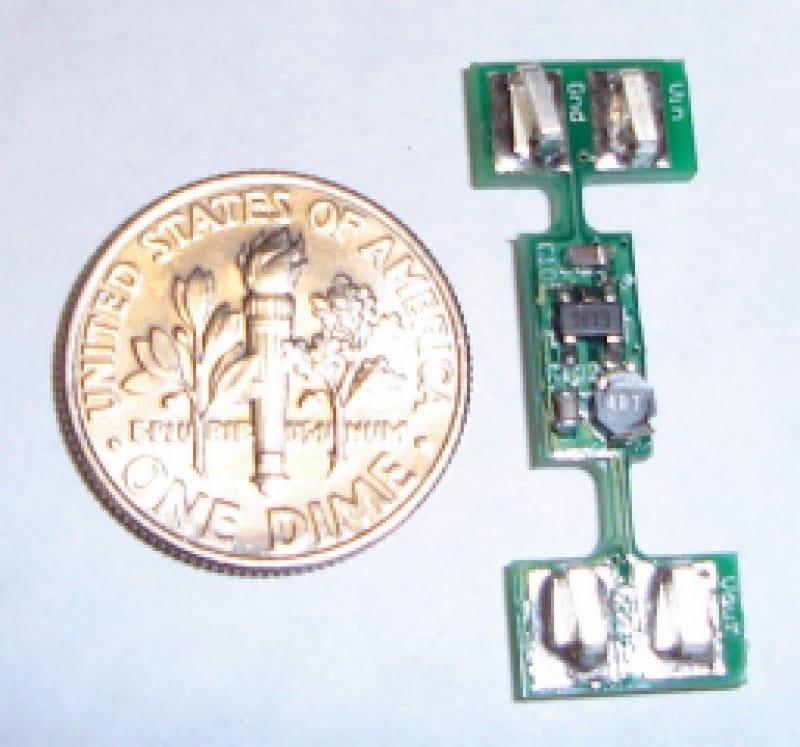

The MCP1603 Tiny Reference Design demonstrates the use of Microchip's MCP1603 device in a step-down application. The evaluation board is a fully functional platform to evaluate the MCP1603 buck regulator over the input voltage, output voltage and current range of the device. The evaluation board is designed to show off one of the main advantages of the MCP1603 - it's small size.
- Ultra compact size and low profile 500 mA converter design
- Wide Input voltage range from 2.7V to 5.5V
- Fixed output voltages: 3.3V, 1.2V, 1.8V as well as -1.2V and -1.8V (from 3.3V
- Test points for connecting input voltage source and external load
The MCP1603 Tiny Reference Design demonstrates the use of Microchip's MCP1603 device in a step-down application. The evaluation board is a fully functional platform to evaluate the MCP1603 buck regulator over the input voltage, output voltage and current range of the device. The evaluation board is designed to show off one of the main advantages of the MCP1603 - it's small size.
