Overview

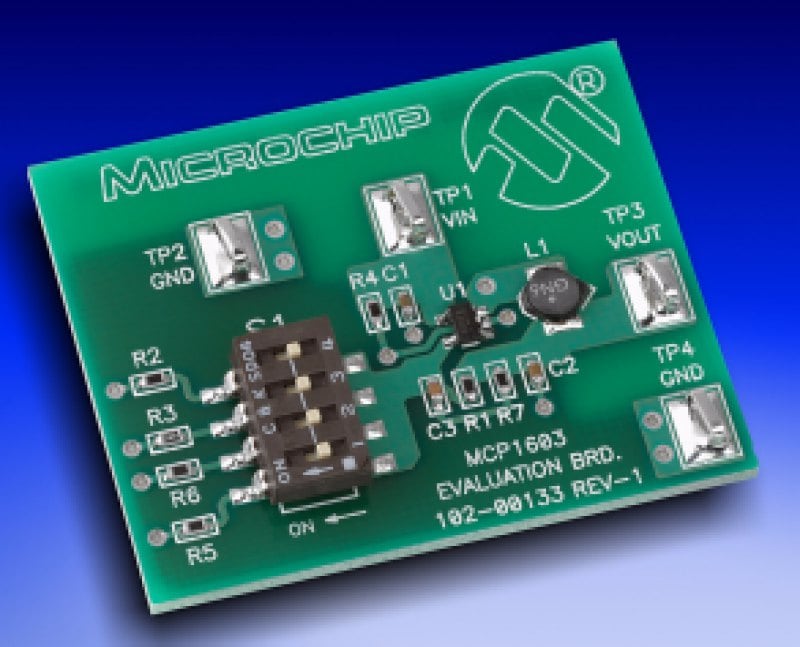

The MCP1603 Buck Converter Demo Board uses Microchip’s MCP1603 device in a step-down application. The evaluation board is a fully functional platform to evaluate the MCP1603 buck regulator over its entire input voltage, output voltage, and current range.
- Compact size and low profile 500 mA converter design
- Wide input voltage range: 2.7V to 5.5V
- Five different output voltage setting: 0.8V, 1.2V, 1.8V, 2.5V, 3.3V
- Test points for connecting input voltage source and external load
The MCP1603 Buck Converter Demo Board uses Microchip’s MCP1603 device in a step-down application. The evaluation board is a fully functional platform to evaluate the MCP1603 buck regulator over its entire input voltage, output voltage, and current range.
