2327-32mx-bt-audio-pim
2327-32mx-bt-audio-pim

Part Number: MA320022

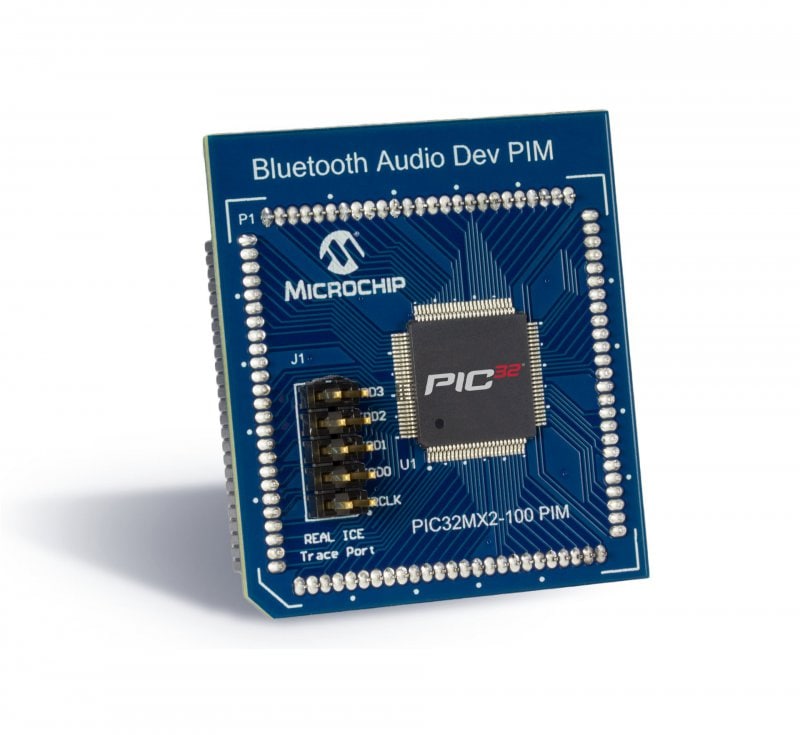

PIC32MX274F256 PIM FOR BLUETOOTH AUDIO DEVELOPMENT KIT

  • PIC32MX274F256 @ 72MHz with 256KB Flash
  • 64KB RAM and USB Device / Host / OTG

Overview

The PIC32MX254F256 Bluetooth Audio PIM is designed to demonstrate the capabilities of the PIC32MX XLP family of devices using the PIC32 Bluetooth Audio Development Kit. It enables Bluetooth and Digital Audio development with PIC32 Bluetooth Audio Development Kit.

Note: This Plug-in Module is not compatible with the Explorer 16/32 Development Board.

Package Contents
  • Plug In Module
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

DM240001-2

EXPLORER 16/32 DEVELOPMENT BOARD

The Explorer 16/32 Development Board is a low-cost modular development system for Microchip's 16-bit and 32-bit microcontrollers. It supports devices from the PIC24F, dsPIC®, and PIC32 families, with processor Plug-In Modules (PIMs) for easy device swapping. It includes a PICtail™ Plus daughter card connector for adding new functionalities.

DM240001-3

EXPLORER 16/32 DEVELOPMENT KIT

The Explorer 16/32 Development Kit is a low-cost modular development system for Microchip's 16-bit and 32-bit microcontrollers. It supports devices from the PIC24F, dsPIC®, and PIC32 families, with processor Plug-In Modules (PIMs) for easy device swapping. Kit contains 16-bit PIC24FJ1024GB610 high memory, super-set MCU PIM (MA240023) as well as necessary USB cables (Type-C and micro-B&

DM240001

EXPLORER 16 DEVELOPMENT BOARD WITH 100-PIN PIM

Recommendation for Migration:
For 'New Designs' or advanced features requirements, migrate to the refreshed and cost effective "Explorer 16/32 Development Board" with several new features. Offering backwards compatibility, the Explorer 16/32 development board facilitates seamless migration from Explorer 16 development board to the new platform.
For further details, please explore:
Explorer 16/32 Development Kit (DM240001-3): Includes the main development board, PIC24FJ1024GB610 PIM and the necessary USB cables
Explorer 16/32 Development Board (DM240001-2): Includes the main development board

The Explorer 16 Development Board is a low-cost modular development system for Microchips 16-bit and 32-bit microcontrollers. It supports devices from the PIC24F, dsPIC, and PIC32 families, with processor Plug-In Modules (PIMs) for easy device swapping. It includes a PICtail Plus daughter card con

All Application Notes

Documentation

Title
Document Id
PIC32MX274F256D Bluetooth® Audio 44-pin to 100-pinTQFP Plug-In Module (PIM) IS Download cda38c3c-ba6b-44f2-872b-1af3b232f991
