Part Number: EV89U05A

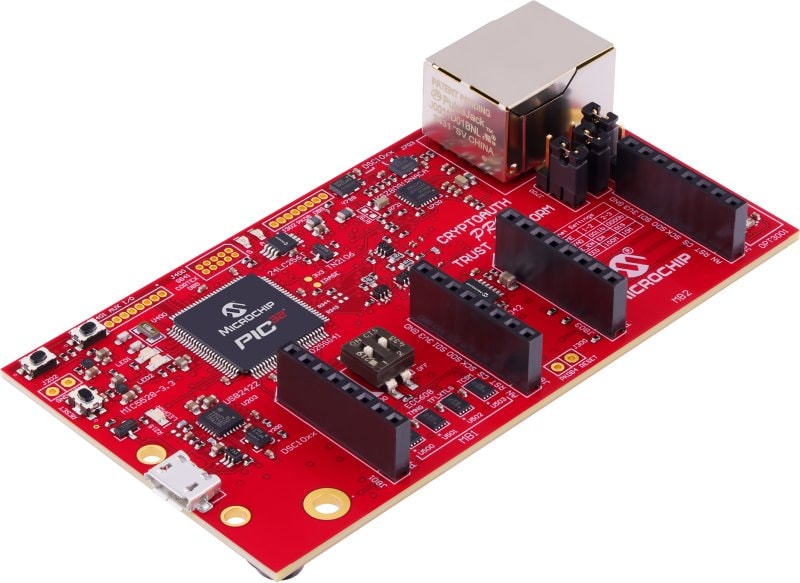

EV89U05A CryptoAuth Pro Trust Platform

Download Primary User Guide
  • PIC32CX1025SG41 Cortex 4-Core ARM Microcontroller
  • Four CryptoAuthentication™ Crypto Devices
    - ATECC608C-TFLXTLS, ATECC608C-TNGTLS, ATECC608C-TCST, ECC608-TMNGTLS
  • PKoB4 On-board debugger for programming the Microcontroller via MPLAB®  X
  • Two mikroBUS™ extension Headers to work with mikroE click boards and Microchip mikroBUS extension boards
  • KSZ8091RNACA 10/100 Mbit Ethernet PHY plus  Serial EEPROM (AT24MAC402A) with MAC address
  • I2C Temp Sensor and Light Sensor
  • Two User Programmable LEDs and Push Buttons for developing applications.
  • Dual port USB hub to allow for communication with PKoB4 on-board debugger and PIC32CX1025SG41 Microcontroller
  • Optional GPIO signals and additional footprint for 8-PIN SOIC CryptoAuthentication or CryptoAutomotive™ device
View Purchasing Options
Contact Us

Overview

The Microchip CryptoAuth Pro Trust Platform is an enhanced version of the CryptoAuth Trust Platform Board and part of the CryptoAuthentication™ evaluation kit portfolio.  The CryptoAuth Pro Trust Platform kit extends the CryptoAuth Trust Platform with a more powerful Cortex M4 microcontroller, four on-board CryptoAuthentication devices, two mikroBUS™ sockets, and an on-board 10/100 Mbit Ethernet phy. The board also contains the Microchip Technology PKoB4 debugger which is compatible with MPLAB®X IDE.   The board has been developed to work with Microchip's Trust Platform Development Suite of tools.

Package Contents
One EV89U05A CryptoAuth Pro Trust Platform Board.
System Requirements
  • MPLAB X 6.20 or higher IDE or IPE on Windows 10 or Windows 11
  • Board should be programmed with Microchip Kit Protocol Version 3.2.1 or higher.
  • Python 3.8 or later
  • CryptoAuth Library (CAL)
  • Micro USB Cable to connect between PC and development board required. (Not included)
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

TPDS

Trust Platform Design Suite

The Trust Platform Design Suite (TPDS) is our onboarding tool for our security-related solutions. The full onboarding experience includes, but is not limited to:

  • Training and education about security concepts
  • Prototyping, including dummy key generation and code examples, available via our interactive application notes
  • Access to our provisioning system through a secure sub-system configurator and secure exchange process
AC164167

TA100 8-PIN SOIC CRYPTOAUTOMOTIVE(TM) SOCKET BOARD

The TA100 8-PIN SOIC Socket board is a mikroBUS extension board used to develop applications for the TA100 CryptoAutomotiveTM device.  The board supports both I2C and SPI versions of the device.

DT100104

ATECC608 TRUST

The ATECC608 Trust is an add-on board for the CryptoAuth Trust Platform and other Microchip development platforms that contain a mikroBUS header For IoT Applications.
The board has ATECC608C-TFLXTLS, ATECC608C-TNGTLS, ATECC608C-TCSM and ECC608-TMNGTLS devices.



MIKROE-3746

SECURE UDFN CLICK

The MikroElektronica Secure UDFN click board is an 8-pad UDFN socket board that works with Microchip Security Products and the TrustPlatform Development Board

MIKROE-3788

SECURE SOIC CLICK

The MikroElektronica Secure SOIC click board is an 8-pin SOIC socket board that works with Microchip Security Products and the TrustPlatform Development Board

EV39Y17A

TA100 24-PAD VQFN Socket Kit

The EV39Y17A 24-pad VQFN Socket board is a mikroBUS extension board used to develop applications for the TA100 and TA101  CryptoAutomotiveTM device.  The board supports both I2C and SPI interfaces.

EV92R58A

EV92R58A - ECC204 mikroBUS Evaluation Board.

The EV92R58A Development board is a mikroBUS accessory board for evaluating the ECC204.  The board can readily be used with a Microchip DM320118 Trust platform host board or any MicroController board that supports a mikroBus Interface.    It is recommended that this board be used with the Microchip CryptoAuthentication Library (CAL) .

EV74C12A

EV74C12A - TA010 mikroBUS Evaluation Board

The EV74C12A Development board is a mikroBUS accessory board for evaluating the TA010.  The board can readily be used with a Microchip DM320118 Trust platform host board or any MicroController board that supports a mikroBus Interface.    It is recommended that this board be used with the Microchip CryptoAuthentication Library (CAL) .
EV97M19A

EV97M19A SHA104/SHA105 mikroBUS Evaluation Board

The EV97M19A development board is a mikroBUSTM accessory board for evaluating the SHA104 and SHA105 CryptoAuthentication Devices.  The board supports both the I2C and the SWI interface for the SHA104.  The SHA105 host side device is only available in I2C mode.

EV98D91A

EV98D91A - 2-Lead uVSFN mikroBUS Socket Board

The EV98D91A is a mikroBUSTM socket board for devices produced in a 2-Lead uVSFN contact package.   The socket board supports theparasitically powered CryptoAuthenticationTM  ECC204 and SHA106 devices. and also supports the AT21CS01.  The CryptoAuthentication devices and socket kit can be used with the Microchip Trust Platform Development tools.
