Part Number: EV57E01A

dsPIC33CK1024MP710 Motor Control PIM

  • Features the dsPIC33CK1024MP710-I/PT (100-pin TQFP) DSC
  • 100 pin PIM is compatible with the MCLV-2, MCHV-2, MCHV-3 and MCSM inverter boards
  • Supports the dsPIC33CK1024MP710 DSC family for motor control applications
  • Supports both on-chip or board mounted op amps for motor current feedback
View Purchasing Options
Contact Us

Overview

This Plug-In-Module (PIM) features a dsPIC33CK1024MP710 100-pin TQFP Digital Signal Controller (DSC) device.  It can be used to evaluate the entire family of dsPIC33CKxxxMP7xx and dsPIC33CKxxxMP4xx DSC devices for motor control applications.  It supports using both the on-chip op amps, or inverter board-based op amps for motor current feedback.  This PIM is compatible with the MCLV-2 [DM330021-2] and MCHV [DM330023-2 or DM330023-3], and MCSM [DM330022 or DM330022-1] PIM based inverter boards

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

DM330022-1

DSPICDEM™ MCSM DEVELOPMENT BOARD

The Microchip dsPICDEM MCSM Development Board is targeted to control both unipolar and bipolar stepper motors in open-loop or close-loop (current control) mode. The hardware is designed in such a way that no hardware changes are necessary for 8-, 6- or 4-wire stepper motors in either bipolar or unipolar configurations.

DM330021-2

DSPICDEM™ MCLV-2 DEVELOPMENT BOARD (MOTOR CONTROL LOW-VOLTAGE)

The dsPICDEM™ MCLV-2 Development Board provides a cost-effective method of evaluating and developing sensored or sensorless Brushless DC (BLDC) and Permanent Magnet Synchronous Motor (PMSM) 3-phase low-voltage motor control applications.

DM330023-3

DSPICDEM™ MCHV-3 DEVELOPMENT BOARD (HIGH VOLTAGE)

TThe Microchip dsPICDEM™ MCHV-3 Development Board aids in the rapid evaluation and development of a wide variety of high-voltage motor control applications. This development board is targeted to control Brushless DC (BLDC) motors, Permanent Magnet Synchronous Motors (PMSM), and AC Induction Motors (ACIM) in both sensored or sensorless operation.

DM330023-2

DSPICDEM™ MCHV-2 DEVELOPMENT BOARD (HIGH VOLTAGE)

The Microchip dsPICDEM™ MCHV-2 Development Board aids in the rapid evaluation and development of a wide variety of high-voltage motor control applications. This development board is targeted to control Brushless DC (BLDC) motors, Permanent Magnet Synchronous Motors (PMSM), and AC Induction Motors (ACIM) in both sensored or sensorless operation.  For new designs, please consider purchasing the dsPICDEM MCHV-3 Development Board for high-voltage motor control applications.

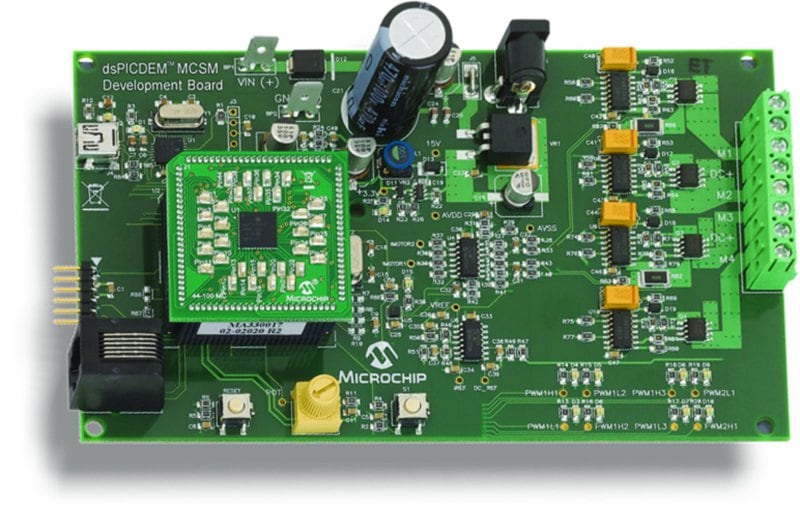

DM330022

DSPICDEM MCSM DEVELOPMENT BOARD

The Microchip dsPICDEM MCSM Development Board is targeted to control both unipolar and bipolar stepper motors in open-loop or close-loop (current control) mode. The hardware is designed in such a way that no hardware changes are necessary for 8-, 6- or 4-wire stepper motors in either bipolar or unipolar configurations.  An updated version of this board, DM330022-1, is available which includes a dsPIC33CK64MP105 PIM.

All Application Notes

Documentation

Title
Document Id
dsPIC33CK1024MP710 Motor Control Plug-In Module (PIM) Information Sheet Download ecc0302c-12da-4bac-aeaa-4186b07adc21

Application Notes

Title
Date
Document Category
AN1292 Source Code for MCLV2 and MCHV2 using dsPIC33CK1024MP710 09 Dec 2022 Application Notes
